200 Mesh Bauxite Powder Production: Complete Equipment Guide

200 Mesh Bauxite Powder Production: Complete Equipment Guide

Introduction

Bauxite, the primary ore of aluminum, is a crucial industrial mineral. Its processing into fine powders, particularly to specifications like 200 mesh (approximately 75 microns), is essential for applications in refractory materials, abrasives, ceramics, and as a proppant in the oil and gas industry. Achieving consistent fineness, high purity, and optimal particle size distribution requires a carefully selected and integrated production line. This guide provides a comprehensive overview of the complete equipment set needed for efficient and profitable 200-mesh bauxite powder production, from raw material handling to final packaging.

Understanding the Production Process Flow

The journey from raw bauxite lumps to refined 200-mesh powder follows a systematic sequence. A typical production line consists of several key stages:

1. Primary Crushing: Large bauxite rocks (up to several hundred millimeters) are reduced to a manageable size, typically below 50mm, using jaw crushers or impact crushers.
2. Intermediate Storage & Feeding: Crushed material is conveyed to a storage silo or bin, then fed at a controlled rate into the grinding system via vibrating or belt feeders.
3. Drying (Optional but often critical): If the raw bauxite has high moisture content (>5-8%), a dryer (rotary or flash dryer) is necessary to prevent clogging in the milling system and ensure grinding efficiency.
4. Fine Grinding & Classification (The Core Stage): This is the heart of the process, where the material is ground to the target fineness. A grinding mill, coupled with an efficient classifier, works to achieve the 200-mesh specification. The classifier immediately separates fine, qualified powder from coarse particles, which are returned for further grinding.
5. Product Collection & Dust Removal: The fine powder is collected using high-efficiency cyclone separators and baghouse dust collectors, ensuring a clean working environment and maximizing product yield.
6. Packaging & Storage: The finished powder is conveyed to storage silos and then packaged via valve bag packers or big bag fillers for shipment.

Core Equipment Selection for 200 Mesh Bauxite

Selecting the right grinding mill is paramount. For 200-mesh (75μm) production, several mill types are suitable, each with its own advantages in terms of capacity, energy efficiency, and footprint.

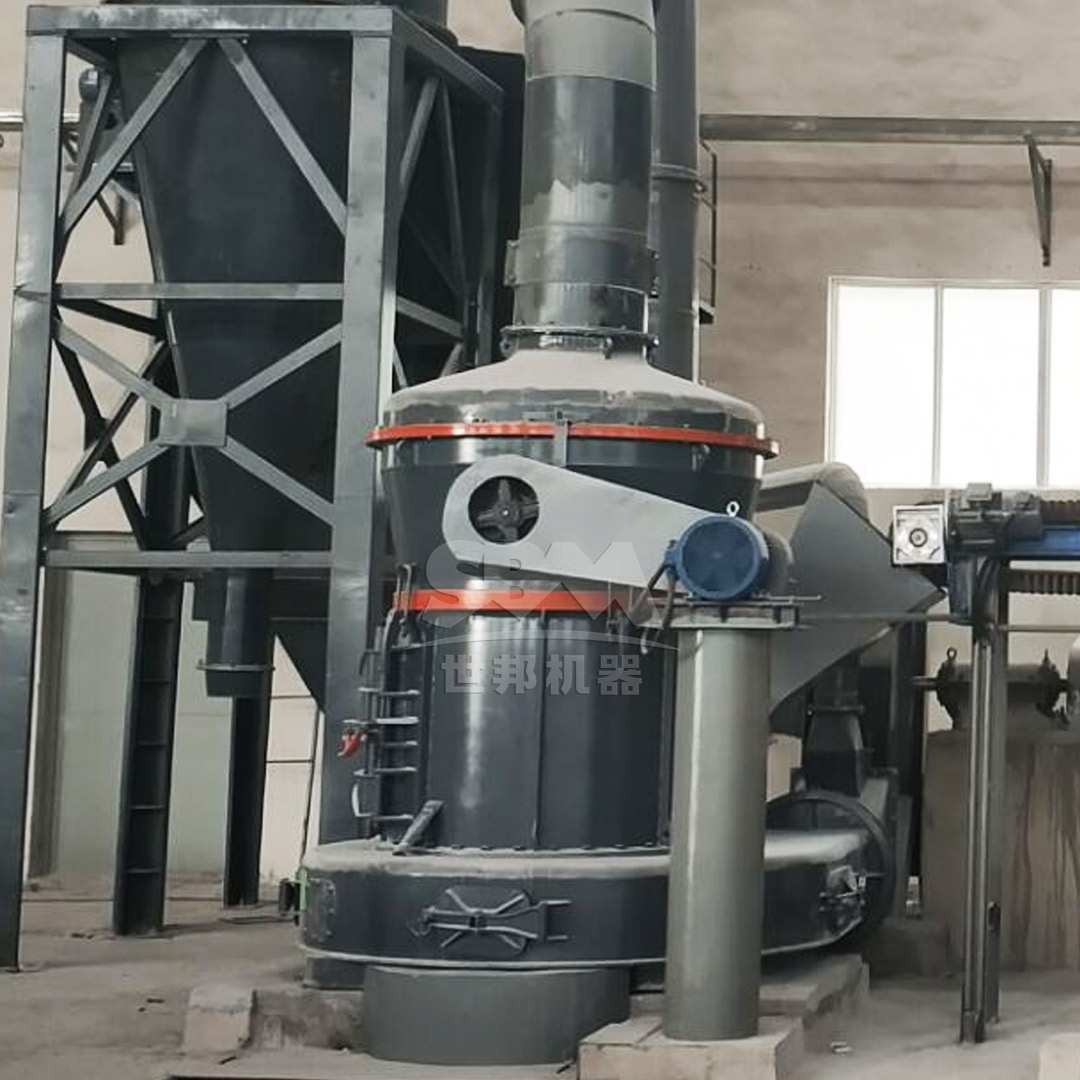

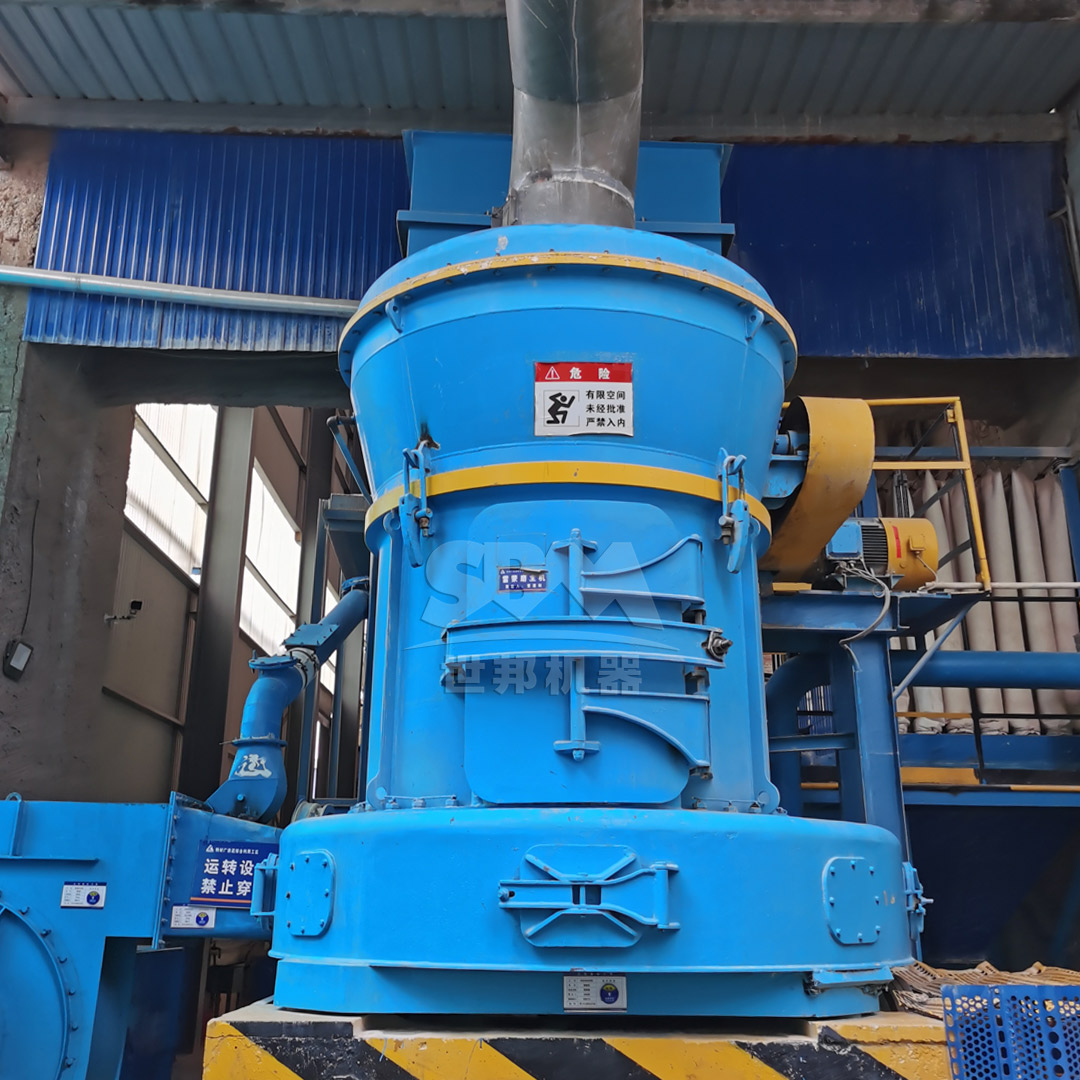

1. Raymond Mill (MTW Series European Trapezium Mill)

A traditional and highly reliable choice for medium-fineness grinding. Modern versions like the MTW series offer significant improvements in efficiency and wear resistance. They are ideal for producing powder in the range of 30-325 mesh, making 200 mesh a comfortable target.

Key Advantages for Bauxite:

• Robust Construction: Handles the moderate abrasiveness of bauxite well with its wear-resistant grinding rollers and rings.
• Excellent Classification: The integrated turbine classifier provides precise control over final product size, ensuring a consistent 200-mesh output with minimal oversize.
• High Capacity & Efficiency: Curved air duct design and efficient drive system reduce energy loss, offering high output per power unit.

For operations seeking a balance of high capacity, reliability, and precise control for 200-mesh production, our MTW215G European Trapezium Mill is a standout recommendation. With a capacity range of 15-45 tons per hour for materials like bauxite, it can handle large-scale production demands. Its integral bevel gear drive achieves 98% transmission efficiency, and the wear-resistant volute structure significantly lowers long-term maintenance costs, making it a cost-effective workhorse for bauxite processing.

2. Vertical Roller Mill (LM Series)

VRMs are renowned for their low energy consumption and integrated drying-grinding-classification process. They are excellent for large-scale production lines.

Key Advantages for Bauxite:

• Exceptional Energy Efficiency: Consumes 30-40% less power than traditional ball mills for the same output, a major operational saving.
• Integrated Drying: Can utilize hot gas to dry moist bauxite (up to 10-15% moisture) simultaneously during grinding, eliminating the need for a separate dryer in many cases.
• Compact Footprint: Its vertical design integrates multiple functions, saving significant plant space.

3. Ultrafine Mill (SCM Series)

While often associated with finer products (above 325 mesh), advanced ultrafine mills are perfectly capable of producing 200-mesh powder with superior uniformity and system stability. They represent a more advanced technological solution.

Key Advantages for Bauxite:

• Superior Product Uniformity: High-precision turbine classifiers ensure an extremely narrow particle size distribution, meaning more of your product is precisely at the desired 200-mesh specification with fewer fines or coarse particles.
• High Efficiency & Durability: Designed for harder materials, the special material rollers and rings offer extended service life when processing abrasive bauxite.
• Future-Proofing: Offers the flexibility to produce even finer bauxite powders (e.g., 325, 800 mesh) for high-value applications without major equipment changes.

For producers focused on product quality, consistency, and operational intelligence, our SCM1000 Ultrafine Mill is an excellent choice for premium 200-mesh bauxite. Its vertical turbine classifier achieves precise particle size cutting, guaranteeing a uniform final product critical for refractory and ceramic applications. The intelligent control system with automatic granularity feedback ensures stable operation and optimal output. With a capacity of 1.0-8.5 t/h for bauxite and the ability to easily adjust fineness, it provides both quality and flexibility.

Auxiliary & Supporting Equipment

A successful production line depends on more than just the main mill.

• Jaw Crusher: For primary size reduction of run-of-mine bauxite.
• Bucket Elevator/Belt Conveyor: For vertical and horizontal material transport between process stages.
• Electromagnetic Vibrating Feeder: Ensures a steady, controllable feed rate to the mill, which is crucial for stable operation and product consistency.
• Pulse Jet Baghouse Dust Collector: Essential for meeting environmental standards and recovering product. A system with >99.9% efficiency is standard.
• Control Cabinet & PLC System: Automates the entire line, monitoring motors, temperature, pressure, and feed rates for efficient and safe operation.

Key Considerations for System Design

• Bauxite Properties: Hardness (Mohs scale ~1-3), abrasiveness, moisture content, and feed size directly influence crusher and mill selection.
• Desired Capacity (TPH): This is the primary driver for equipment sizing. A clear output target is needed from the outset.
• Energy Efficiency: Grinding is energy-intensive. Opting for modern, efficient mills like the LM Vertical Mill or MTW Mill can drastically reduce operating costs.
• Automation Level: Automated control systems improve consistency, reduce labor costs, and enhance safety.
• Space Constraints: Vertical mills and integrated systems offer advantages for plants with limited floor space.
• Environmental Regulations: A fully enclosed system with an efficient dust collector is non-negotiable for modern plants.

Conclusion

Establishing an efficient 200-mesh bauxite powder production line requires a holistic approach that pairs the correct core grinding technology with robust auxiliary systems. While Raymond/MTW Mills remain a proven and cost-effective standard, Vertical Roller Mills offer superior energy savings for large-scale operations, and Ultrafine Mills deliver top-tier product uniformity for premium markets. The ultimate choice depends on a careful evaluation of production scale, capital and operating budget, product quality requirements, and long-term business goals. Partnering with an experienced equipment supplier who can provide not just machinery but a complete system design and support package is key to ensuring a profitable and sustainable bauxite powder operation.
