80 Mesh Coal Gangue Powder Grinding Mill: Equipment Selection and Production Process

80 Mesh Coal Gangue Powder Grinding Mill: Equipment Selection and Production Process

Introduction

Coal gangue, a solid waste discharged during coal mining and washing, has long been a significant environmental and disposal challenge. However, with advancements in grinding technology, processed coal gangue powder has found valuable applications in construction materials, cement production, soil improvement, and as a source of rare earth elements. Achieving a target fineness of 80 mesh (approximately 180 microns) efficiently and cost-effectively is a critical step in its valorization. This article provides a professional analysis of equipment selection and the production process for grinding coal gangue to 80 mesh powder, highlighting key technological considerations and recommending suitable milling solutions.

1. Understanding Coal Gangue and 80 Mesh Specification

Coal gangue is characterized by its variable composition, typically containing clay minerals, sandstone, shale, and carbonaceous matter. Its hardness can range from moderately soft to hard (Mohs hardness 3-6), and it often has a certain moisture content. The 80 mesh specification is a common requirement for many downstream applications, such as:

• Building Materials: As an additive in cement, concrete, bricks, and lightweight aggregates.
• Soil Amendment: Improving soil structure and providing trace minerals.
• Filler: In plastics, rubber, and asphalt.

This fineness represents a balance between achieving sufficient reactivity/surface area and managing grinding energy costs. The production process must be robust enough to handle the abrasive and potentially variable nature of the feed material.

2. Key Factors in Equipment Selection

Selecting the optimal grinding mill for 80 mesh coal gangue involves evaluating several critical parameters beyond just the target fineness.

2.1. Material Properties

• Hardness & Abrasiveness: Dictates the wear resistance required for grinding elements (rollers, rings, liners).
• Feed Size: Typically requires pre-crushing to below 30-50mm for most grinding mills.
• Moisture Content: High moisture may necessitate a drying stage or selection of a mill that can handle semi-dry grinding.
• Capacity Requirement: From pilot-scale (a few tons per hour) to large-scale industrial production (tens of tons per hour).

2.2. Grinding Technology Comparison

Different mill types offer varying efficiency, footprint, and operational cost profiles for achieving 80 mesh product.

3. Recommended Grinding Solutions

Based on the requirement for producing 80 mesh coal gangue powder with a focus on efficiency, reliability, and cost-effectiveness, two of our flagship products stand out as ideal solutions.

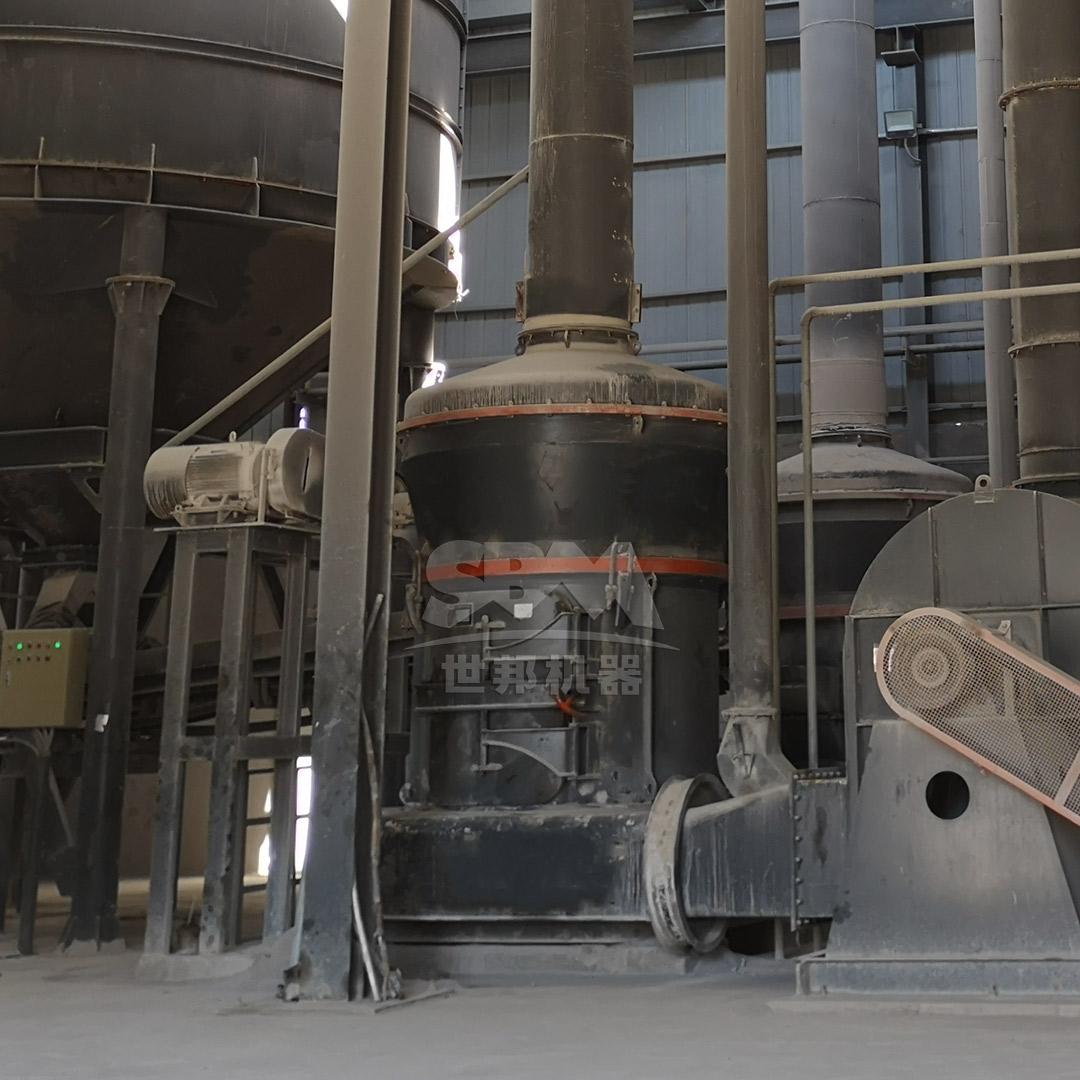

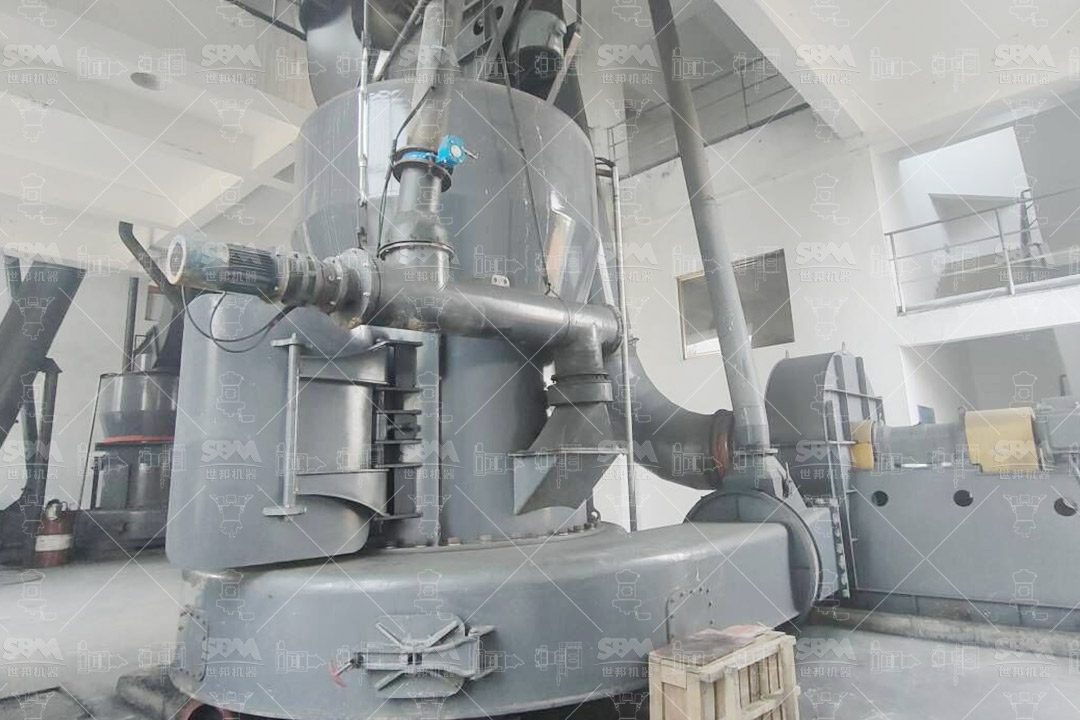

3.1. Primary Recommendation: MTW Series European Trapezium Mill

For most 80 mesh coal gangue grinding applications, the MTW Series European Trapezium Mill represents an optimal balance of performance, durability, and operational economy. Its design is particularly well-suited to handling moderately abrasive materials like coal gangue.

Why it’s ideal for 80 Mesh Coal Gangue:

• Precise Fineness Control: With an output range of 30-325 mesh, achieving a stable 80 mesh product is within its core operational sweet spot. The integral bevel gear drive and optimized classifier ensure consistent particle size distribution.
• High Efficiency & Wear Resistance: The anti-wear shovel design and wear-resistant volute structure are critical for abrasive materials. The curved grinding roller design extends service life, directly reducing maintenance costs and downtime.
• Large Capacity Range: Models like the MTW175G (9.5-25 t/h) and MTW215G (15-45 t/h) cater to medium and large-scale production needs, making it scalable for growing operations.
• Energy Saving: The arc air duct design reduces airflow resistance, and the high-efficiency transmission system contributes to lower overall power consumption per ton of product compared to traditional mills.

For a standard 80 mesh coal gangue production line with feed size below 30mm, the MTW138Z or MTW175G model would be highly recommended, offering an excellent balance of capacity (6-25 t/h) and power efficiency.

3.2. High-Capacity / Integrated Solution: LM Series Vertical Roller Mill

For projects with very large capacity requirements (e.g., exceeding 25 t/h) or where the raw coal gangue has higher moisture content requiring simultaneous drying, the LM Series Vertical Roller Mill is the superior choice.

Why it’s a powerful alternative:

• Integrated Grinding & Drying: The LM mill can utilize hot air (from a gas furnace or waste heat source) to dry moisture content up to 10-15% during the grinding process, eliminating the need for a separate dryer.
• Exceptional Energy Efficiency: Its bed grinding principle consumes 30-40% less energy than ball mill systems for the same output, offering significant long-term cost savings.
• Compact Footprint: Its integrated design reduces floor space by approximately 50% compared to a traditional ball mill system.
• Ideal for 80 Mesh: Operating reliably in the 30-325 mesh range, it can easily and efficiently maintain 80 mesh product quality. Models like the LM190K (23-68 t/h) are perfectly sized for major industrial applications.

4. The 80 Mesh Coal Gangue Powder Production Process

A typical, efficient production line involves several key stages:

1. Pre-Crushing & Screening: Raw coal gangue is first crushed by a jaw crusher or hammer mill to a size suitable for the grinding mill feed (e.g., ≤30mm for MTW Mill, ≤50mm for LM Mill). A vibrating screen may be used to ensure uniform feed size.
2. Drying (If Required): If moisture content is high (>10%) and an LM Vertical Mill is not selected, a rotary dryer is employed to reduce moisture to an optimal level (typically <5%).
3. Grinding: The pre-processed material is fed into the selected mill (e.g., MTW or LM Series). Here, it is ground to the target 80 mesh fineness. The mill’s internal classifier continuously separates fine powder, returning coarse particles for regrinding.
4. Collection & Dedusting: The fine powder carried by the airflow is collected by a high-efficiency cyclone separator. The remaining exhaust air is purified through a pulse bag filter or other dust collector to meet environmental standards before release.
5. Packaging & Storage: The collected 80 mesh coal gangue powder is conveyed to silos for storage or directly to automatic packaging machines.

5. Conclusion

Producing 80 mesh coal gangue powder is a technically and economically viable process that turns waste into a resource. The cornerstone of a successful operation is the selection of the right grinding equipment. For most applications targeting this specification, the MTW Series European Trapezium Mill offers an unbeatable combination of precision, durability, and cost-effectiveness. For mega-projects requiring integrated drying and utmost energy efficiency, the LM Series Vertical Roller Mill presents a formidable, high-capacity solution.

Investing in advanced, purpose-built grinding technology not only ensures product quality and production efficiency but also maximizes the economic return and environmental benefits of coal gangue utilization. Proper process design, coupled with robust equipment like our MTW or LM series mills, paves the way for a sustainable and profitable coal gangue processing enterprise.
