Barite Vertical Roller Mill: Efficient Grinding for High-Density Drilling Mud

Barite Vertical Roller Mill: Efficient Grinding for High-Density Drilling Mud

Introduction

Barite (barium sulfate) is a critical weighting agent in drilling mud formulations for oil and gas exploration. Its high specific gravity (4.2-4.5) increases mud density, controlling formation pressures and stabilizing boreholes. The efficiency of barite in drilling mud is highly dependent on its particle size distribution and purity. Vertical Roller Mills (VRMs) have emerged as the preferred technology for grinding barite to the required fineness for optimal performance in high-density drilling fluids. This article explores the technical advantages of VRMs in barite processing and highlights advanced solutions for modern drilling operations.

The Importance of Barite Grinding Quality

In drilling mud applications, barite must meet API (American Petroleum Institute) specifications regarding particle size, density, and chemical composition. Specifically, API requires that:

Inadequate grinding can lead to rapid settling of barite (barite sag), which causes well control issues, stuck pipe, and formation damage. VRMs excel in producing consistently fine barite powder with uniform particle size distribution, minimizing these risks.

Why Vertical Roller Mills for Barite?

Traditional grinding systems like ball mills or Raymond mills often struggle with the high density and abrasiveness of barite ore. They typically exhibit high energy consumption, excessive wear, and inconsistent product quality. VRMs address these challenges through their unique grinding mechanism:

• Material Bed Compression: VRMs utilize multiple rollers to compress a bed of barite against a rotating grinding table, achieving efficient size reduction with minimal energy.
• Integrated Classification: An internal or external classifier immediately separates fine particles from coarse ones, ensuring only product meeting the target fineness leaves the mill. This eliminates over-grinding and improves efficiency.
• Drying Capability: Hot gas can be introduced into the VRM to simultaneously dry moist barite feed, making it ideal for processing ore with inherent moisture.

Technical Advantages of VRM Technology

1. Superior Energy Efficiency

VRMs consume 30-50% less energy compared to ball mills. This is because grinding occurs by pressure applied to a material bed rather than by impact or attrition between tumbling balls, which is inherently less efficient. The power is directly used for comminution, not for rotating a heavy drum of grinding media.

2. Precise Particle Size Control

The integrated dynamic classifier in a VRM allows for real-time adjustment of product fineness. By simply changing the classifier’s rotor speed, operators can precisely control the cut point to consistently achieve the desired D97 specification of ≤ 75μm, which is crucial for API-grade barite.

3. Low Wear and Maintenance

While barite is abrasive, VRMs are designed with wear protection in critical areas. Grinding rollers and tables are often made of high-chromium cast iron or similar wear-resistant alloys. Furthermore, the direct grinding mechanism means wear parts are larger and last significantly longer than the grinding media in a ball mill, reducing downtime and maintenance costs.

4. Compact Design and Low Noise

The vertical arrangement of a VRM gives it a small footprint, reducing the required space in the processing plant. Its fully enclosed structure and modern sound-dampening technologies ensure noise levels typically remain below 80 dB, creating a better working environment.

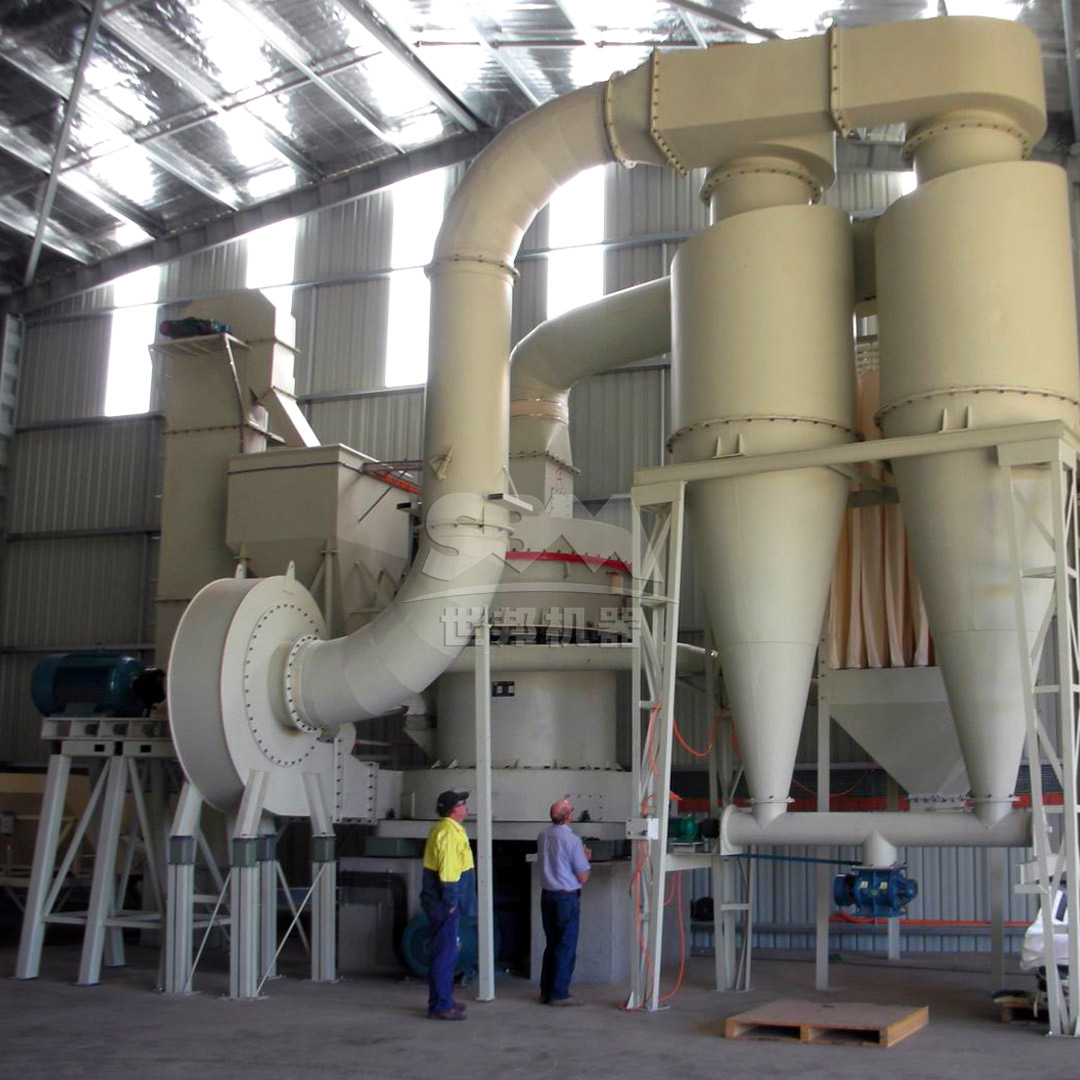

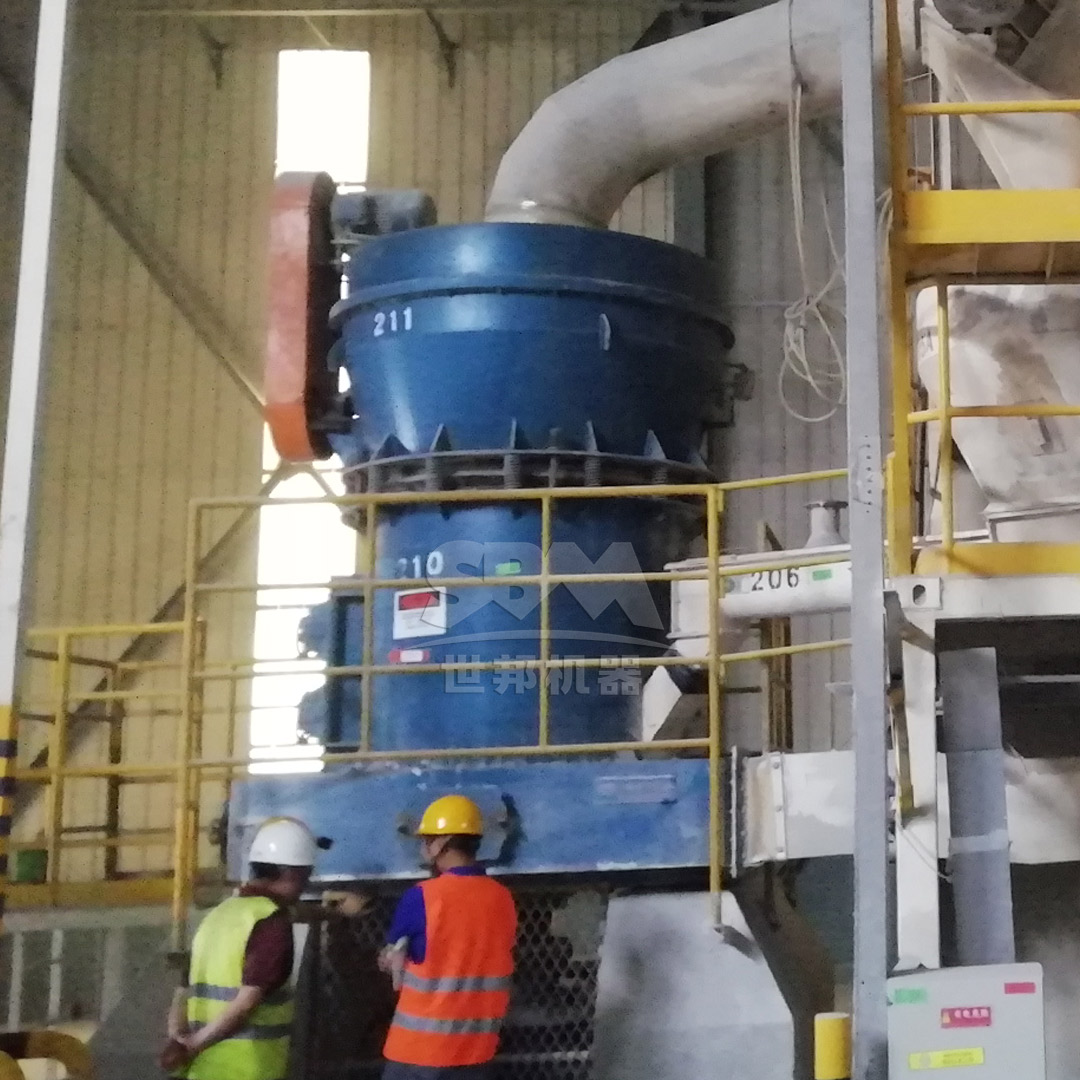

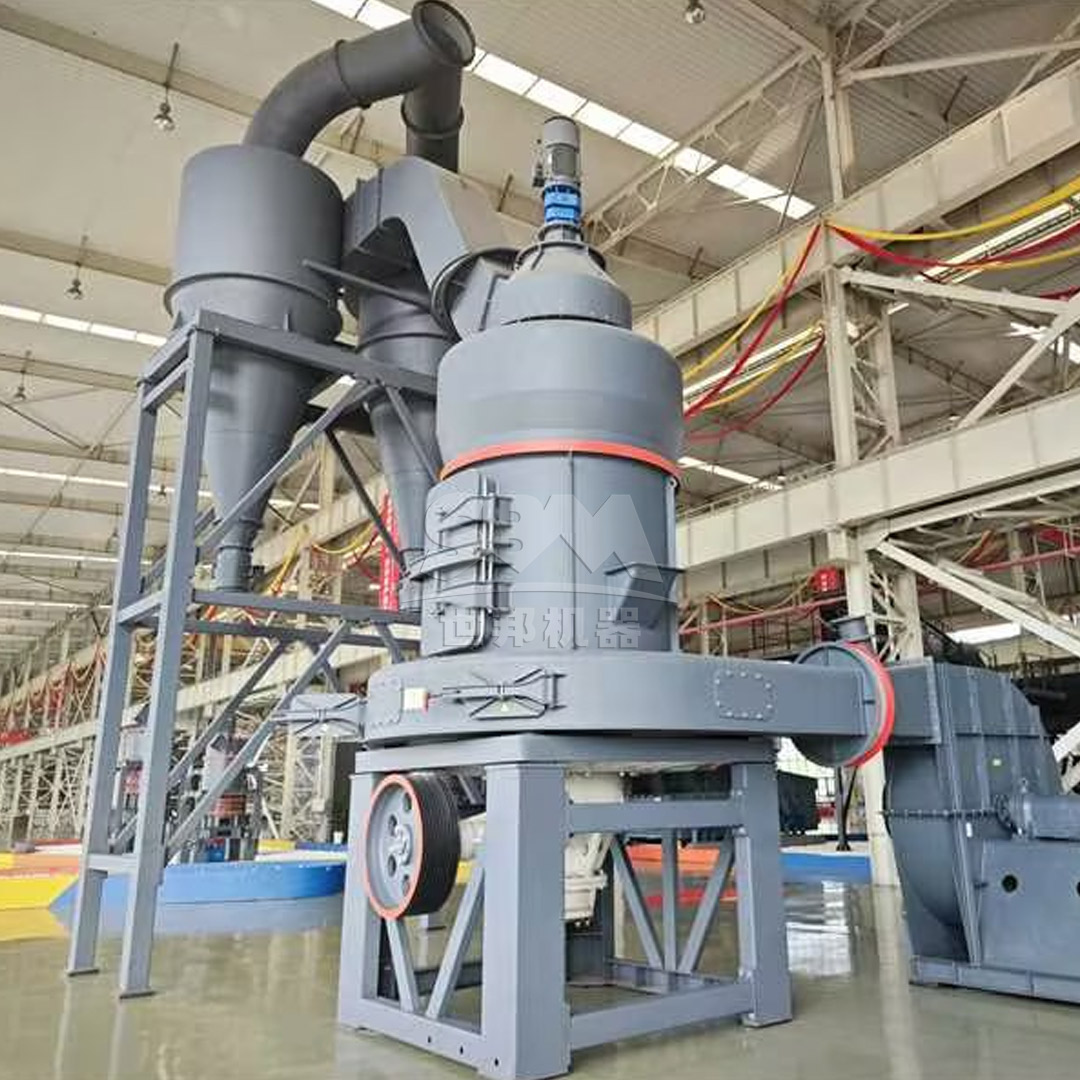

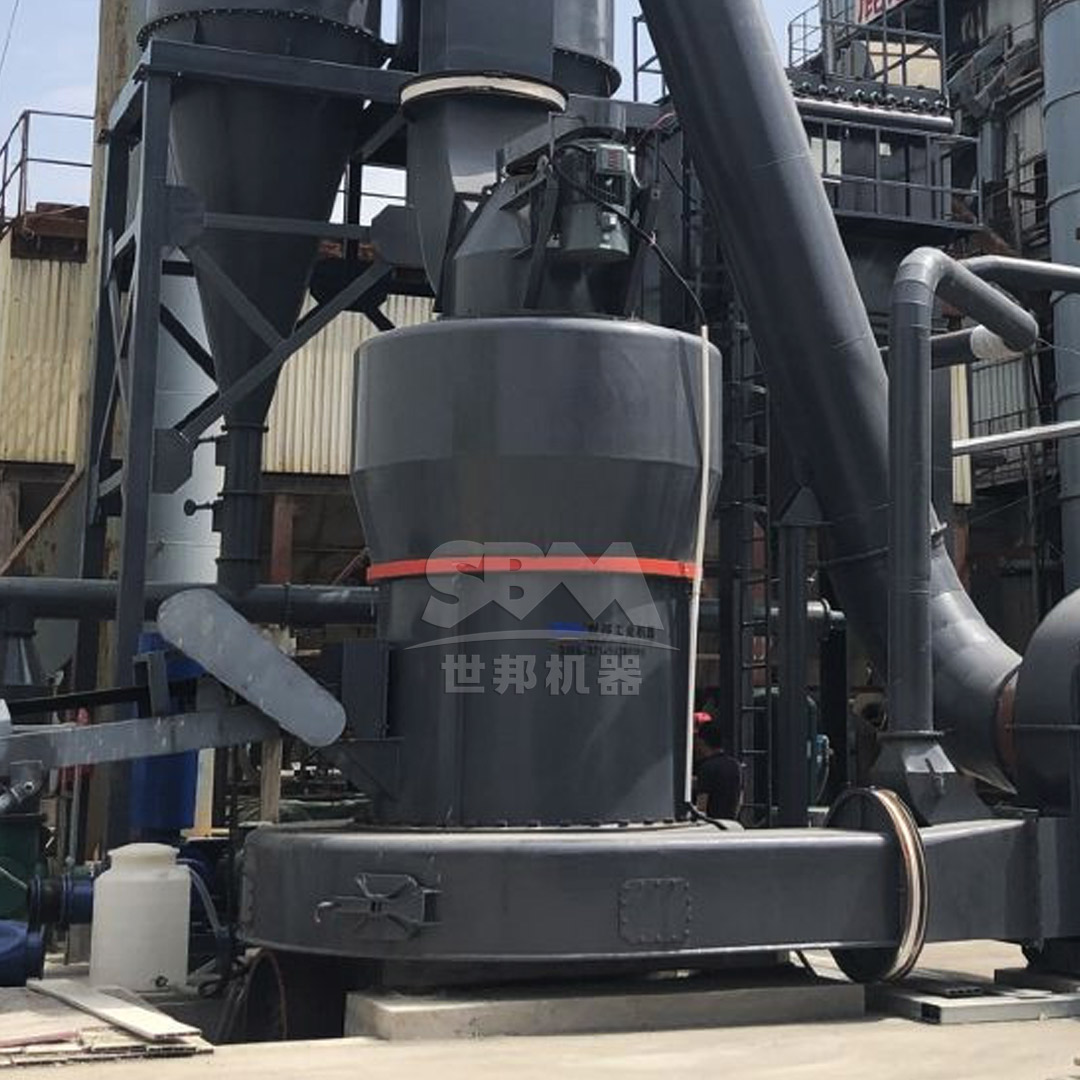

Recommended Solution: LM Series Vertical Roller Mill

For barite grinding applications demanding high capacity, precise control, and operational reliability, our LM Series Vertical Roller Mill represents an optimal solution. Engineered for mineral processing, this mill is perfectly suited to handle the specific challenges of grinding barite to API specifications.

Key Advantages for Barite Grinding:

• High Grinding Efficiency: Its集约化设计 (Intensive Design) integrates crushing, grinding, and classification into a single unit, reducing energy consumption by 30-40% compared to ball mill systems.
• Robust Construction: Featuring磨辊与磨盘非接触设计 (non-contact roller and disc design) and special wear-resistant materials, the mill’s durability is significantly enhanced, directly countering the abrasive nature of barite.
• Intelligent Control: An expert-level automatic control system allows for remote monitoring and adjustment of key parameters like roller pressure, feed rate, and classifier speed, ensuring stable production of high-quality barite powder.
• Environmental Compliance: The system operates under full-sealed negative pressure, with dust emissions consistently kept below 20mg/m³, meeting strict environmental standards.

The LM Series Mill’s ability to handle feed sizes up to 50mm and produce powder in the exact range required for drilling mud (typically 200-325 mesh) makes it an indispensable asset for modern barite processing plants aiming for high productivity and superior product quality.

Optimizing the Grinding Process

To achieve the best results with a VRM for barite, several operational factors must be optimized:

• Feed Size: A consistent feed size below the mill’s maximum limit (e.g., ≤50mm) ensures stable operation and prevents grinding roller vibration.
• Grinding Pressure: The hydraulic pressure applied to the rollers must be optimized to create a stable and efficient material bed without causing excessive vibration.
• Classifier Speed: This is the primary control variable for product fineness. Higher speeds result in a finer product by increasing the centrifugal force rejecting coarse particles.
• Gas Flow and Temperature: The volume and temperature of the process gas affect drying efficiency and material transport through the mill.

Conclusion

The Vertical Roller Mill has revolutionized the processing of industrial minerals like barite. Its unmatched combination of energy efficiency, precise particle size control, and operational reliability makes it the technology of choice for producing high-quality API-grade barite for the demanding oil and gas industry. By investing in advanced VRM technology, such as our robust LM Series Vertical Roller Mill, producers can significantly enhance their product quality, reduce operating costs, and maintain a competitive edge in the global market for drilling mud additives.
