The production of high-quality ceramic and sanitary ware demands exceptional raw material preparation, with bauxite grinding standing as a pivotal process. Bauxite, the primary aluminum ore, serves as a fundamental component in ceramic bodies and glazes, contributing to structural integrity, thermal resistance, and final product aesthetics. Achieving the optimal particle size distribution and purity through precise grinding is paramount for ensuring superior product quality, reduced defect rates, and enhanced manufacturing efficiency.
Grinding bauxite for advanced ceramic applications presents unique challenges. The material’s abrasive nature accelerates equipment wear, while the requirement for ultra-fine and consistent particle sizes (often down to the micron level) demands advanced milling technology. Traditional grinding systems often struggle with energy inefficiency, contamination risks, and insufficient control over the final product’s fineness, which can directly impact the sintering behavior, mechanical strength, and surface finish of the final ceramic ware.
An optimal bauxite grinding mill for ceramic production must excel in several areas:

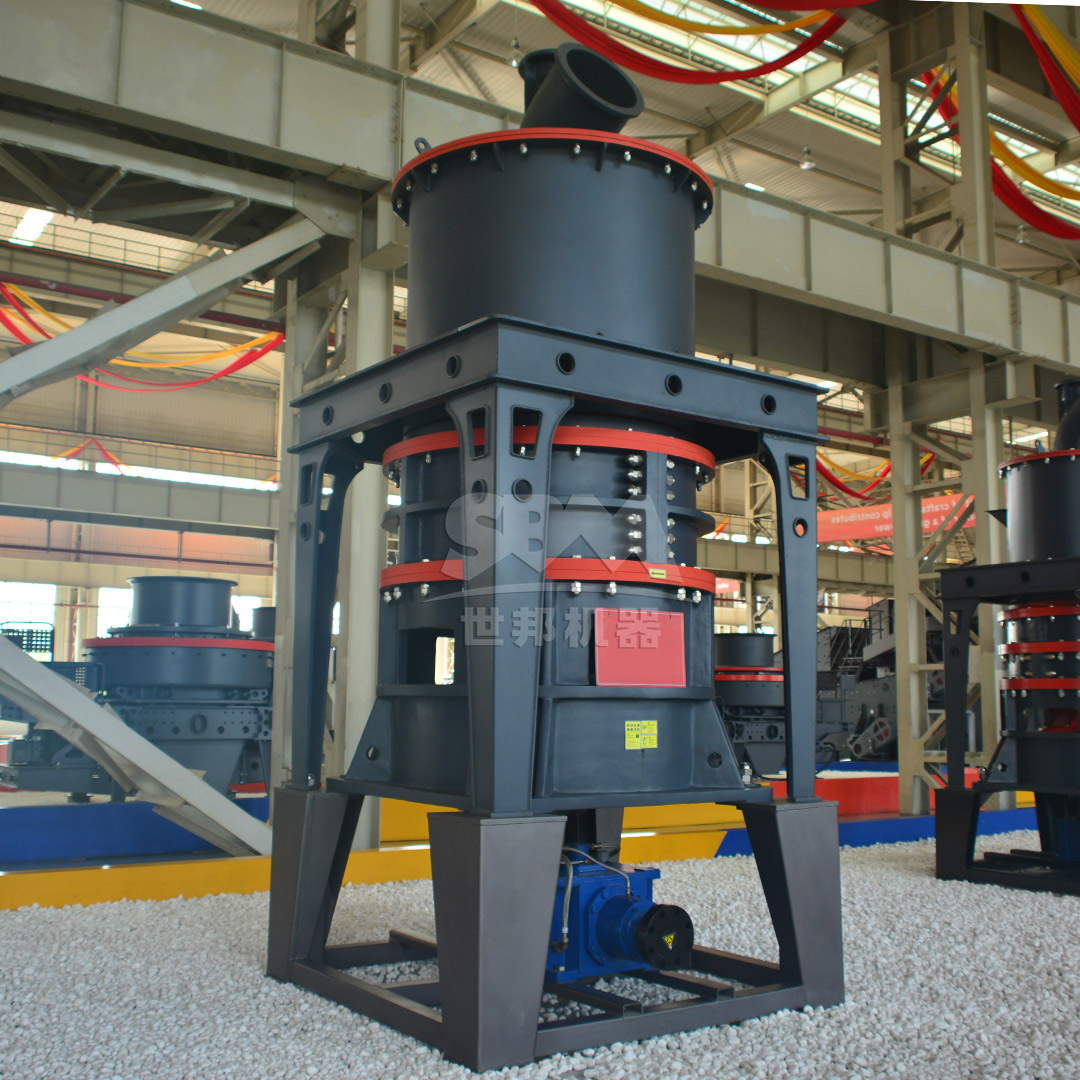

After a thorough evaluation of available technologies, our SCM Series Ultrafine Mill emerges as the superior choice for grinding bauxite destined for high-end ceramic and sanitary ware production. This mill is specifically engineered to overcome the limitations of traditional equipment, delivering unparalleled performance, reliability, and final product quality.
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Feed Size (mm) | Final Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | ≤20 | 325-2500 |
| SCM900 | 0.8-6.5 | 90 | ≤20 | 325-2500 |
| SCM1000 | 1.0-8.5 | 132 | ≤20 | 325-2500 |
| SCM1250 | 2.5-14 | 185 | ≤20 | 325-2500 |
| SCM1680 | 5.0-25 | 315 | ≤20 | 325-2500 |
1. Superior Efficiency and Energy Savings: The SCM Mill operates with remarkable energy efficiency, offering up to twice the capacity of jet mills while reducing energy consumption by 30%. Its intelligent control system features automatic feedback on product fineness, ensuring consistent quality with minimal operator intervention and optimal power usage.
2. Exceptional Classification Precision: Equipped with a vertical turbo classifier, the mill achieves precise particle size cuts. This advanced classification system ensures no coarse powder contamination, resulting in a uniformly fine product essential for consistent ceramic sintering and surface properties.
3. Enhanced Durability and Reliability: Specifically designed for abrasive materials like bauxite, the SCM Mill features special alloy roller and ring sets that extend service life multiple times over conventional materials. Its innovative bearingless screw grinding chamber design ensures stable, vibration-free operation and reduced maintenance requirements.
4. Environmental and Operational Safety: The integrated pulse dust collection system exceeds international standards for emission control, ensuring a clean working environment. Furthermore, the mill’s soundproof chamber design maintains operational noise levels below 75dB, promoting better workplace conditions.
The SCM Ultrafine Mill operates on an optimized grinding principle. The main motor drives a multi-layer grinding ring to rotate. Material is fed into the mill and dispersed by centrifugal force into the grinding path where it undergoes progressive compression and shearing between the rollers and rings. The finely ground material is then pneumatically transported to an integrated high-efficiency classifier. Oversize particles are returned for further grinding while the in-spec product is collected via a cyclone separator and pulse dust collector system, ensuring maximum product recovery and minimal waste.

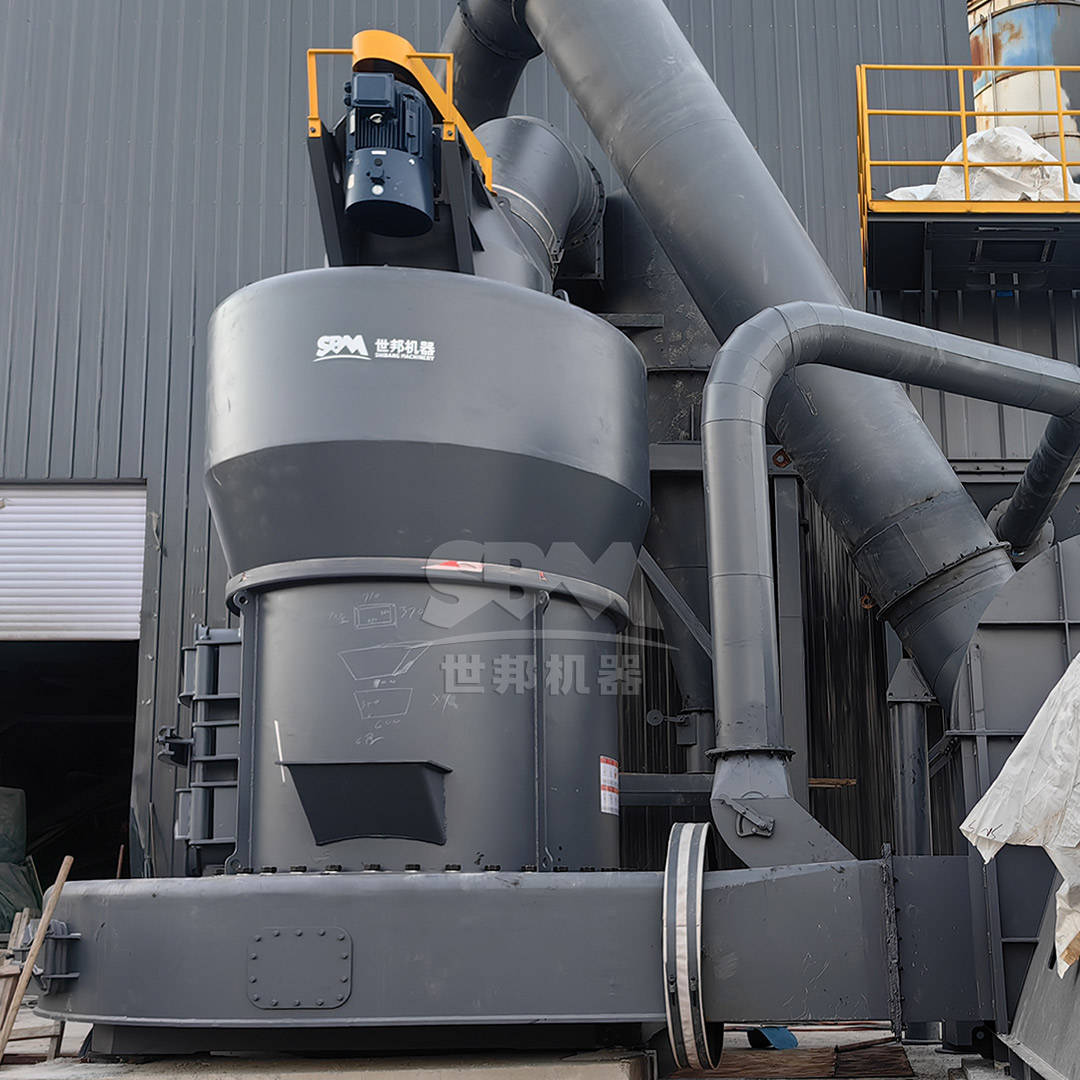

For ceramic production lines that require slightly coarser bauxite grinds or have higher capacity requirements, our MTW Series Trapezium Mill presents an excellent alternative. This robust mill excels in processing larger feed sizes while maintaining excellent efficiency and reliability.
The MTW Mill incorporates several innovative features that make it ideal for heavy-duty bauxite grinding:
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Feed Size (mm) | Final Fineness (mesh) |
|---|---|---|---|---|
| MTW110 | 3-9 | 55 | <30 | 30-325 |
| MTW138Z | 6-17 | 90 | <35 | 30-325 |
| MTW175G | 9.5-25 | 160 | <40 | 30-325 |
| MTW215G | 15-45 | 280 | <50 | 30-325 |
The MTW Mill’s working principle involves the main motor driving the grinding rollers to revolve around the central axis while rotating themselves, generating centrifugal force. Shovels feed material between the rollers and grinding ring where it forms a material bed that undergoes efficient compression grinding. The integrated classification system then precisely controls the final product size, ensuring consistent quality output suitable for various ceramic applications.
The selection of an appropriate bauxite grinding mill is a critical decision that directly impacts product quality, production efficiency, and operational costs in ceramic and sanitary ware manufacturing. Our SCM Series Ultrafine Mill, with its exceptional ability to produce high-purity, consistently fine bauxite powder, represents the ideal solution for manufacturers seeking to achieve premium product characteristics. For operations requiring processing of larger feed sizes or higher throughput capacities, the MTW Series Trapezium Mill offers robust performance and reliability.
Both mills incorporate advanced technologies that address the specific challenges of bauxite grinding, including wear resistance, energy efficiency, and precise particle size control. By investing in these state-of-the-art grinding solutions, ceramic producers can significantly enhance their product quality, reduce production costs, and maintain a competitive edge in the global market for high-quality ceramic and sanitary ware products.
