Calcite Grinding Mill for Rubber Compounding and Filler Production

Calcite Grinding Mill for Rubber Compounding and Filler Production

Introduction

Calcite, a naturally occurring form of calcium carbonate (CaCO₃), is a critical raw material in numerous industrial applications, particularly in rubber compounding and filler production. Its unique properties, including high whiteness, low oil absorption, and excellent dispersion characteristics, make it an ideal functional filler. The processing of calcite into fine and ultra-fine powders is paramount to unlocking its full potential in enhancing the physical properties of rubber products, such as tensile strength, abrasion resistance, and extrusion characteristics. This article delves into the technological requirements for calcite grinding in these specific applications and highlights advanced milling solutions that ensure optimal product quality and operational efficiency.

The Role of Calcite in Rubber Compounding

In the rubber industry, fillers are not merely additives to reduce cost; they are essential components that significantly influence the compound’s properties. Calcite fillers are predominantly used in non-black rubber goods, such as hoses, seals, and footwear, where color is important. The key performance indicators for a calcite filler are:

• Particle Size and Distribution: A fine, tightly controlled particle size distribution (PSD) ensures uniform dispersion within the rubber matrix, leading to improved mechanical properties and surface finish.
• Surface Area: A higher specific surface area, achieved through ultra-fine grinding, increases the interaction between the calcite particles and the polymer chains, enhancing reinforcement.
• Chemical Purity: High purity levels (≥98% CaCO₃) are necessary to avoid adverse chemical reactions that could compromise the rubber’s aging stability and vulcanization process.

Achieving these characteristics demands grinding technology capable of precise particle size control, high throughput, and consistent product quality.

Technical Requirements for Calcite Grinding

The transformation of raw calcite lumps into a functional powder is a complex process governed by several technical parameters. The ideal mill must deliver:

• High Precision in Final Fineness: The ability to produce powders in the range of 325 mesh (45μm) to 2500 mesh (5μm) is crucial for different grades of rubber compounds.
• High Production Capacity: To meet the demands of large-scale rubber manufacturing, mills must offer throughputs ranging from a few tons to over twenty tons per hour.
• Energy Efficiency: Grinding is an energy-intensive process. Modern mills must incorporate design features that maximize output while minimizing power consumption.
• Consistent Product Quality: The mill must ensure minimal variation in particle size distribution between batches to guarantee consistent rubber compound performance.
• Low Contamination: The grinding process must not introduce metallic or other contaminants into the high-purity calcite powder.
• Environmental Compliance: Operations must be dust-free and comply with strict international emission and noise standards.

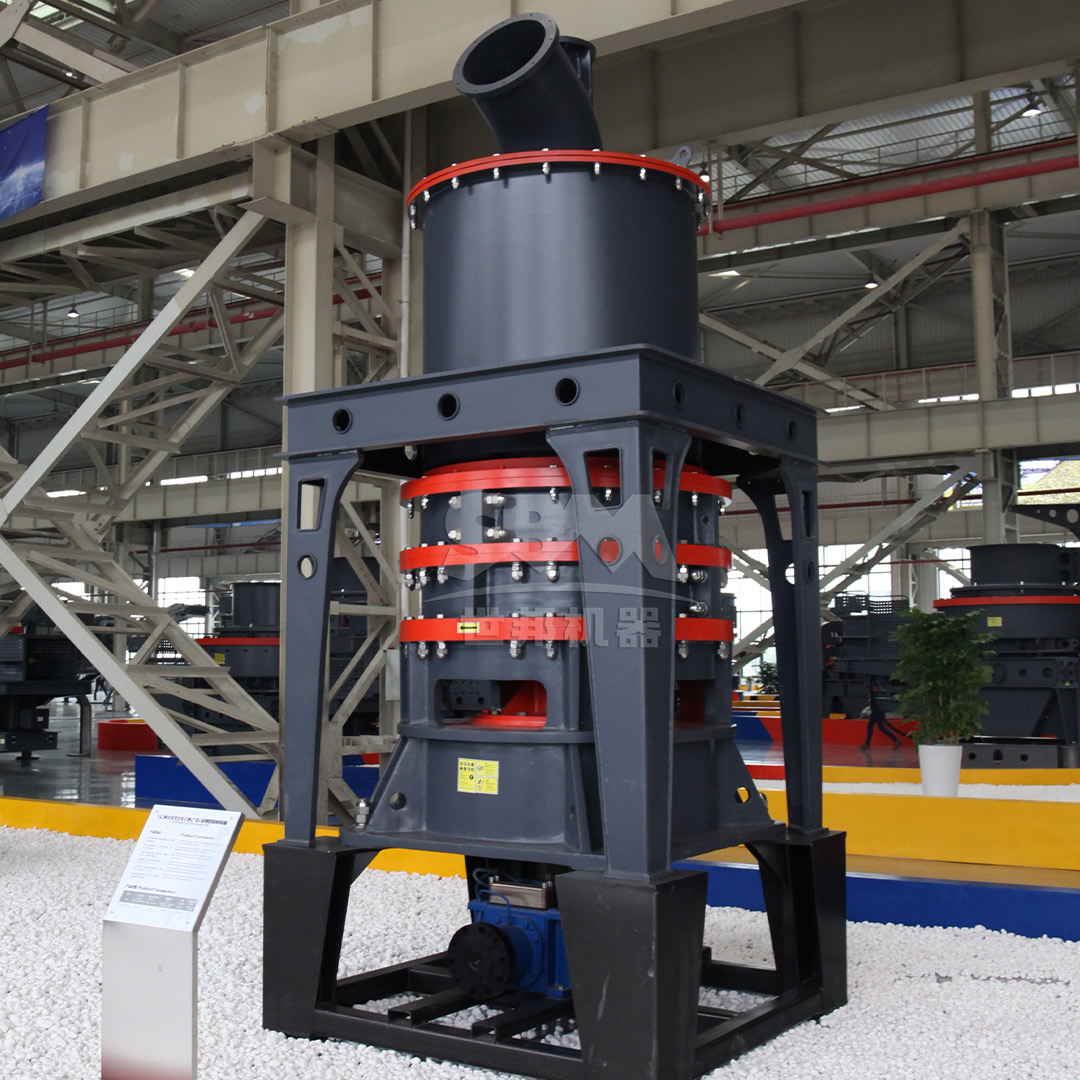

Introducing the SCM Series Ultrafine Mill

For producers seeking to achieve the finest calcite powders for high-performance rubber applications, our SCM Series Ultrafine Mill represents the pinnacle of grinding technology. Engineered specifically for producing powders between 325 and 2500 mesh (45-5μm), this mill is an ideal solution for premium filler production.

The SCM Mill’s core advantages directly address the needs of the rubber industry:

• Superior Fineness Control: Its integrated vertical turbine classifier ensures precise particle size切割, delivering a final product with a narrow PSD and no coarse grit (D97 ≤ 5μm). This is essential for achieving smooth extrusion and excellent surface finish in rubber profiles.
• Enhanced Efficiency: Compared to traditional jet mills, the SCM offers twice the capacity with 30% lower energy consumption, significantly reducing the operational cost per ton of produced filler.
• Exceptional Durability: The grinding rollers and ring are manufactured from special wear-resistant materials, extending service life and preventing metallic contamination of the calcite product.
• Eco-Friendly Operation: The mill operates under full negative pressure with a high-efficiency pulse dust collection system, ensuring dust emissions are well below international standards. Its noise level is kept below 75dB, creating a better working environment.

The MTW Series Trapezium Mill for Coarser Filler Applications

For applications requiring calcite fillers in the coarser range (30-325 mesh or 600-45μm), such as certain types of rubber mats and lower-cost compounds, our MTW Series Trapezium Mill offers a robust and economical solution. With a larger feed size capability (≤50mm) and high capacity (up to 45 TPH), this mill is designed for high-volume production.

Its key features include:

• Advanced Wear Protection: The modular design of the shovel blades and the curved surface of the grinding roller significantly reduce wear and maintenance costs.
• Optimized Airflow: The patented curved air duct minimizes resistance and energy loss, improving overall system efficiency and product collection.
• Integrated Drive System: The use of a conical gear for overall transmission achieves a remarkable 98% transmission efficiency, saving space and installation costs.

The MTW Series is the workhorse for reliably producing consistent, high-quality calcite fillers for standard rubber compounding needs.

Conclusion

The selection of the appropriate grinding technology is a critical decision that directly impacts the quality, cost, and performance of calcite fillers in rubber compounding. Whether the target is ultra-fine powders for high-performance applications or coarser grades for standard products, the milling equipment must offer precision, reliability, and efficiency. Our SCM Series Ultrafine Mill and MTW Series Trapezium Mill provide comprehensive solutions across the entire fineness spectrum, backed by proven technology designed to meet the rigorous demands of the global rubber industry. By investing in the right grinding technology, producers can significantly enhance their product offerings and secure a competitive advantage in the market.
