Introduction

The construction industry’s relentless pursuit of sustainability and cost-efficiency has driven significant innovation in cement production. One of the most impactful developments is the utilization of industrial by-products as supplementary cementitious materials (SCMs). Coal gangue, a solid waste generated during coal mining and washing, stands out as a prime candidate. When processed into fine powder, it can serve as an excellent cement admixture, improving concrete workability, durability, and reducing the clinker factor, thereby lowering both cost and carbon footprint. The core of this valorization process lies in an efficient and reliable grinding system. This article explores the complete powder production line for coal gangue, focusing on technological requirements and optimal equipment selection.

The Challenge of Coal Gangue Grinding

Coal gangue is a heterogeneous material with variable hardness, abrasiveness, and moisture content. Its composition typically includes clay minerals, sandstone, shale, and carbonaceous matter. Transforming this challenging raw material into a consistent, high-quality powder suitable for cement admixtures presents several key challenges:

• Abrasiveness: High quartz and other hard mineral content leads to severe wear on grinding components.
• Variable Feed Size: Run-of-mine gangue can have a wide size distribution, requiring robust pre-crushing.
• Fineness Requirement: Effective pozzolanic activity as an SCM often requires a high specific surface area, typically demanding fineness between 325 mesh (45μm) and 800 mesh (18μm) or finer.
• System Efficiency: The entire process, from crushing to classification and collection, must be energy-efficient to ensure economic viability.
• Environmental Compliance: The system must operate with minimal dust emission and noise pollution.

A successful production line must address all these factors through integrated design and the selection of appropriately robust and precise equipment.

Complete Powder Production Line Configuration

A typical, high-yield coal gangue powder production line consists of several interconnected stages:

1. Raw Material Pre-Crushing & Storage: Large coal gangue is first reduced to a manageable size (typically below 50mm) using a jaw crusher or hammer mill. The pre-crushed material is then stored in a silo with a controlled feeding system.
2. Drying (Optional): If the gangue moisture content is high (>5%), a dryer (such as a rotary dryer) may be integrated to ensure efficient grinding and prevent clogging.
3. Grinding & Classification: This is the heart of the line. The pre-processed gangue is fed into a grinding mill. The ground powder is simultaneously transported by airflow to an integrated classifier, which separates particles based on size. Oversize particles are returned for regrinding, while qualified fine powder proceeds.
4. Powder Collection: The fine powder-laden air stream enters a high-efficiency dust collector, such as a pulse bag filter, where the product is separated and collected.
5. Packaging & Storage: The collected powder is conveyed to product silos and can be packaged for shipment or directly fed into a cement blending system.

Critical Equipment Selection: The Grinding Mill

The choice of grinding mill determines the productivity, product quality, and operational economy of the entire line. For coal gangue targeting cement admixture applications, two primary fineness ranges are common: coarse to medium fineness (30-325 mesh) for filler applications and ultra-fine fineness (325-2500 mesh) for high-activity pozzolanic materials. Our company offers industry-leading solutions for both requirements.

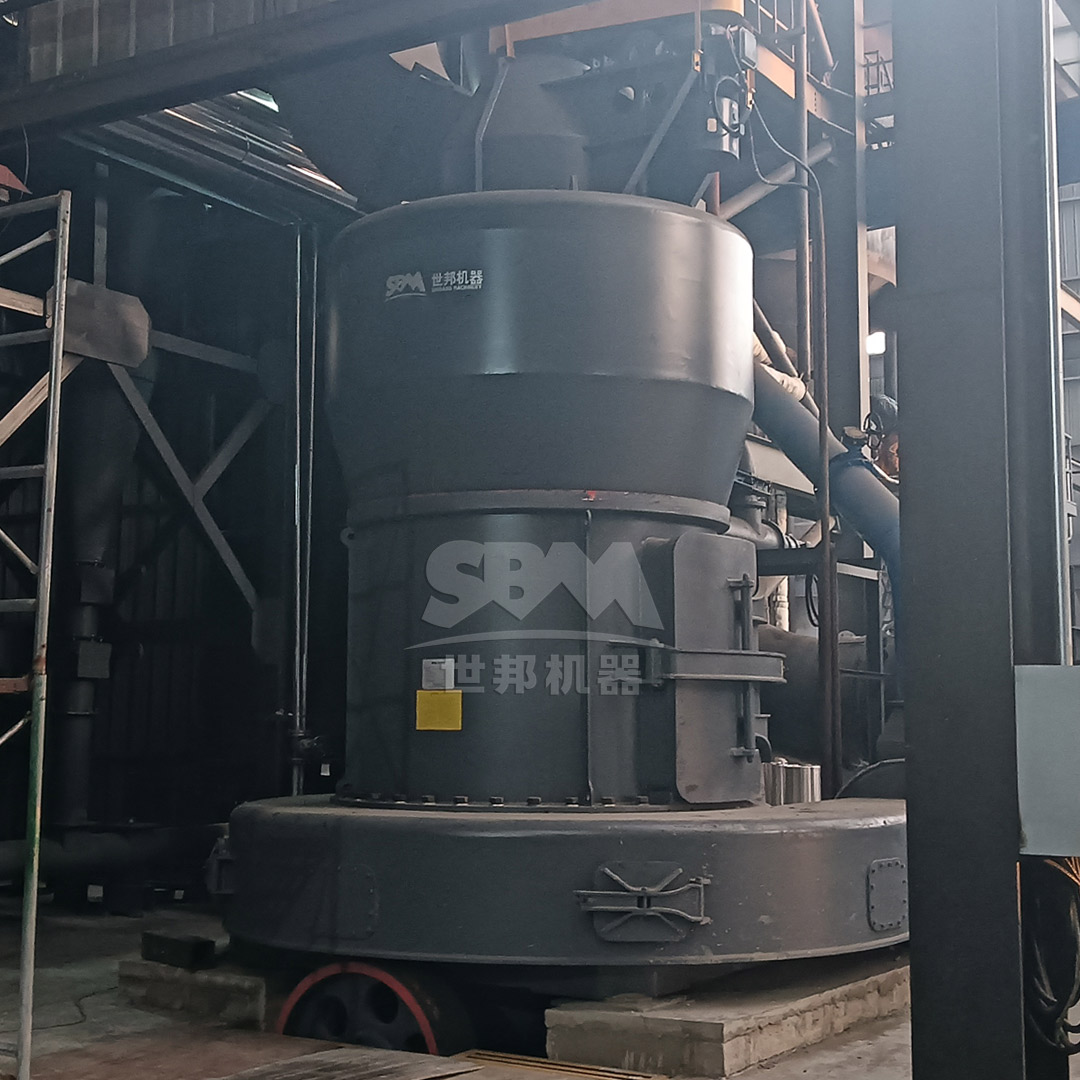

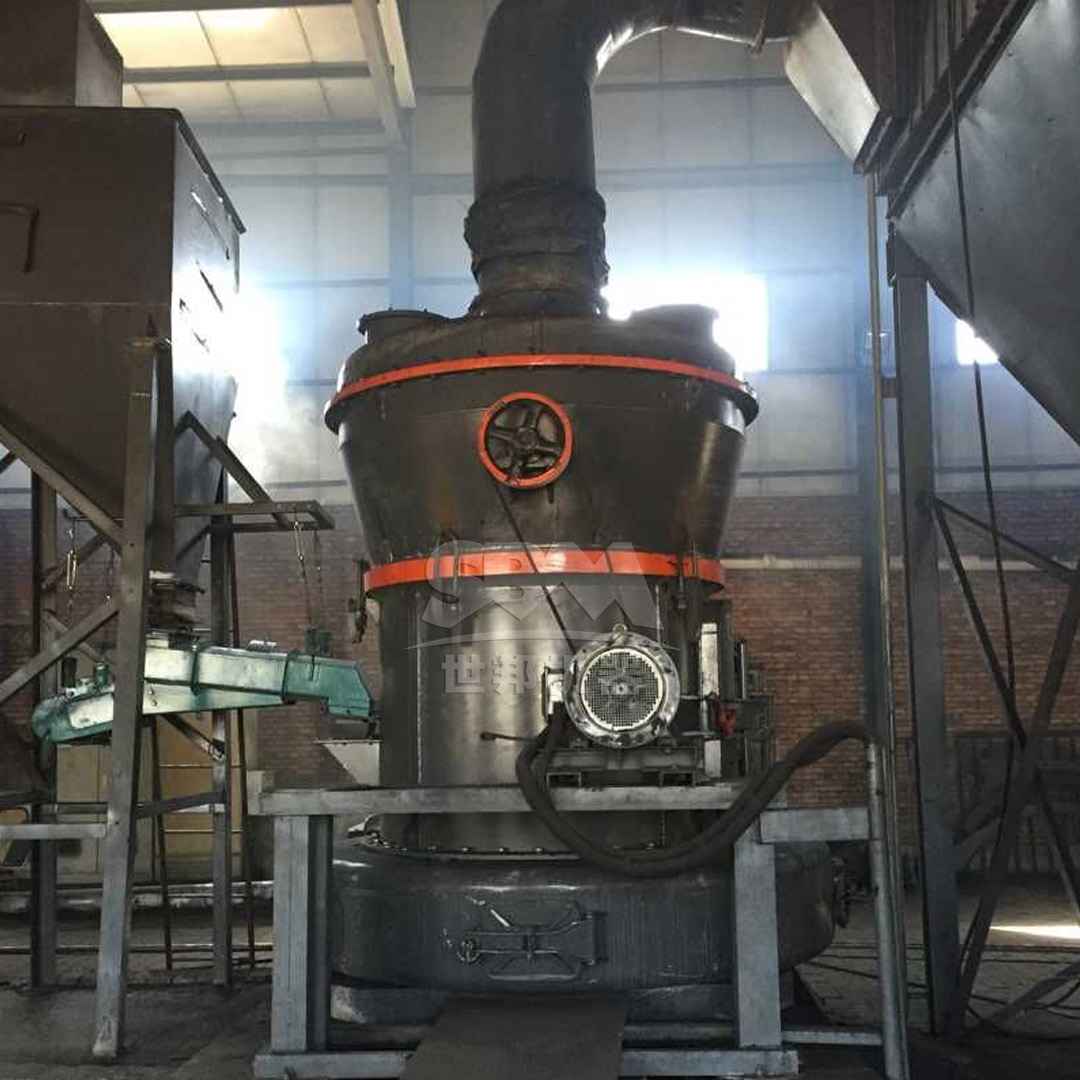

Solution for Coarse to Medium Fineness (30-325 mesh): The MTW Series European Trapezium Mill

For projects requiring high-capacity production of coal gangue powder in the 30-325 mesh range, the MTW Series European Trapezium Mill is the ideal workhorse. Engineered for durability and efficiency when processing moderately abrasive materials, it excels in this application.

Key Advantages for Coal Gangue Grinding:

• Anti-wear Design: Its patented combined shovel blade and curved roller design significantly reduce wear from abrasive gangue, extending maintenance intervals and lowering operating costs.
• High Transmission Efficiency: The integral bevel gear drive achieves up to 98% transmission efficiency, translating directly into energy savings—a critical factor for continuous operation.
• Optimized Airflow: The arc air duct and wear-resistant volute structure minimize pressure loss, ensuring stable material conveying and classification with reduced fan power consumption.
• Large Capacity: With models like the MTW215G offering capacities up to 45 tons per hour, it is perfectly suited for large-scale cement admixture production facilities.

Solution for Ultra-Fine & High-Activity Pozzolan (325-2500 mesh): The SCM Series Ultrafine Mill

When the project goal is to produce ultra-fine coal gangue powder with high pozzolanic activity for premium cement blends, the SCM Series Ultrafine Mill is the unmatched technological solution. It is designed to achieve exceptional fineness with remarkable energy efficiency.

Key Advantages for Ultra-Fine Coal Gangue Powder:

• Exceptional Fineness & Classification: It can reliably produce powder from 325 to 2500 mesh (45-5μm). Its high-precision vertical turbine classifier ensures sharp particle size cuts and a uniform product without coarse powder mixing, which is vital for consistent concrete performance.
• Superior Energy Efficiency: The grinding mechanism offers capacity twice that of traditional jet mills while consuming approximately 30% less energy, making ultra-fine grinding economically feasible.
• Enhanced Durability: Critical wear parts like rollers and grinding rings are made from special materials, extending service life several times over when processing abrasive gangue.
• Intelligent & Clean Operation: Features like automatic fineness feedback control, pulse dust collection with efficiency exceeding 99%, and soundproof design ensure a stable, environmentally compliant production environment.

Auxiliary Equipment & System Integration

The mill is the core, but the performance of the entire line depends on seamless integration with auxiliary equipment:

• Pre-Crushers: A Hammer Mill (e.g., PC4012-90 model) is excellent for primary size reduction of raw gangue to below 40mm, featuring high manganese steel liners for abrasion resistance.
• Feeders & Conveyors: Vibrating feeders (GZ series) ensure a stable and controllable feed rate to the mill, which is crucial for grinding stability and product consistency.
• Dust Collection System: A high-pressure pulse bag filter is essential. It must be correctly sized to handle the system’s air volume, ensuring dust emissions are well below regulatory limits and maximizing product yield.
• Electrical Control System: A centralized PLC-based control system allows for automated operation, monitoring of key parameters (pressure, temperature, motor load), and remote troubleshooting, ensuring high system availability.

Conclusion

Establishing a complete powder production line for coal gangue cement admixtures is a strategic investment that turns an environmental liability into a valuable resource. Success hinges on a deep understanding of the material’s properties and the selection of a grinding system engineered to overcome its challenges. Our company’s MTW Series European Trapezium Mill and SCM Series Ultrafine Mill provide two robust, efficient, and proven technological pathways for coarse and ultra-fine applications, respectively. By integrating these mills with precisely matched auxiliary equipment, operators can achieve a reliable, cost-effective, and sustainable production line that delivers high-quality coal gangue powder, contributing significantly to the green transformation of the cement industry.
