How to Produce White Cement: Equipment Guide for Using Kaolin Additives

How to Produce White Cement: Equipment Guide for Using Kaolin Additives

Introduction

White cement, distinguished by its high whiteness and aesthetic appeal, is a specialized hydraulic binder used in architectural concrete, terrazzo, tile grouts, and decorative renders. Its production demands stringent control over raw material purity, processing technology, and equipment selection. Unlike ordinary grey Portland cement, the key to achieving exceptional whiteness lies in minimizing iron oxide (Fe2O3) and manganese oxide (MnO) content, which impart color. This is where high-purity kaolin, a white clay rich in kaolinite (Al2O3·2SiO2·2H2O), becomes a critical additive or even a primary raw material. Kaolin not only contributes to the aluminosilicate phase but also helps in achieving the desired low chroma. This guide delves into the production process of white cement with a focus on kaolin utilization and provides a detailed equipment selection framework to ensure optimal quality and efficiency.

The Role of Kaolin in White Cement Production

Kaolin serves multiple functions in white cement manufacture. Primarily, it acts as a source of alumina (Al2O3) and silica (SiO2), essential for forming the cementitious phases like tricalcium aluminate (C3A) and tetracalcium aluminoferrite (C4AF). However, in white cement, the formation of C4AF (which is brown) is minimized. The high purity of kaolin ensures low levels of coloring oxides. Secondly, its fine particle size and plasticity can improve the burnability of the raw mix in the kiln, leading to lower clinkering temperatures and reduced energy consumption. Processing kaolin to the correct fineness and consistency is, therefore, a pivotal step that directly influences the final product’s whiteness index (often measured by L* value), strength, and setting characteristics.

Key Processing Stages for Kaolin in White Cement

1. Beneficiation & Washing: Raw kaolin may contain impurities like quartz, feldspar, and iron-bearing minerals. Washing and magnetic separation are employed to enhance purity.
2. Drying: Reducing moisture content is essential for efficient grinding and blending.
3. Fine Grinding: This is the most critical mechanical step. Kaolin must be ground to a very fine powder (typically 90% passing 325 mesh/45μm, and often much finer for premium grades) to ensure homogeneous blending with other raw materials (like limestone and silica sand) and complete chemical reactions in the kiln.
4. Blending: The finely ground kaolin is precisely proportioned and homogenized with other raw materials to form the kiln feed.

Core Equipment Selection for Kaolin Processing

The choice of grinding and classification equipment dictates the efficiency, particle size distribution (PSD), and overall operational cost of preparing kaolin for white cement production. The ideal equipment must deliver ultra-fine products, high classification accuracy, energy efficiency, and minimal iron contamination from wear parts.

1. Primary & Secondary Crushing

Lump kaolin or dried kaolin cakes need size reduction before fine grinding. Hammer Crushers are suitable for this stage due to their high reduction ratio and ability to handle materials with moderate moisture. Models like the PC4012-90 (Capacity: 15-40 t/h, Power: 90kW) offer a good balance of performance and cost, reducing feed from 0-40mm down to 0-3mm efficiently.

2. Drying

Rotary dryers or flash dryers are commonly used. The dried kaolin should have moisture content below 1-2% for optimal grinding performance in most mill types.

3. Fine Grinding & Classification – The Heart of the Process

This stage is crucial for achieving the target fineness and PSD. Several mill types can be considered, each with its advantages.

For white cement grade kaolin, where ultra-fineness (often exceeding 1250 mesh/10μm) and minimal contamination are paramount, advanced grinding systems are recommended.

Recommended Equipment for Premium White Cement Kaolin

Based on the stringent requirements for whiteness and fineness, we highly recommend our advanced grinding solutions designed specifically for processing high-purity minerals like kaolin.

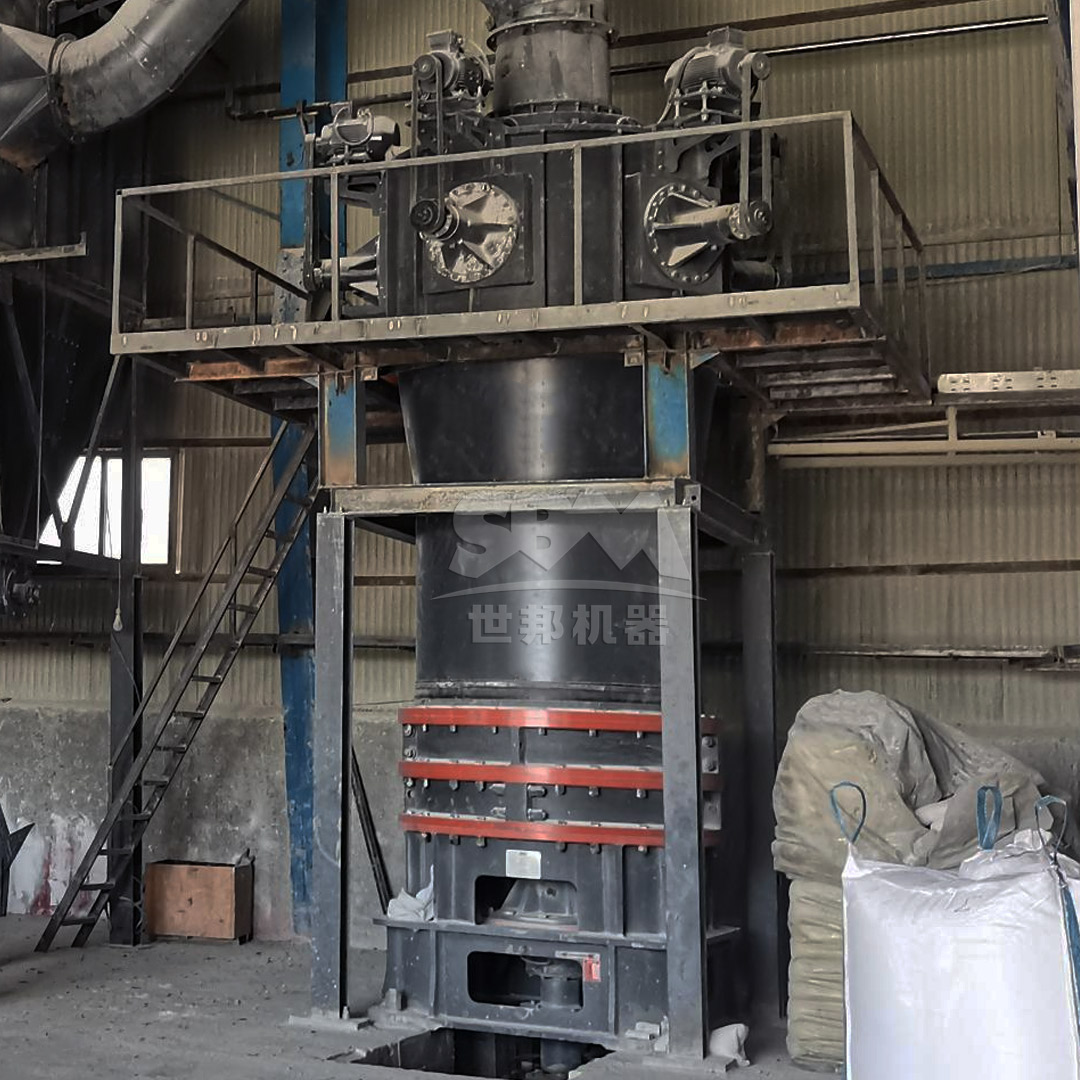

Primary Recommendation: SCM Series Ultrafine Mill

For producers aiming at the highest quality white cement, where kaolin needs to be ground to a consistent ultra-fine powder (e.g., d97 < 10μm), our SCM Series Ultrafine Mill is the ideal solution. Its design directly addresses the core challenges of kaolin processing:

• High Whiteness Preservation: The grinding chamber features a shaftless screw design and utilizes special material rollers and rings, significantly reducing metallic wear and the risk of iron contamination—a critical factor for maintaining kaolin’s brightness.
• Ultra-Precise Classification: Equipped with a vertical turbine classifier, it achieves precise particle size cutting. This ensures a uniform product with no coarse powder mixing, which is vital for homogeneous raw meal blending and predictable kiln behavior.
• Energy Efficiency: With a capacity 2x that of traditional jet mills and 30% lower energy consumption, it offers outstanding operational economy for ultra-fine grinding.
• Eco-friendly Operation: The pulse dust collection system exceeds international standards, ensuring a clean production environment and protecting the product purity.

For a typical white cement plant incorporating kaolin, the SCM1000 model (Capacity: 1.0-8.5 t/h, Main Power: 132kW, Output: 325-2500 mesh) provides an excellent balance of output and fineness control, capable of delivering the superfine kaolin powder required for top-tier white clinker synthesis.

Alternative/Complementary Solution: LM Series Vertical Roller Mill

For large-scale production where the target fineness for kaolin is in the range of 30-325 mesh (600-45μm), or as a pre-grinding stage, our LM Series Vertical Roller Mill presents a highly efficient and integrated option. Its advantages include:

• Integrated System: It combines crushing, grinding, drying, and classification in a single unit, reducing footprint by 50% and infrastructure costs.
• Low Operating Cost: The non-contact design between rollers and table extends wear part life and reduces energy consumption by 30-40% compared to ball mill systems.
• Excellent for Blending: The consistent, fine output is perfect for creating a homogeneous raw mix with limestone and other components.

A model like the LM190K (Capacity: 23-68 t/h, Fineness: 170-40μm) would be suitable for processing significant volumes of kaolin and other raw materials in a centralized grinding station for white cement production.

The Integrated White Cement Production Line with Kaolin

A typical process flow incorporating the above equipment recommendations would be:

1. Raw Material Handling: High-purity limestone, kaolin, and silica sand are stored separately.
2. Kaolin Preparation Line: Kaolin lumps → Hammer Crusher (PC Series) → Drying → SCM Ultrafine Mill (for premium grade) or LM Vertical Mill (for standard grade) → Fine Kaolin Silo.
3. Raw Meal Grinding & Blending: Limestone and other materials are crushed and ground. The finely processed kaolin is accurately metered and blended with the other ground components in a continuous homogenization silo to ensure a perfectly uniform raw meal.
4. Clinkering: The raw meal is fed into a rotary kiln, often fueled by oil or gas to avoid ash contamination. The low-iron composition and fine particle size (aided by the kaolin grind) promote efficient white clinker formation at temperatures around 1500°C.
5. Clinker Cooling & Cement Grinding: The white clinker is rapidly cooled to prevent re-oxidation. It is then ground with a small amount of gypsum in a dedicated cement mill (often a ball mill or vertical mill with ceramic grinding media) to produce the final white cement.

Conclusion

Producing high-quality white cement is a technology-intensive process where the selection and processing of raw materials like kaolin are decisive. Investing in the right grinding technology is not an operational detail but a strategic choice that impacts product quality, energy consumption, and production cost. Our SCM Series Ultrafine Mill, with its unmatched ability to produce contamination-free, ultra-fine kaolin powder, is specifically engineered to meet the exacting standards of the white cement industry. For larger volume or slightly coarser requirements, the LM Series Vertical Roller Mill offers unparalleled efficiency and integration. By partnering with a knowledgeable equipment supplier and selecting machinery designed for purity and precision, manufacturers can consistently achieve the brilliant whiteness and performance that define premium white cement.
