Calcite, a naturally occurring calcium carbonate mineral, is one of the most versatile and widely used industrial minerals. Its applications span from plastics and paints as a filler to construction materials and pharmaceuticals. The value of calcite is significantly enhanced by its fineness, whiteness, and purity, which are directly influenced by the grinding technology employed. Traditional grinding methods often struggle to achieve the desired fine particle sizes efficiently while maintaining low operational costs and meeting stringent environmental standards. This is where advanced pendulum roller mill technology comes into play, revolutionizing calcite powder production.
The pursuit of higher efficiency, superior product quality, and sustainable operation has driven the development of sophisticated milling systems. Pendulum roller mills, characterized by their robust construction, precision grinding, and intelligent control systems, have emerged as the preferred solution for producing high-quality calcite powder across a wide range of fineness.
Pendulum roller mill technology operates on a fundamental yet highly efficient principle. The core of the system consists of a main shaft from which grinding rollers are suspended. These rollers swing outward due to centrifugal force as the main assembly rotates, creating a rolling and grinding action against a stationary grinding ring. The material is fed into the grinding chamber and is crushed between the rollers and the ring.
A critical component of this system is the blade (or shovel), which is responsible for feeding the material into the grinding zone and creating a stable material bed for efficient compression grinding. This method of size reduction is predominantly through compression and shear forces, which is more energy-efficient than impact-based comminution for many materials, including calcite.
The ground material is then transported by an air stream to an integrated classifier. Modern pendulum mills feature high-precision, forced vortex turbo classifiers that can accurately separate particles based on size. Oversized particles are rejected and returned to the grinding zone for further size reduction, while in-spec material is conveyed to the collection system. This closed-circuit grinding ensures a consistent and narrow particle size distribution in the final product, a crucial factor for many calcite applications.
For operations seeking reliability, high capacity, and exceptional product quality in calcite grinding, we highly recommend our MRN Pendulum Mill. This machine embodies the latest advancements in pendulum roller mill technology, specifically designed to handle the challenges of mineral processing.
The MRN Mill is engineered for performance and durability. Its core parameters make it an ideal choice for calcite:
| Parameter | Value |
|---|---|
| Input Size | ≤ 50mm |
| Output Fineness | 30 – 325 mesh |
| Capacity Range | 2.7 – 83 TPH (depending on model) |
What truly sets the MRN series apart are its innovative features tailored for modern production needs. It incorporates a domestically pioneered oil lubrication system that ensures smooth operation of grinding rollers and other key components, drastically reducing maintenance requirements and costs. The square-pipe powder collector is designed to minimize air resistance, enhancing collection efficiency and overall system stability. Furthermore, the integrated pulse dust collector operates automatically, guaranteeing that the production process is not only efficient but also environmentally compliant, with near-zero dust emissions.
The scientific configuration, which includes a new type of classifier and an isolated cyclone powder collector, works synergistically to lower energy consumption per ton of product, making your calcite production more profitable and sustainable.

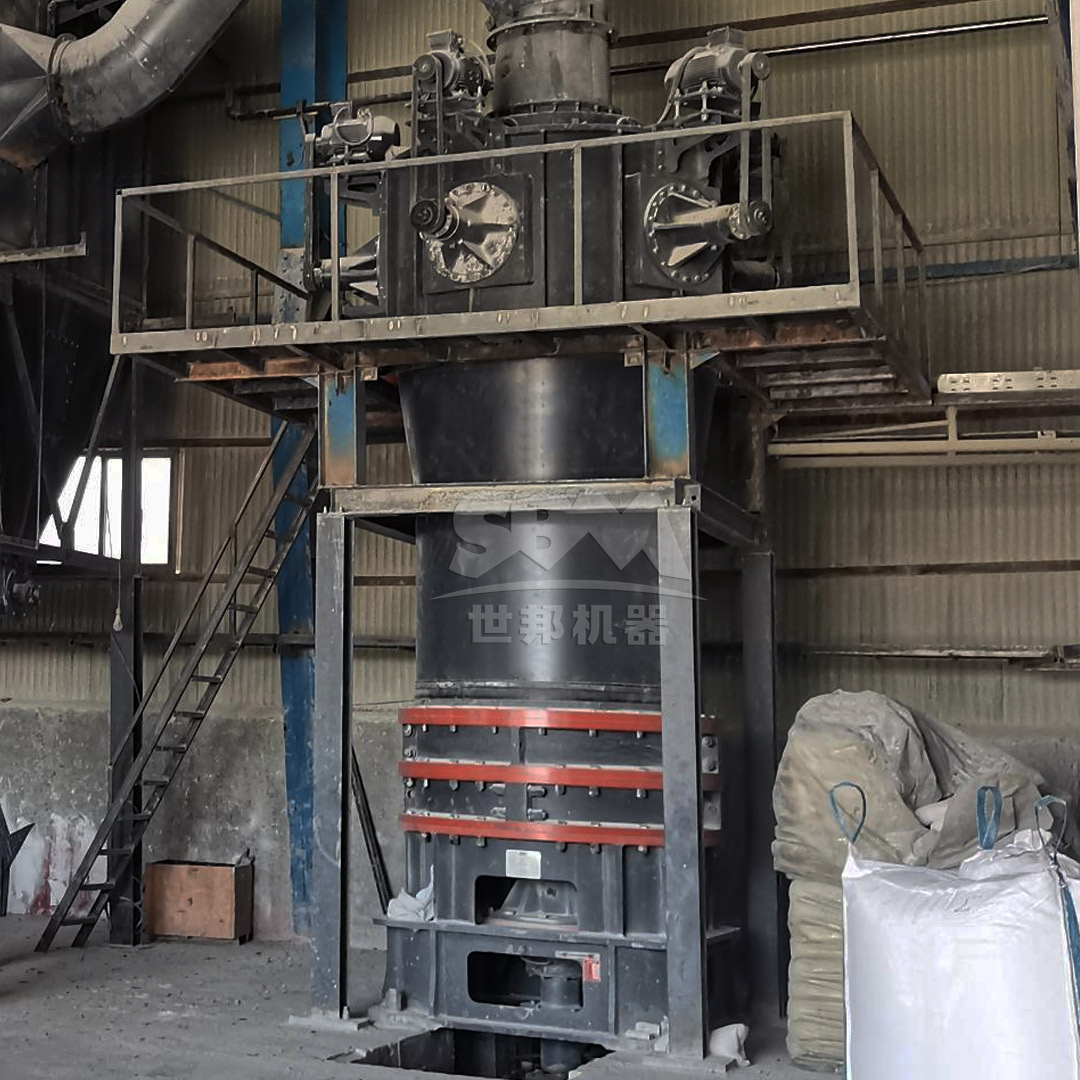

For applications demanding the highest levels of fineness, such as high-grade plastics, paints, coatings, and advanced ceramics, standard pendulum mills may reach their limit. This is the domain of ultrafine grinding. To meet this specific need for superfine calcite powder, we proudly offer our flagship SCM Ultrafine Mill.
The SCM series is a technological marvel designed to consistently produce calcite powder in the range of 325 to 2500 mesh (D97 ≤ 5μm). Its core specifications are impressive:
| Parameter | Value |
|---|---|
| Input Size | ≤ 20mm |
| Output Fineness | 325 – 2500 mesh (D97 ≤ 5μm) |
| Capacity | 0.5 – 25 ton/h (model dependent) |
The technological advantages of the SCM Ultrafine Mill are transformative for ultra-fine calcite production:
The working principle involves a main motor driving a multi-layered grinding ring to rotate. Material is dispersed into the grinding path by centrifugal force, undergoes compression and crushing by the rollers, and is progressively ground through each layer. The final product is efficiently collected by a cyclone separator and pulse dust removal system.
With a range of models from the SCM800 to the high-capacity SCM1680, there is an SCM Ultrafine Mill perfectly suited to any production requirement for ultra-fine calcite powder.
While the grinding mill is the heart of the operation, optimizing calcite powder production involves the entire circuit, from raw material preparation to final product handling. For initial size reduction of large calcite rocks, a robust crusher like our Hammer Mill (0-3mm) is ideal. It can handle feed sizes up to 40mm and reduce them to a fine, uniform granule of 0-3mm, creating the perfect feed for the pendulum or ultrafine mill, thus improving overall system efficiency and protecting the grinding mill from overly large feed.
Integration is key. Modern grinding plants utilize Programmable Logic Controllers (PLCs) to monitor and control the entire process. Parameters such as feed rate, grinding pressure, classifier speed, and air flow are continuously adjusted in real-time to maintain optimal operating conditions and product specifications. This level of automation not only ensures consistent quality but also maximizes energy efficiency and minimizes human error.
The choice of grinding technology is paramount in defining the profitability, quality, and sustainability of a calcite powder production operation. Pendulum roller mill technology, particularly as realized in advanced systems like our MRN Pendulum Mill and SCM Ultrafine Mill, offers an unparalleled combination of efficiency, precision, and reliability. By investing in the right technology partners and optimizing the entire production circuit, producers can meet the evolving demands of the market for high-quality calcite powder, ensuring a competitive edge in the global minerals industry.
