The cement industry is one of the most energy-intensive sectors globally, with the kiln system accounting for a significant portion of total energy consumption. Coal remains the primary fuel source in many regions due to its cost-effectiveness and availability. However, inefficient coal preparation and feeding can lead to suboptimal combustion, increased emissions, and reduced kiln efficiency. This article explores the critical role of advanced coal fine powder preparation and feeding technologies in optimizing cement kiln performance, with a focus on innovative grinding solutions that enhance combustion efficiency and operational reliability.
Coal fineness is a paramount factor influencing combustion efficiency in cement kilns. The particle size distribution of pulverized coal directly affects burnability, flame stability, and heat transfer rates. Ideally, coal powder should have a uniform fineness with minimal coarse particles to ensure complete combustion and minimize unburned carbon. Inadequate fineness can result in:
Advanced grinding technologies are essential to achieve the desired fineness (typically 80-90% passing 90 μm for kiln burners) with high consistency and energy efficiency.
| Parameter | Optimal Range | Impact on Kiln Operation |
|---|---|---|
| Particle Size (D90) | ≤90 μm | Ensures complete combustion and stable flame |
| Moisture Content | ≤1-2% | Prevents handling issues and improves energy efficiency |
| Uniformity Index (n) | ≥1.0 | Reduces coarse particles and unburned carbon |
Selecting the right grinding system is crucial for producing high-quality pulverized coal. Traditional ball mills have been widely used but are energy-intensive and less efficient for fine grinding. Modern vertical roller mills (VRMs) and specialized ultrafine mills offer significant advantages in terms of energy efficiency, product quality, and operational flexibility.
VRMs are increasingly adopted in the cement industry for coal preparation due to their ability to handle moist materials, lower energy consumption, and compact design. They integrate grinding, drying, and classification in a single unit, making them ideal for direct firing systems. Key benefits include:

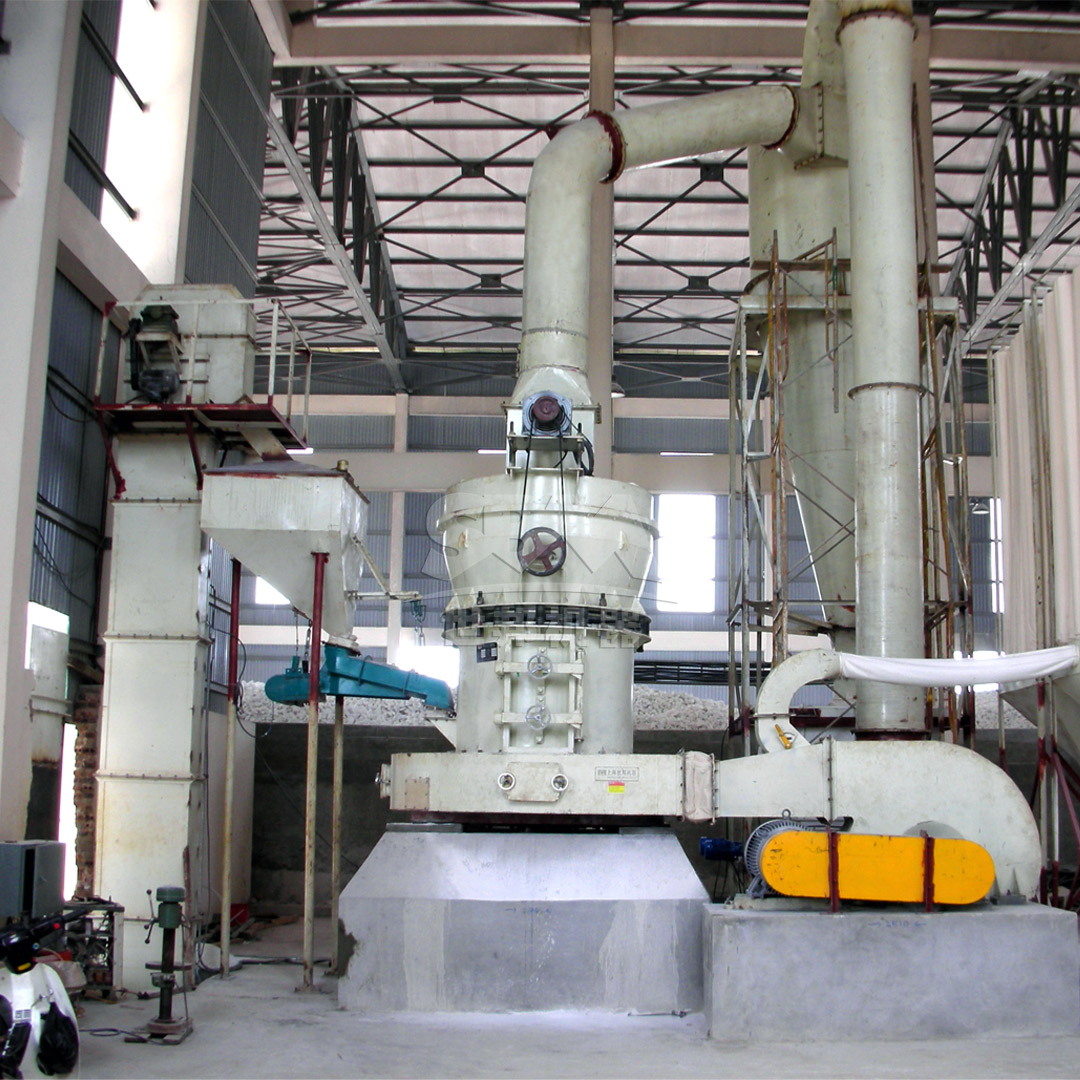

Our LM Series Vertical Roller Mill is specifically designed for coal grinding applications. With input sizes up to 50mm and output fineness adjustable between 30-325 mesh (600-45μm), it delivers high capacity ranging from 3 to 250 t/h depending on the model. The mill features a durable design with wear-resistant grinding elements and intelligent control systems for optimal performance. For instance, the LM190M model handles 26-40 t/h with a main motor power of 400 kW, producing coal powder with fineness of 5-20% R0.08mm, ideal for kiln combustion.
For applications requiring exceptionally fine coal powder (e.g., for advanced low-NOx burners or gasification processes), ultrafine mills are the preferred choice. These mills achieve fineness levels up to 2500 mesh (5μm) with high precision and efficiency.
Our SCM Series Ultrafine Mill excels in producing superfine coal powder with D97 ≤ 5μm. It offers remarkable energy efficiency, consuming 30% less power compared to jet mills while doubling the output. The mill features a vertical turbine classifier for accurate particle size cut and a pulse dust collection system ensuring environmental compliance. For example, the SCM1680 model processes 5-25 t/h with a main motor power of 315 kW, making it suitable for large-scale cement plants seeking to enhance combustion efficiency and reduce emissions.
Once coal is pulverized, consistent and reliable feeding to the kiln burner is critical for stable operation. Modern feeding systems utilize precision metering devices, such as rotary valves and screw feeders, coupled with advanced control algorithms to maintain optimal coal-to-air ratios. Key considerations include:
Innovations like gravimetric feeders and pneumatic conveying systems ensure accurate mass flow rates, while explosion-proof designs enhance safety. Proper feeding technology complements advanced grinding by delivering uniform fuel quality to the burner, maximizing kiln efficiency.
A cement plant in Asia upgraded its coal preparation system by replacing traditional ball mills with our LM Vertical Roller Mills. The results were significant:
This case highlights the tangible benefits of modern grinding technology in enhancing overall kiln performance.
Optimizing cement kiln efficiency hinges on advanced coal fine powder preparation and feeding technologies. Investing in high-performance grinding systems like the LM Vertical Roller Mill for general coal grinding and the SCM Ultrafine Mill for specialized fine powder needs can lead to substantial energy savings, improved product quality, and reduced environmental impact. As the cement industry continues to evolve towards greater sustainability, embracing these innovations is not just beneficial but essential for competitive and responsible operation.
