The production of high-quality anodes is a critical process in aluminum smelting, and the quality of the raw materials, particularly petroleum coke, plays a pivotal role. Petroleum coke (petcoke), a carbonaceous solid derived from oil refinery coker units, must be ground to a precise and consistent fineness to ensure the desired properties of the final anode. The choice of grinding equipment is therefore not merely an operational decision but a strategic one that impacts product quality, production efficiency, energy consumption, and overall plant economics. This article provides a comprehensive guide to selecting the optimal petroleum coke grinding mill for your anode production line, focusing on key technical parameters, operational considerations, and advanced mill technologies.
In the Hall-Héroult process for aluminum production, carbon anodes are consumed to facilitate the electrolytic reduction of alumina. These anodes are primarily composed of a mixture of calcined petroleum coke (the aggregate), coal tar pitch (the binder), and recycled anode butts. The particle size distribution (PSD) of the ground calcined petcoke is paramount. A well-controlled PSD ensures:
Typically, the target fineness for anode-grade petcoke is a Blaine surface area ranging from 2,800 to 3,500 cm²/g or a particle size where 100% passes through a 100-mesh (150μm) screen, with a significant portion (often D50) in the range of 45-75 microns.
| Fraction | Typical Target (% retained) | Importance |
|---|---|---|
| +100 mesh (+150 μm) | 0% | Eliminates large particles that disrupt packing |
| -100/+200 mesh (150-75 μm) | 15-25% | Provides the structural skeleton of the anode |
| -200/+325 mesh (75-45 μm) | 20-30% | Fills voids between larger particles |
| -325 mesh (-45 μm) | 45-55% | Fines coat particles, enhancing bonding and conductivity |
Several types of grinding mills are employed in the industry, each with its own advantages and limitations. The choice depends on capacity requirements, desired fineness, energy efficiency, and capital and operational expenditure (CAPEX/OPEX).
Hammer mills are impact-based crushers/grinders that use swinging hammers on a rotating shaft to shatter material against breaker plates. They are excellent for primary crushing or coarse grinding of petcoke to a top size of 1-3mm.
These are traditional tumbling mills that use steel balls as the grinding media. Material is fed into a rotating cylinder and is ground by impact and attrition as the balls cascade.
VRMs have become the industry standard for efficient petcoke grinding. Material is fed onto a rotating grinding table and is crushed by hydraulically pressurized grinding rollers.

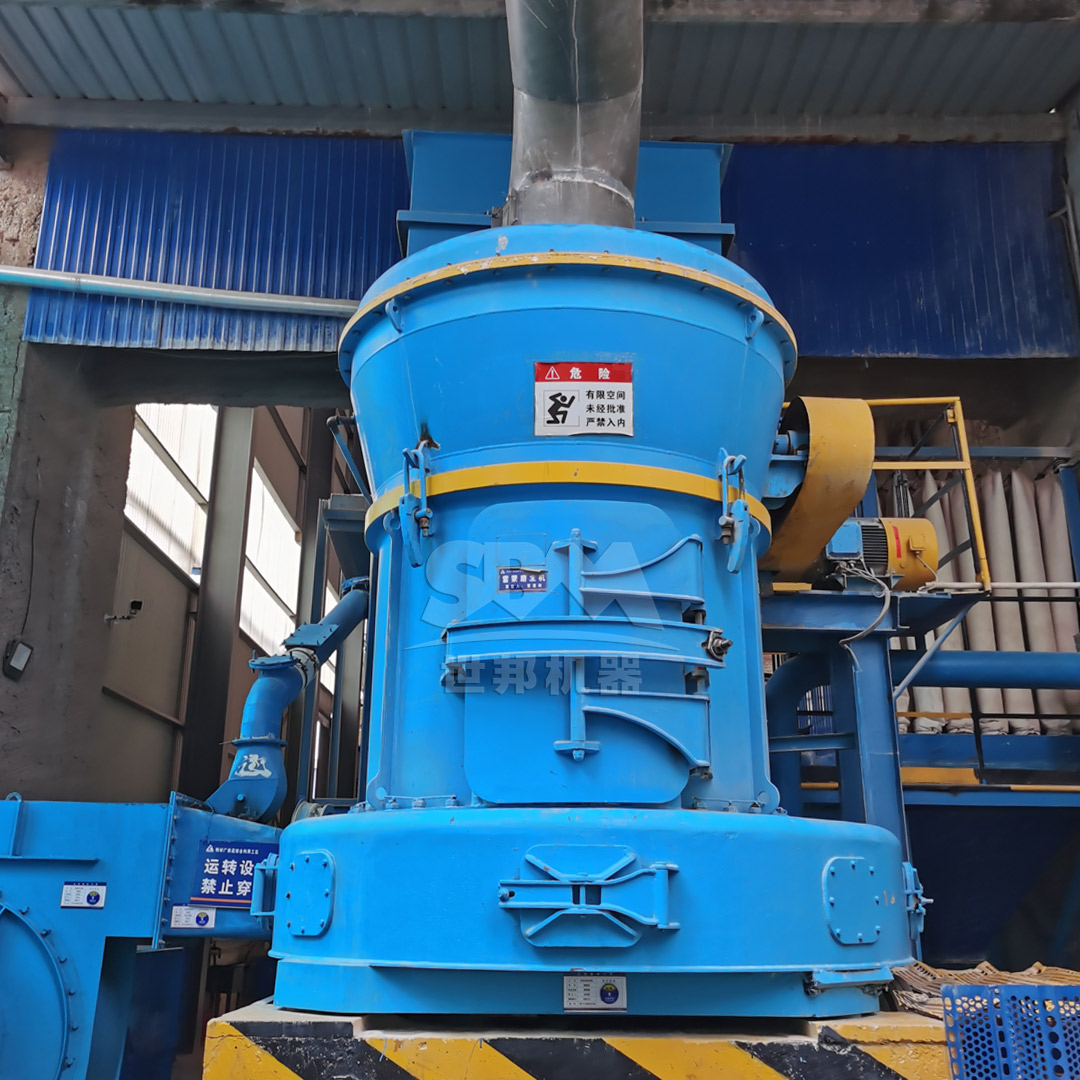

These are medium-speed mills that use spring-loaded rollers to crush material against a stationary grinding ring. A built-in classifier ensures that only properly sized particles leave the mill.
Choosing the best mill requires a careful evaluation of your specific operational needs against the capabilities of available technology.
Match the mill’s capacity (e.g., 10 TPH, 25 TPH, 50 TPH) to your anode plant’s production rate. Ensure the mill can handle peak loads and has a slight margin for future expansion. Consider the grindability (Hardgrove Grindability Index – HGI) of your specific petcoke source, as a lower HGI (harder coke) will reduce mill throughput.
The mill must consistently deliver the target PSD. Mills with integrated dynamic classifiers, like VRMs, offer superior control over the cut point and steepness of the PSD curve compared to static separation systems. This is crucial for optimizing anode density.
Grinding is an energy-intensive process. Vertical Roller Mills typically offer the lowest specific energy consumption (kWh/ton), which is a major OPEX advantage. Evaluate the total system power draw, including the main motor, classifier, and fan.
Abrasive petcoke causes wear on grinding elements. Look for mills designed with durable, replaceable wear parts (roller tires, grinding tables, liners) made from high-chrome or nickel-hard alloys. Ease of maintenance and part replacement directly affects availability and operating costs.
Consider the entire system: feeding, grinding, classifying, and product collection. A compact, integrated system like a VRM often has a smaller footprint than a ball mill circuit with its separate classifiers and conveyors.
The mill must operate with minimal dust emissions. Modern mills are equipped with high-efficiency pulse jet baghouse filters that can achieve emission levels below 20 mg/Nm³. Noise levels should also be considered for worker safety.
For modern, high-capacity aluminum smelters, the LM Series Vertical Roller Mill represents the optimal solution for petroleum coke grinding. Its design philosophy aligns perfectly with the demands of anode production: high efficiency, precise control, and robust operation.
The LM Mill operates on the principle of bed comminution. Material is fed onto the center of a rotating grinding table and is flung outwards under centrifugal force under the heavily loaded grinding rollers. This creates a dense, compacted bed of particles that is crushed with extreme efficiency. The ground material is then transported by air to an integral high-efficiency classifier, which ensures only particles meeting the fineness requirement exit the mill. The coarse particles are rejected and fall back to the grinding table for further size reduction.

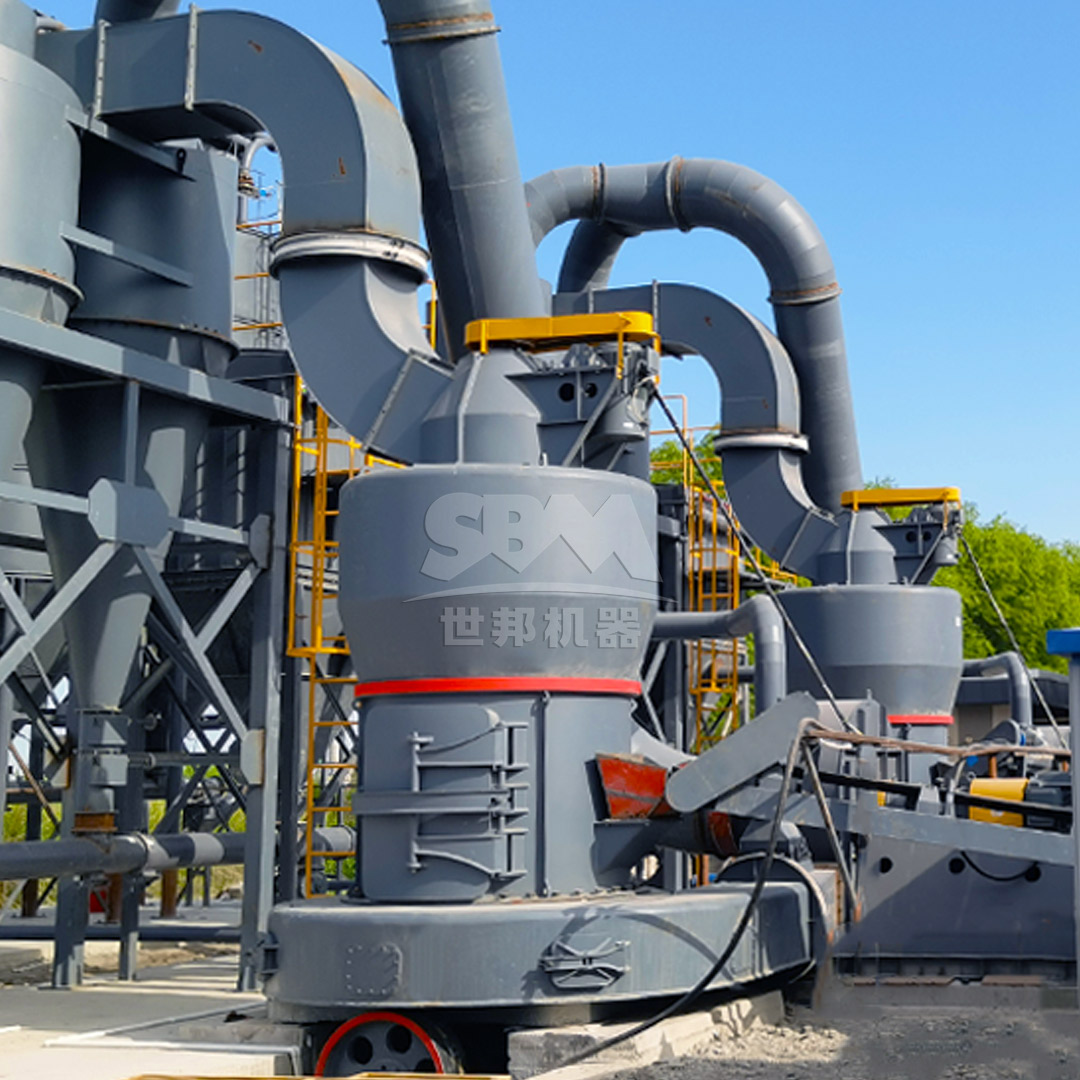

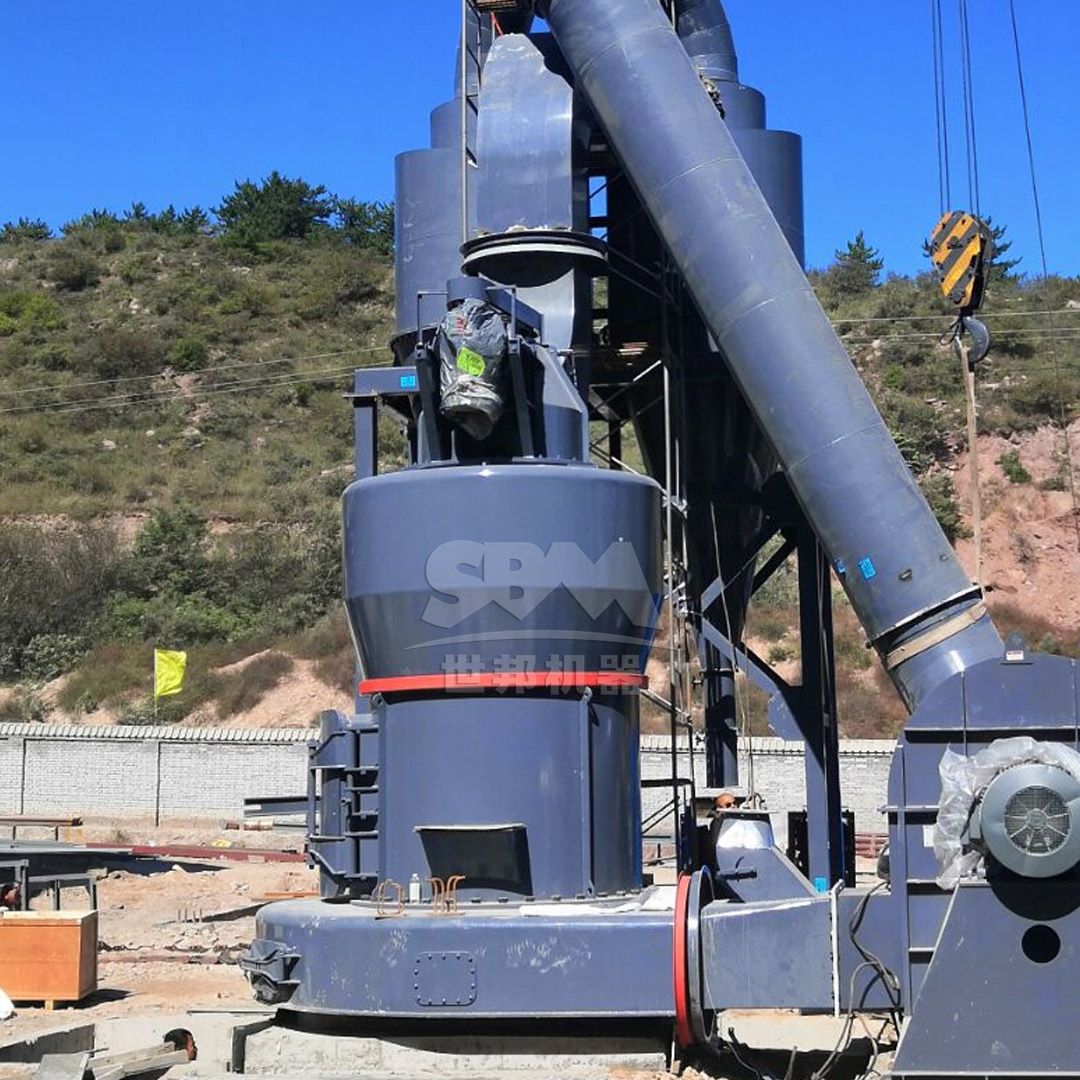

For smelters with medium-capacity requirements or those seeking a highly reliable and modernized version of the classic roller mill, the MTW Series Trapezium Mill is an outstanding choice. It incorporates numerous technological advancements over traditional designs.
The MTW Mill features a curved surface blade design that increases the working area and efficiency. Its bevel gear integral transmission system is compact and transmits power with 98% efficiency. The innovative internal air-circulating system reduces the power consumption of the auxiliary fan. Furthermore, its patented technology for lubricating the grinding roller assembly enhances reliability and simplifies maintenance.
Selecting the right petroleum coke grinding mill is a critical decision that reverberates through the entire aluminum anode production process. While several mill types can perform the task, the industry’s clear direction is toward highly efficient, controllable, and reliable vertical roller mills. The LM Series Vertical Roller Mill stands out as the premium solution for large-scale smelters, offering unmatched energy savings and product quality control. For operations requiring a robust and efficient solution with a different capacity or investment profile, the technologically advanced MTW Series Trapezium Mill presents a compelling alternative. A thorough technical evaluation of your specific coke properties, production targets, and economic goals will lead you to the best mill to optimize your anode production and secure a competitive advantage in the aluminum market.
