The paints and coatings industry is in a constant state of evolution, driven by demands for higher performance, improved durability, and enhanced aesthetic qualities. At the heart of many of these advancements lies a critical raw material: ultrafine marble powder. This functional filler is no longer a simple extender; it is a key component that directly influences a coating’s opacity, gloss, scrub resistance, weatherability, and overall finish. The transition from coarse to ultrafine fillers represents a significant technological leap, enabling formulators to create products that meet stringent industrial and architectural standards.
The efficacy of marble powder in these applications is almost entirely dependent on its particle size distribution (PSD) and purity. Ultrafine grades, particularly those with a top cut (D97) of 5 microns or less, provide a much larger surface area. This increased surface area improves dispersion within the polymer matrix, leading to a more homogeneous film with enhanced mechanical properties. Furthermore, the controlled morphology of finely ground marble particles reduces light scattering, which can improve the clarity and color development of tinted coatings while maintaining excellent hiding power.
Producing marble powder that meets the exacting specifications of the high-performance coatings industry is a complex engineering challenge. It is not merely about reducing particle size; it is about doing so efficiently, consistently, and without contaminating the product. The primary hurdles include:

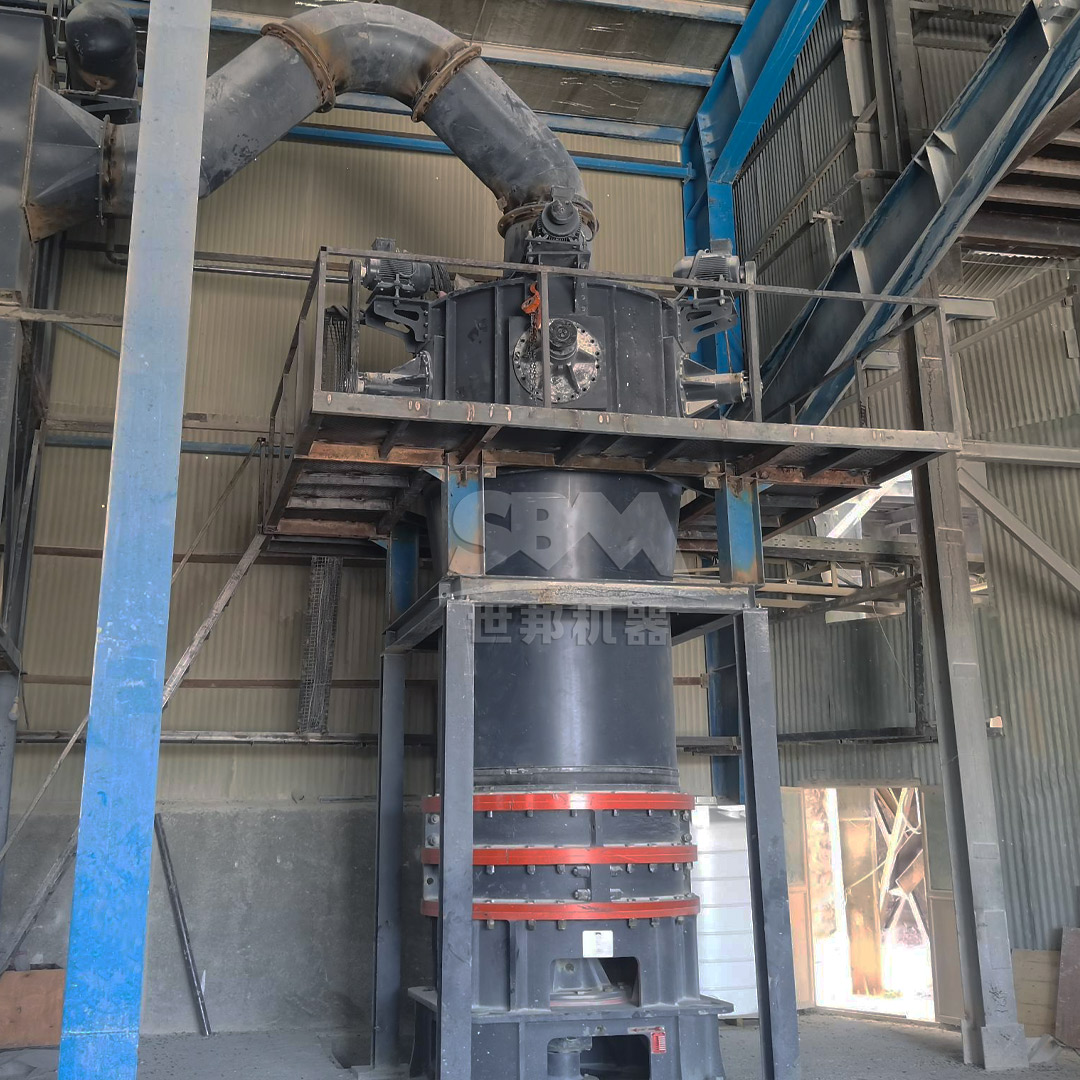

To overcome these challenges, advanced milling technology is required. Our SCM Series Ultrafine Mill is engineered specifically for the production of high-purity, ultrafine mineral powders like marble. It represents a paradigm shift from conventional crushing methods, offering a balanced solution of precision, efficiency, and reliability.
The core of the SCM Mill’s superiority lies in its integrated design philosophy. It is not merely a grinder but a complete size reduction system. The mill utilizes a unique grinding principle where the main motor drives a multi-layer grinding ring to rotate. Material is fed into the grinding chamber and, through centrifugal force, is dispersed evenly into the grinding raceway. Here, it is subjected to intense pressure from the rollers before being progressively finer ground through multiple layers. This layered grinding approach is far more efficient than single-pass systems, reducing energy waste and minimizing heat buildup.
The design features of the SCM Mill directly address the needs of paint and coating manufacturers:
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Feed Size (mm) | Final Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5 – 4.5 | 75 | ≤20 | 325-2500 |
| SCM900 | 0.8 – 6.5 | 90 | ≤20 | 325-2500 |
| SCM1000 | 1.0 – 8.5 | 132 | ≤20 | 325-2500 |
| SCM1250 | 2.5 – 14 | 185 | ≤20 | 325-2500 |
| SCM1680 | 5.0 – 25 | 315 | ≤20 | 325-2500 |
For applications requiring a slightly coarser fill or for initial size reduction stages, our MTW Series Trapezium Mill presents an excellent solution. This robust and versatile mill is designed for high-capacity processing with superior efficiency. Its curved air duct design minimizes flow resistance and energy loss, while its conical gear overall transmission achieves a remarkable 98% transmission efficiency. The wear-resistant volute structure and combined shovel blades are designed to minimize maintenance costs and downtime. With an output fineness ranging from 30 to 325 mesh (0.038mm), the MTW Mill is perfectly suited for producing high-quality marble fillers for a wide array of coating systems, including textured paints and primers where the absolute finest particle size is not the primary requirement.
The pursuit of superior paint and coating performance begins with the quality of its raw materials. Ultrafine marble powder, produced to exacting standards, is a cornerstone of this pursuit. By investing in advanced milling technology like the SCM Ultrafine Mill and the MTW Series Trapezium Mill, producers can ensure a consistent, high-purity product that empowers formulators to innovate and excel. These mills offer a compelling combination of precision, efficiency, and environmental responsibility, transforming raw marble into a value-added component that elevates the final coating product. For any operation serious about serving the high-performance coatings market, this technology is not just an option; it is a necessity.
