1000 Mesh Marble Powder Grinding Mill – Complete Equipment Guide

1000 Mesh Marble Powder Grinding Mill – Complete Equipment Guide

Introduction

The production of high-purity, ultra-fine marble powder, particularly at demanding fineness levels like 1000 mesh (approximately 15 microns), represents a significant technological challenge in the modern industrial minerals sector. This fine powder is a critical raw material in industries ranging from plastics, paints, and coatings to pharmaceuticals and high-end paper manufacturing. Achieving consistent quality, high throughput, and energy efficiency requires a deep understanding of grinding technology and the selection of appropriate equipment. This comprehensive guide delves into the technical considerations for producing 1000-mesh marble powder and explores the most suitable milling solutions, with a focus on advanced, integrated systems.

Understanding the Challenge: Grinding Marble to 1000 Mesh

Marble, primarily composed of calcite (CaCO3), is a relatively soft mineral (Mohs hardness ~3). However, grinding it to a uniform 1000 mesh presents specific hurdles:

• Particle Size Distribution (PSD): The target is not just a top size of 15µm but a narrow, consistent PSD. Wide distributions can negatively affect product performance in downstream applications.
• Contamination & Whiteness: The grinding process must not introduce metallic contamination from wear parts, which can degrade the brightness and chemical purity of the final powder.
• Thermal Sensitivity: Prolonged grinding can generate heat, potentially causing dehydration or even degradation of the carbonate, affecting quality.
• Energy Efficiency: The fine grinding stage is inherently energy-intensive. Selecting a mill that minimizes specific energy consumption (kWh/ton) is crucial for operational economics.

Key Equipment Selection Criteria

When choosing a mill for 1000-mesh marble production, several factors must be evaluated in tandem:

Recommended Mill Technologies for 1000 Mesh Marble

Based on the stringent requirements, two primary technological pathways are highly effective: advanced vertical roller mills with fine-grinding capabilities and specialized ultra-fine grinding mills.

1. Ultrafine Grinding Mill (Specialized for 325-2500 Mesh)

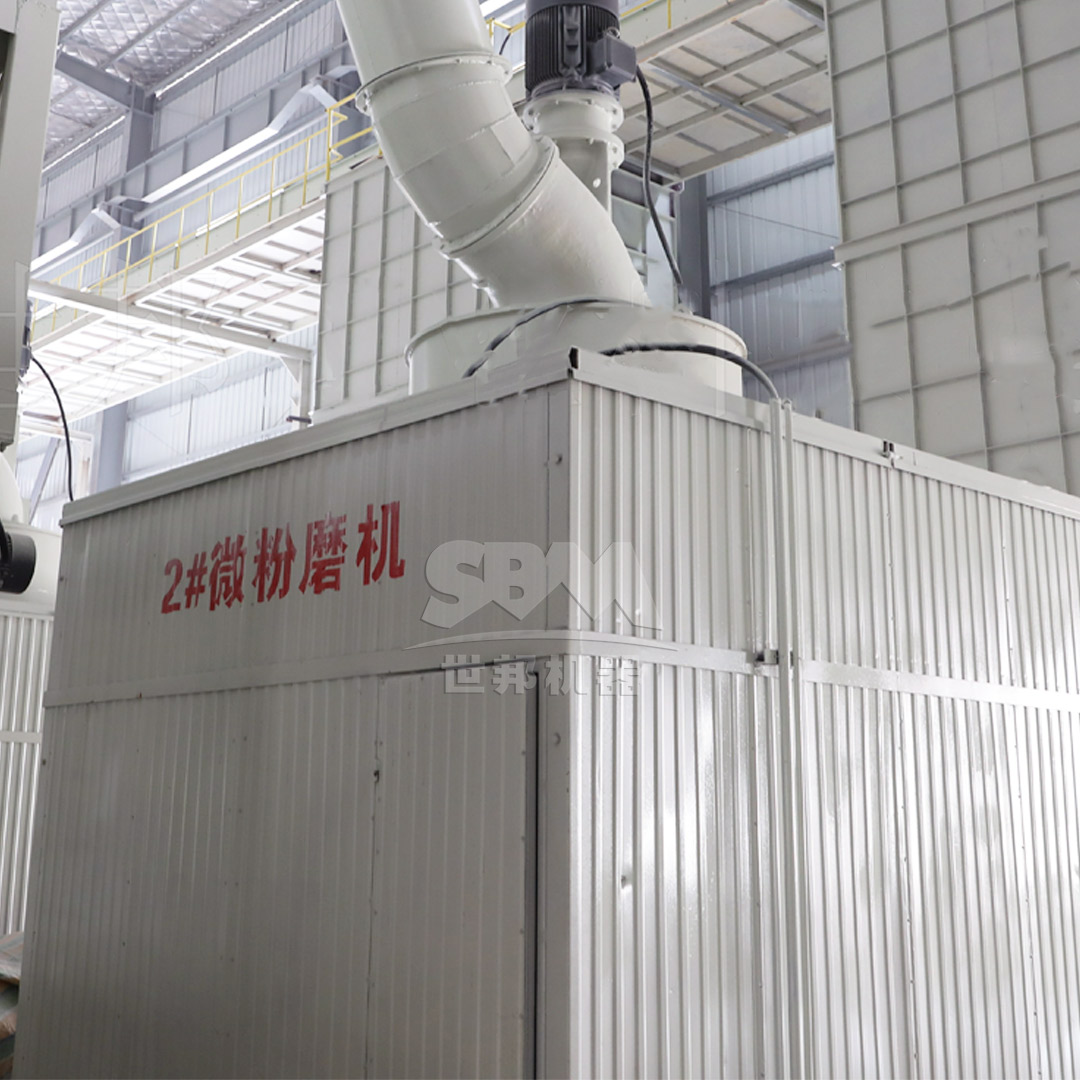

For dedicated, high-volume production of ultra-fine marble powder, a mill engineered specifically for the sub-20-micron range is the optimal choice. Our SCM Series Ultrafine Mill is a flagship solution in this category, designed to excel in the 1000-mesh regime.

Why the SCM Series is Ideal for 1000 Mesh Marble:

• Precision Classification: Its vertical turbine classifier is the heart of the system, enabling precise particle size cutting at 1000 mesh (15µm). This ensures no coarse powder is mixed into the final product, guaranteeing uniformity.
• High Efficiency & Energy Saving: Utilizing a layered grinding principle with roller pressure, it offers a capacity approximately twice that of traditional jet mills while consuming about 30% less energy. Intelligent control with automatic granularity feedback maintains optimal performance.
• Superior Product Purity: The grinding rollers and rings can be fitted with special, wear-resistant ceramic or hard alloy materials, drastically reducing iron contamination and preserving the natural whiteness of the marble.

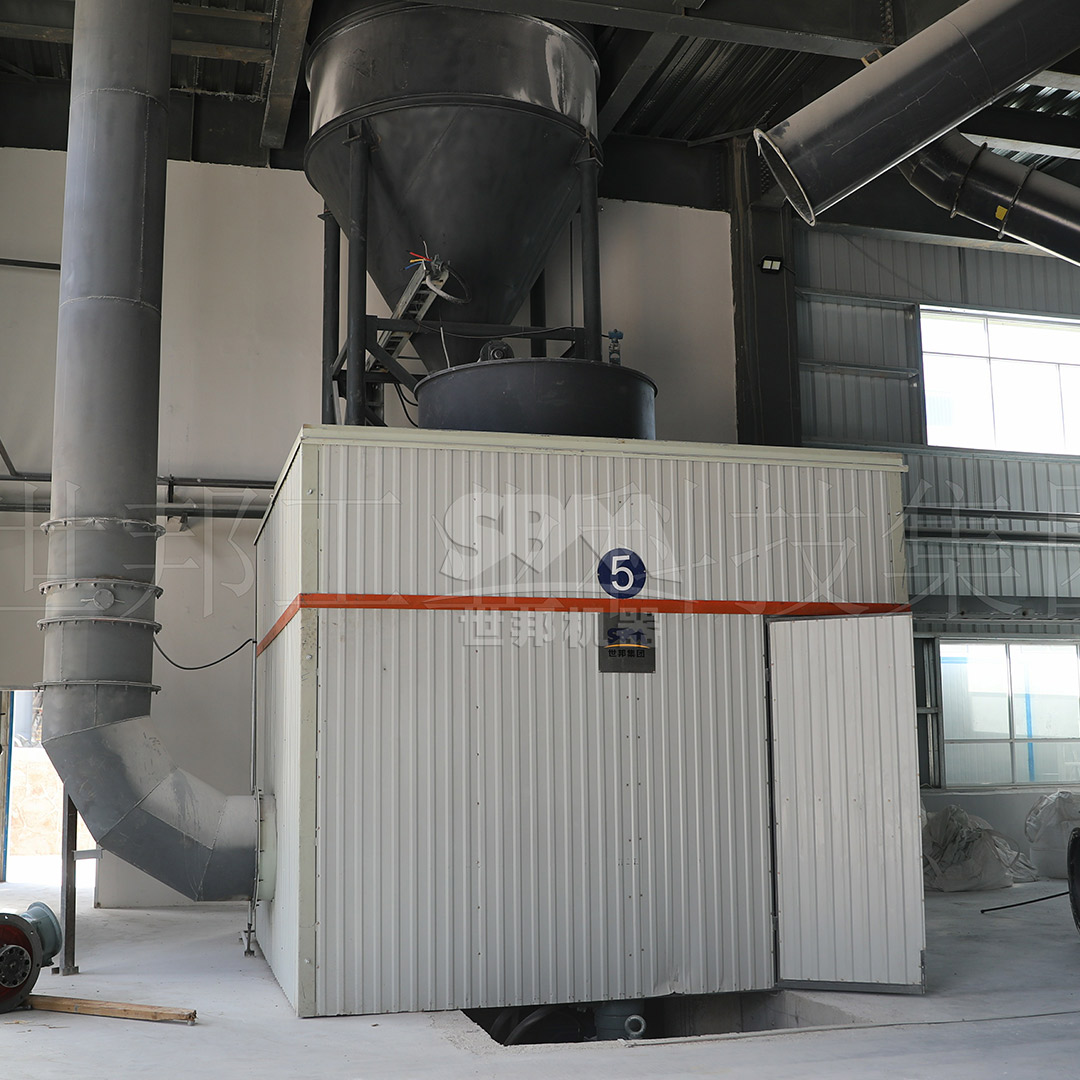

• Complete & Eco-friendly System: The mill is a full negative-pressure system integrating grinding, classification, and collection. Pulse dust collection efficiency exceeds 99.9%, ensuring a clean workshop environment and meeting stringent emission standards.

*Capacity varies based on material hardness, moisture, and required fineness.

2. Vertical Roller Mill with Fine-Grinding Capabilities

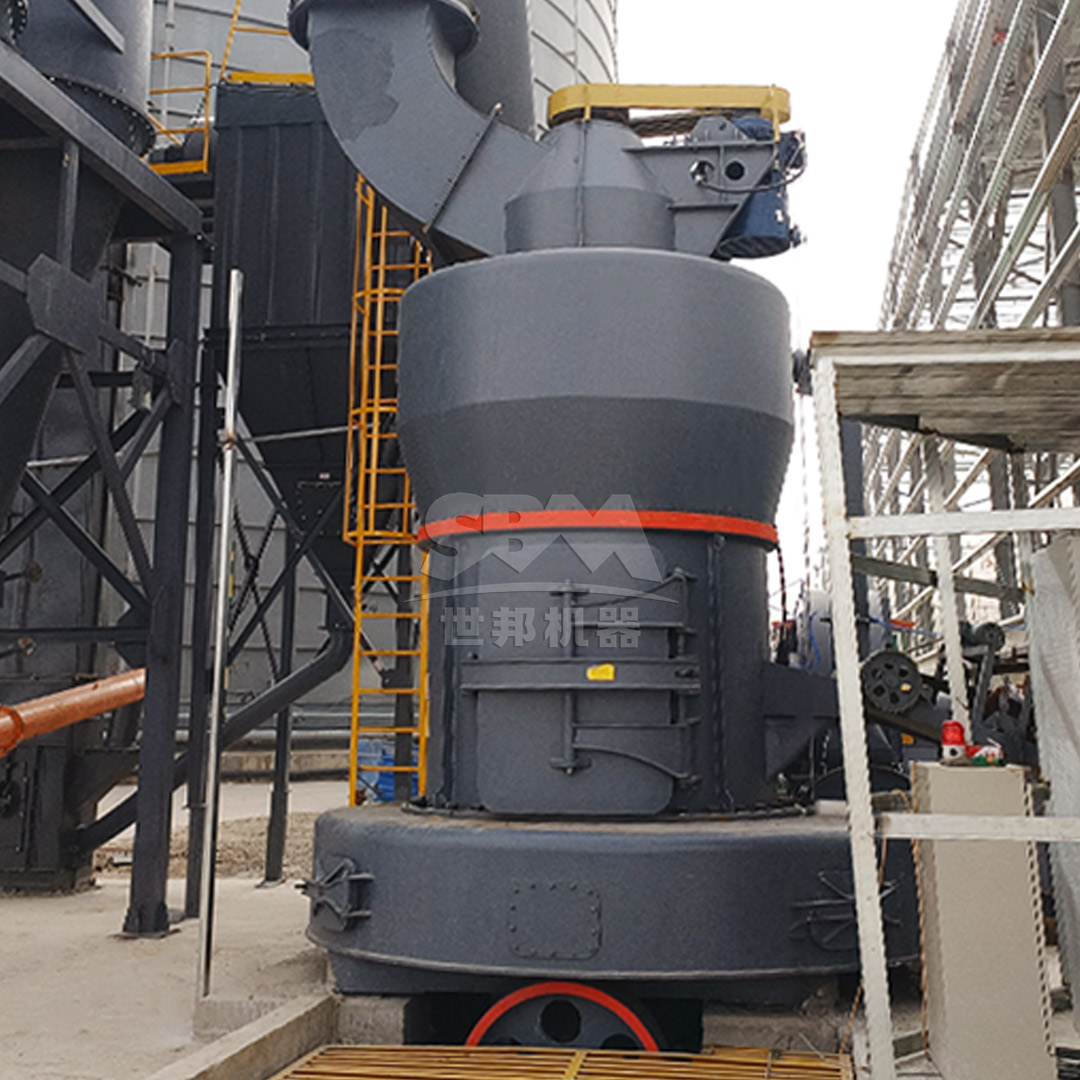

For projects that may require flexibility to produce a range of products from coarser grades down to 1000 mesh, or for processing larger initial feed sizes, a robust vertical roller mill is an excellent choice. Our LM Series Vertical Roller Mill, particularly the fine-powder models (LMX series), offers a versatile and efficient solution.

Advantages of the LM Series for Fine Marble Powder:

• Integrated Design: It combines crushing, grinding, drying (if needed), classification, and conveying in a single unit, reducing footprint by 50% and civil engineering costs.
• Low Operating Cost: The bed grinding principle between rollers and a rotating table is highly energy-efficient, consuming 30-40% less power than traditional ball mill systems for similar output. Wear parts have a significantly extended service life.
• Intelligent Control: An expert-level automatic control system allows for real-time monitoring and adjustment of key parameters, ensuring stable product quality at 1000 mesh with minimal manual intervention.

Complete System Configuration Guide

A successful 1000-mesh marble powder line involves more than just the grinding mill. A typical, recommended system configuration includes:

1. Raw Material Preparation: Jaw crusher to reduce marble blocks to <20mm.
2. Storage & Feeding: Silo with vibrating feeder for consistent, controlled feed to the mill.
3. Grinding & Classification Core: SCM Ultrafine Mill or LM Vertical Mill (fine-powder model). This is the heart of the process.
4. Product Collection: Two-stage system: cyclone separator for primary collection and a high-efficiency pulse jet bag filter for final polishing and environmental compliance.
5. Packaging & Storage: Screw conveyor transferring powder to silos, followed by automatic valve bag packers or big bag stations.
6. Electrical & Control System: Centralized PLC control cabinet for automated, safe, and efficient operation of the entire plant.

Conclusion

Producing high-quality 1000-mesh marble powder is a technically demanding but highly rewarding endeavor. The key to success lies in selecting grinding technology that prioritizes precise classification, operational efficiency, product purity, and system reliability. For dedicated ultra-fine production, the SCM Series Ultrafine Mill stands out with its targeted design and proven performance. For more flexible or large-scale operations starting with bigger feed, the LM Series Vertical Roller Mill offers an integrated, low-cost-per-ton solution. Investing in the right complete equipment package from a knowledgeable supplier is the most critical step towards establishing a profitable and sustainable marble powder business.
