The manufacturing of high-performance optical fibers demands exceptionally pure quartz powder with precise particle size distribution and minimal contamination. Advanced grinding techniques are paramount to achieving the stringent requirements for transmission loss, mechanical strength, and environmental stability. This article explores the critical grinding technologies and equipment necessary for producing the ultra-fine, high-purity silica glass that forms the backbone of modern telecommunications and laser systems.
Quartz, or silicon dioxide (SiO₂), is the primary raw material for optical fiber production. Its inherent hardness (7 on the Mohs scale), chemical inertness, and high melting point present significant challenges in comminution. The grinding process must not only reduce the particle size to the micron and sub-micron range but also preserve chemical purity and prevent the introduction of metallic contaminants that can drastically increase optical attenuation. Furthermore, the particle size distribution must be tightly controlled, as agglomerates or overly coarse particles can lead to bubbles, inclusions, and incomplete sintering during the preform manufacturing process, creating structural defects in the final fiber.
Modern quartz processing for optical applications has moved beyond traditional ball milling. The industry now relies on a combination of mechanical and air-classification technologies to achieve the desired product specifications.
This technique uses high-pressure jets of air or steam to accelerate particles, causing them to collide and fracture. It is a ‘cold’ grinding process, ideal for heat-sensitive materials like quartz, as it minimizes thermal degradation. The absence of moving grinding media also ensures minimal contamination. However, its high energy consumption and lower throughput can be limiting factors for large-scale production.
Grinding is often coupled with integrated or separate high-efficiency air classifiers. These devices use centrifugal forces to separate particles based on size and mass. For optical fiber quartz, multi-wheel, variable-speed dynamic classifiers are essential for achieving the sharp cuts required in the D97 ≤ 5μm range, ensuring no oversized particles contaminate the final product.
For the initial and intermediate grinding stages, advanced vertical roller mills offer a compelling combination of high capacity, energy efficiency, and control. These mills utilize multiple rollers to apply compressive force to a bed of material on a rotating table. The key for quartz application is the use of ceramic or specially hardened alloy grinding elements to minimize metallic contamination. The ground material is then immediately air-classified internally, with coarse particles recycled for further grinding.

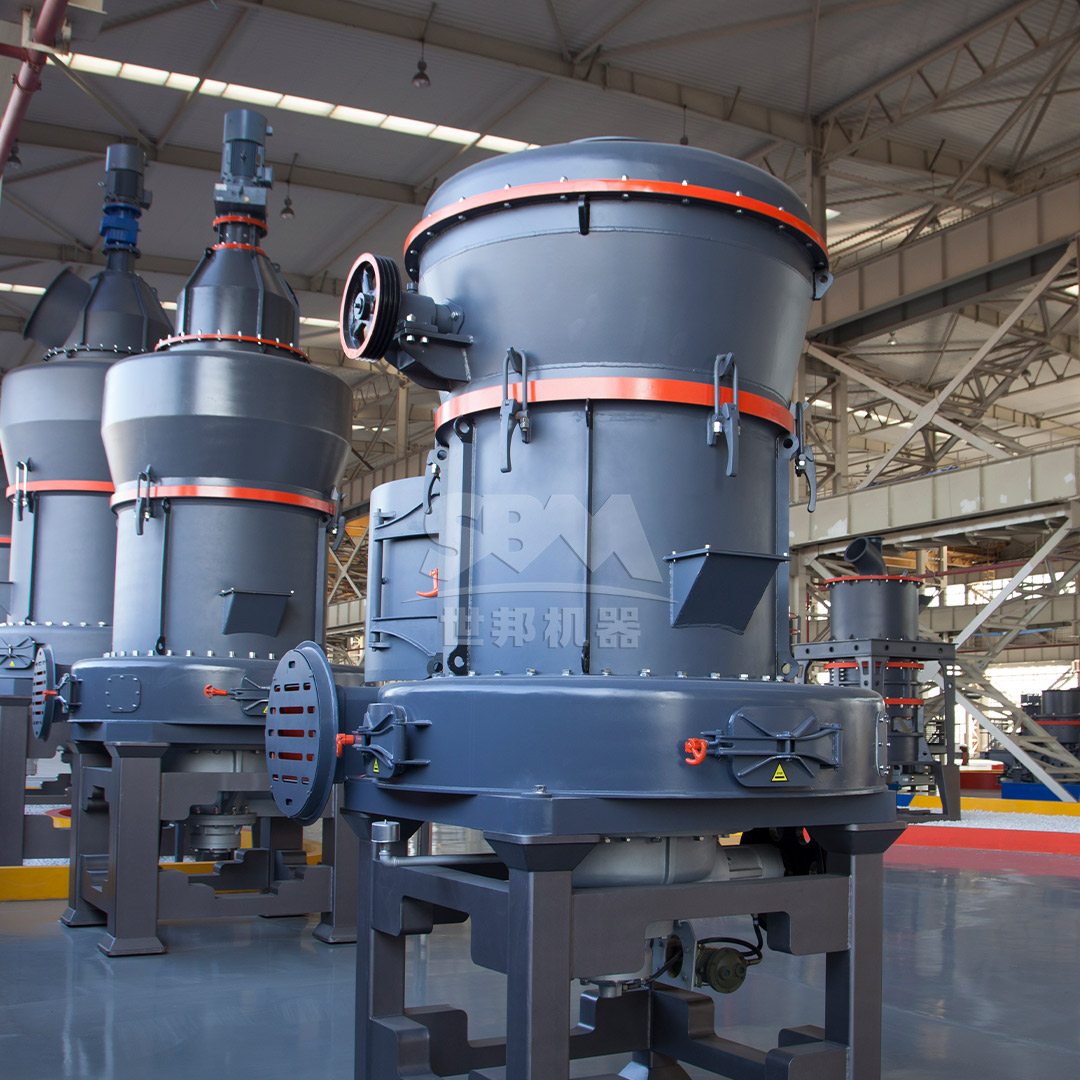

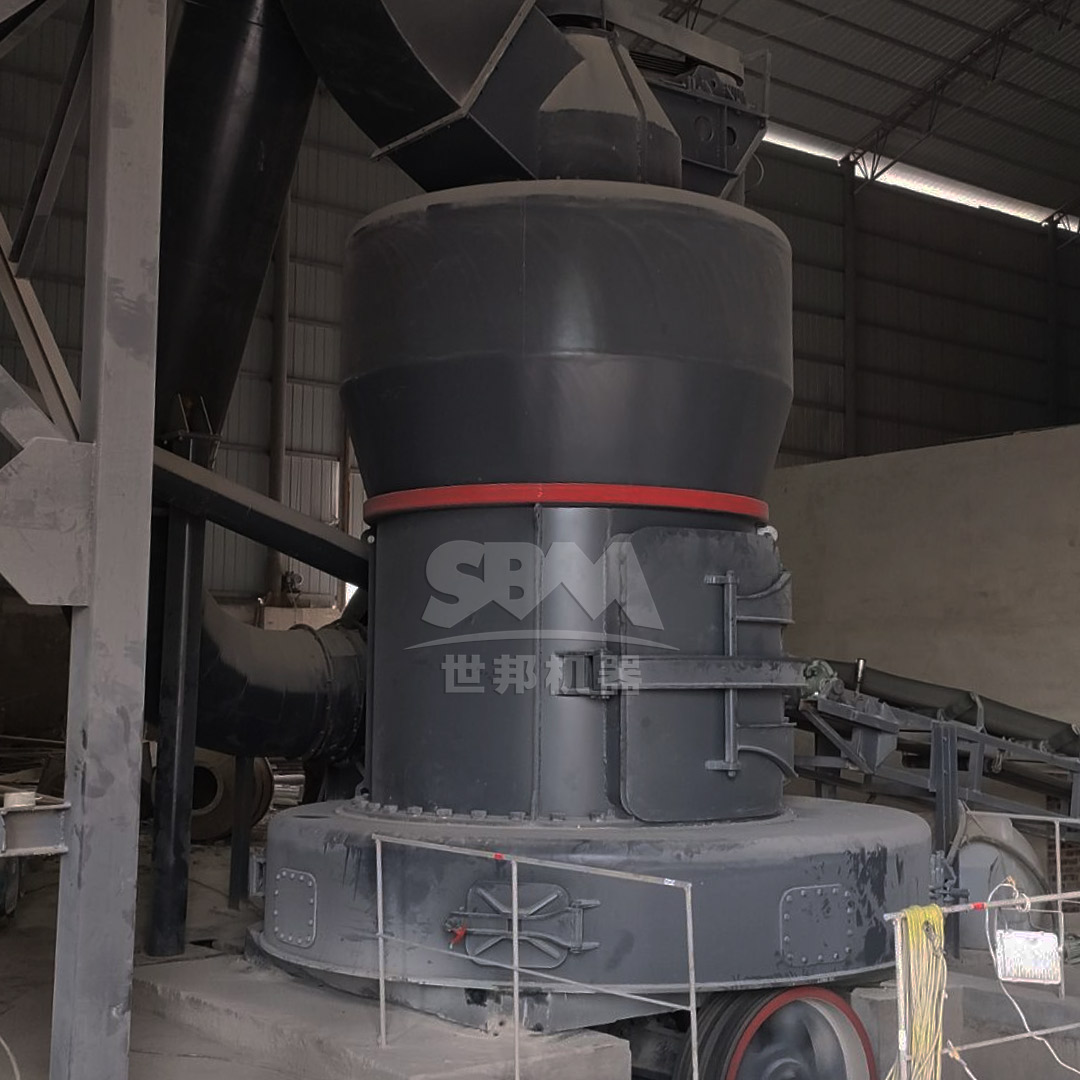

For the final stage of ultra-fine grinding of quartz to the exacting standards required for optical fibers, our SCM Ultrafine Mill series represents an optimal solution. This mill is engineered to address the specific challenges of processing hard, abrasive materials to a consistent, fine powder with low contamination.
The SCM mill’s design is particularly suited for this application. Its vertical turbine classification system ensures precise particle size control, delivering a final product in the range of 325-2500 mesh (D97 ≤ 5μm), which is critical for preform synthesis. The special material roller and grinding ring, often lined with ceramic composites, significantly extend service life and, most importantly, prevent iron contamination—a paramount concern for optical performance.
Furthermore, its high efficiency and energy savings—offering twice the capacity of jet mills with 30% lower energy consumption—make it a cost-effective choice for high-volume production. The fully enclosed system with pulse dust removal guarantees an environmentally clean operation with dust emissions well below international standards, protecting both the product purity and the workplace.
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Output Fineness (mesh) |
|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | 325-2500 |
| SCM900 | 0.8-6.5 | 90 | 325-2500 |
| SCM1000 | 1.0-8.5 | 132 | 325-2500 |
| SCM1250 | 2.5-14 | 185 | 325-2500 |
| SCM1680 | 5.0-25 | 315 | 325-2500 |
Achieving consistent quality requires more than just advanced equipment; it demands a holistic approach to process optimization. This includes rigorous control of feed material size and consistency, real-time monitoring of grinding pressure and classifier speed, and precise management of the internal airflow and temperature.
Sophisticated Process Control Systems (PCS) are integrated into modern mills like the SCM series, allowing for automated feedback loops that adjust operational parameters to maintain a constant product fineness despite variations in feed material or ambient conditions. This level of control is indispensable for optical fiber manufacturing.
Quality assurance is maintained through continuous sampling and analysis using laser particle size analyzers to monitor the PSD (Particle Size Distribution). Additionally, techniques like X-ray Fluorescence (XRF) are employed to detect and quantify any trace metallic impurities that may have been introduced during grinding.
The pursuit of higher bandwidth and lower signal loss in optical fibers drives the need for ever more advanced quartz grinding techniques. The transition from conventional milling to integrated, closed-loop systems featuring ultra-fine grinding mills and high-precision air classification is critical. Equipment such as the SCM Ultrafine Mill provides the necessary combination of precision, purity, and efficiency to produce the high-quality quartz powder that forms the foundation of the global communications network. By leveraging these advanced technologies and maintaining stringent process controls, manufacturers can meet the demanding material specifications required for the next generation of high-performance optical fibers.
