The glass manufacturing industry demands high-purity limestone powder with precise particle size distribution. Our advanced grinding mills provide optimal solutions for producing ultra-fine limestone powder with superior efficiency and environmental compliance.
| Parameter | Float Glass | Container Glass | Specialty Glass |
|---|---|---|---|
| CaCO3 Content | ≥98.5% | ≥97% | ≥99% |
| D50 Particle Size | 8-12μm | 15-25μm | 3-5μm |
| Moisture Content | ≤0.5% | ≤0.8% | ≤0.3% |
Conventional ball mills suffer from high energy consumption (45-50kWh/t) and wide particle distribution. Our innovative grinding solutions address these challenges through:

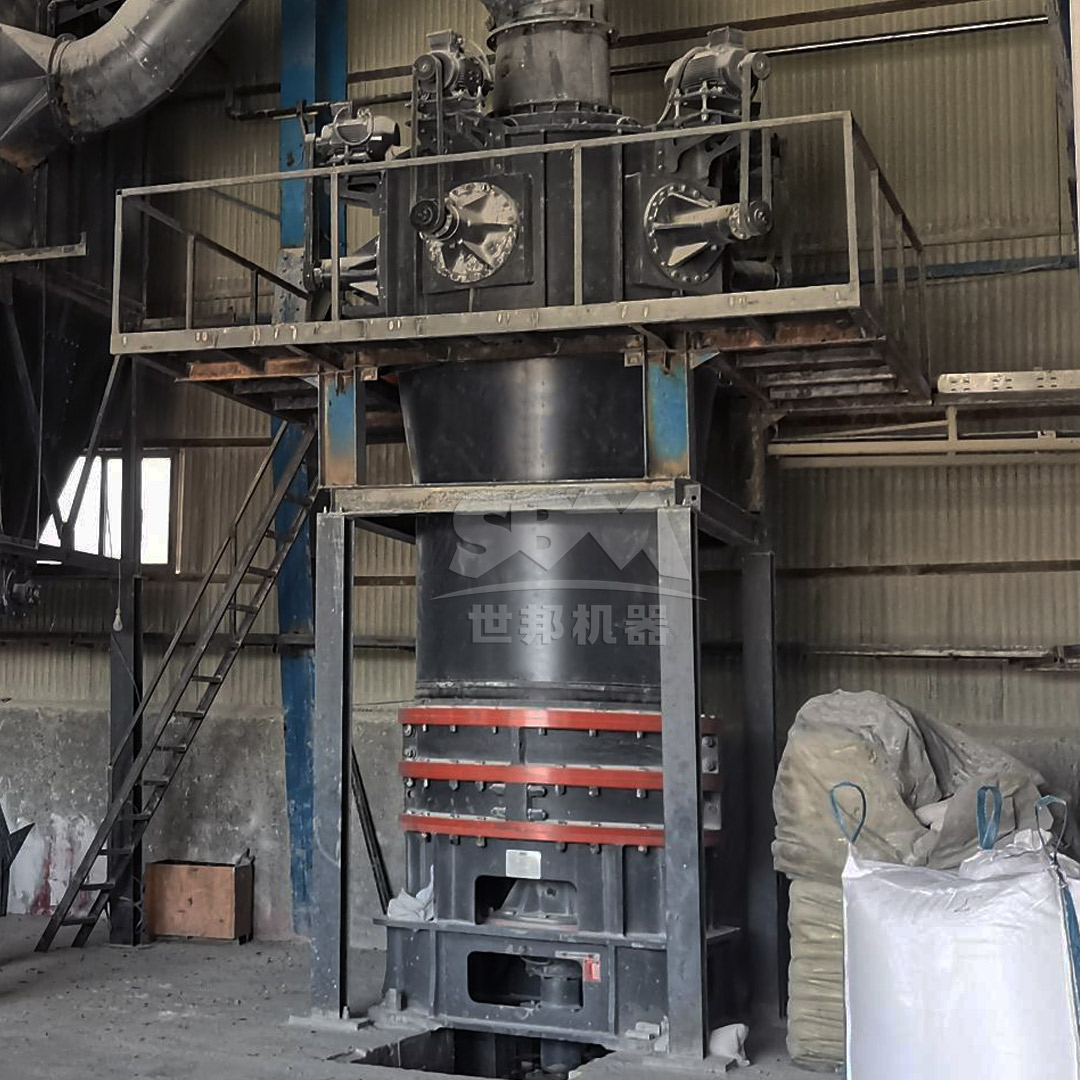

Our SCM Ultrafine Mill achieves remarkable 5μm fineness with D97≤8μm consistency, making it ideal for optical glass and LCD panel production:
| Model | Capacity (t/h) | Power (kW) | Energy Saving |
|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | 35% vs ball mill |
| SCM1250 | 2.5-14 | 185 | 40% vs jet mill |
Key advantages for glass manufacturers:
For container glass manufacturing requiring 30-100μm powder, our MTW175G model delivers 25t/h capacity with exceptional reliability:
A leading float glass producer achieved these results after installing our SCM1680 system:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Energy Consumption | 42kWh/t | 28kWh/t | 33% reduction |
| Particle Uniformity | D90/D10=8.7 | D90/D10=4.2 | 52% narrower distribution |
| Maintenance Cost | $0.38/t | $0.12/t | 68% savings |
Modern glass production requires grinding systems that combine precision, efficiency and sustainability. Our SCM and MTW series mills deliver industry-leading performance with:
Contact our technical team for customized limestone grinding solutions tailored to your specific glass formulation requirements.
