High-Performance Calcite Grinding Equipment for Enhanced Polymer Production

August 12, 2025

Introduction

The polymer industry demands ultra-fine calcite powders with consistent particle size distribution to enhance material properties such as tensile strength, thermal stability, and surface finish. Achieving these specifications requires advanced grinding technology capable of precision particle size control while maintaining energy efficiency. This article explores cutting-edge solutions for calcite processing, with a focus on equipment that delivers superior performance in polymer applications.

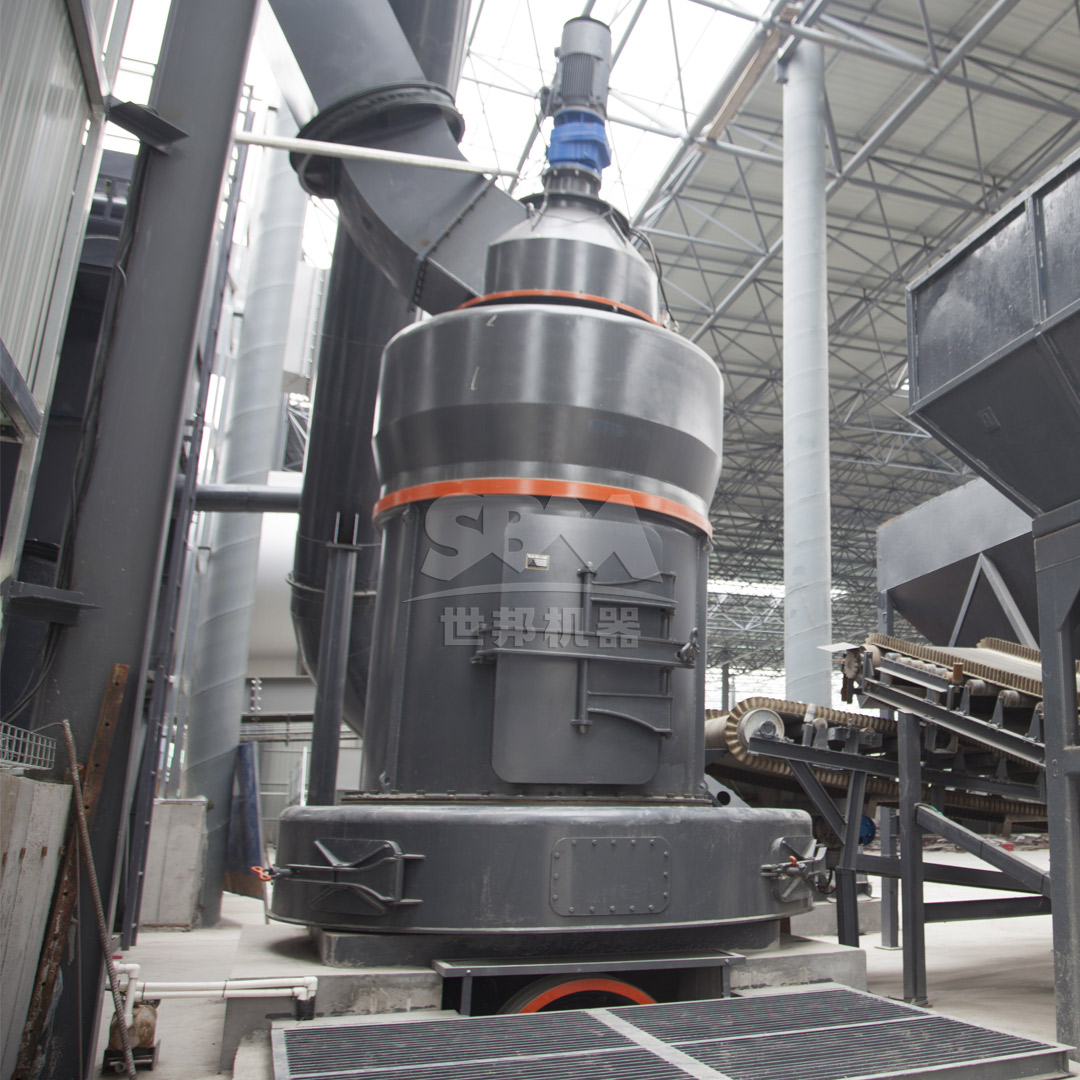

Calcite grinding process flow diagram

Material Challenges in Polymer Production

Calcite (CaCO₃) used as polymer filler must meet stringent requirements:

Particle size distribution: D97 ≤ 5μm for high-end applications
Whiteness retention: ≥ 95% after processing
Low iron contamination: ≤ 0.01% Fe₂O₃
Surface area: 2.5-5.5 m²/g (BET method)

Advanced Grinding Technologies

1. Ultrafine Grinding Systems

Modern calcite processing employs multi-stage grinding systems combining:

Technology	Particle Range	Energy Efficiency	Typical Applications
Impact Mills	45-250μm	15-25 kWh/t	Pre-grinding
Jet Mills	5-50μm	80-120 kWh/t	Final processing
Roller Mills	5-100μm	25-40 kWh/t	Integrated systems

2. Recommended Solutions

For polymer-grade calcite production, we recommend our SCM Ultrafine Mill series, which delivers:

Output fineness down to 5μm (D97)
Energy savings of 30% compared to conventional systems
Integrated pulse dust collection with 99.9% efficiency

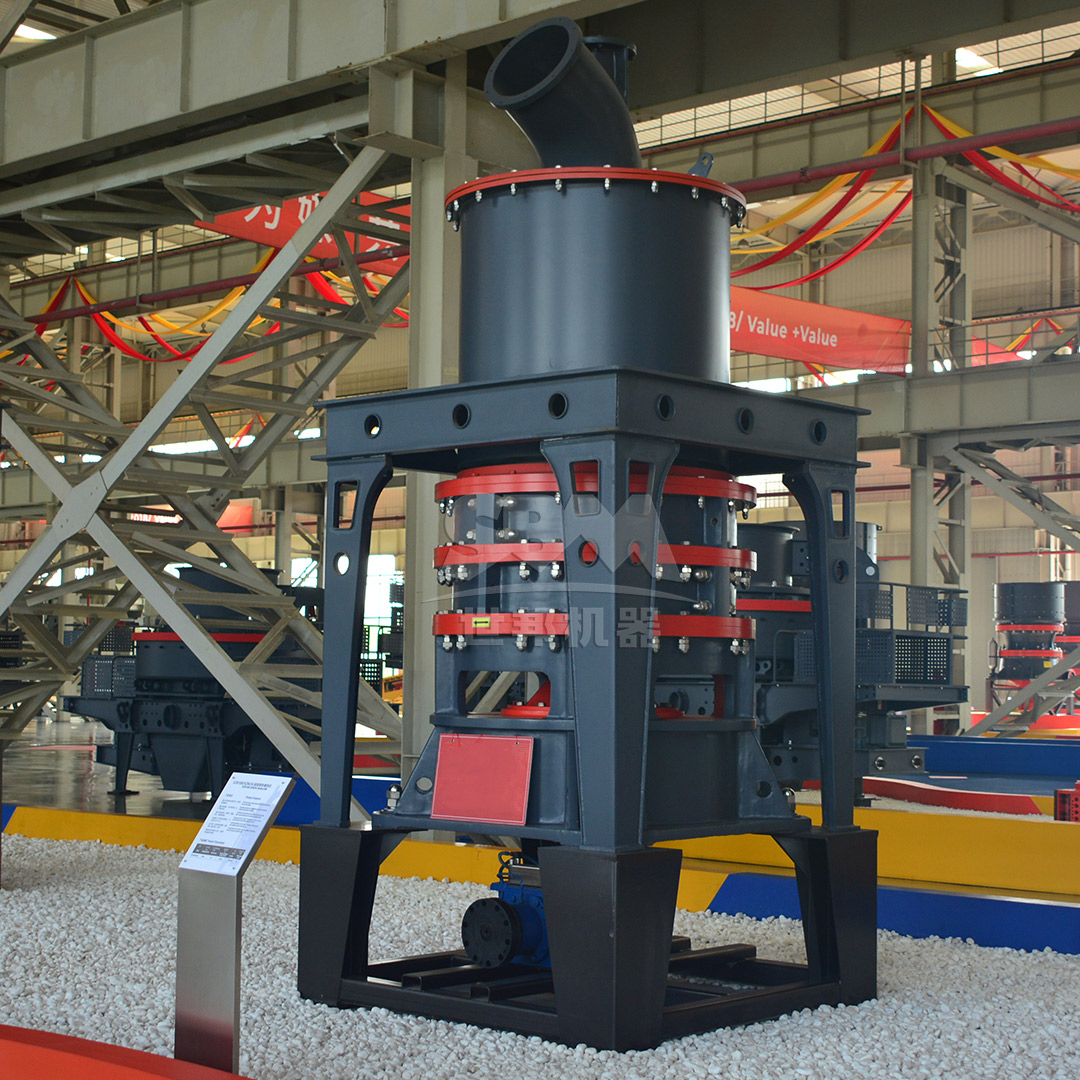

SCM Ultrafine Mill in polymer production line

Technical Highlights

SCM Ultrafine Mill Performance

Key specifications for polymer applications:

Model	Capacity (t/h)	Power (kW)	D97 Range
SCM800	0.5-4.5	75	325-2500 mesh
SCM1000	1.0-8.5	132	325-2500 mesh
SCM1680	5.0-25	315	325-2500 mesh

Innovative Features

The SCM series incorporates several patented technologies:

Vertical Turbine Classifier: Achieves precise particle size cuts with ±0.5μm consistency
Multi-layer Grinding Mechanism: Three rotating grinding rings for progressive size reduction
Smart Control System: Real-time monitoring of 12 operational parameters

Application Case Study

A leading polymer manufacturer achieved these results with our SCM1000 system:

Production rate: 6.8 t/h of 2.5μm calcite powder
Energy consumption: 28 kWh/t (40% reduction from previous system)
Product quality: 97.5% whiteness retention after 500hrs UV exposure

Calcite grinding system in polymer plant

Alternative Solution: MTW Trapezium Mill

For coarser applications (30-325 mesh), our MTW Series Trapezium Mill offers:

Higher throughput (up to 45 t/h)
Lower capital investment
Simplified maintenance with modular design

Technical Comparison

Parameter	SCM Ultrafine Mill	MTW Trapezium Mill
Optimal Fineness	5-45μm	45-300μm
Max. Capacity	25 t/h	45 t/h
Power Consumption	25-40 kWh/t	15-25 kWh/t
Footprint	Compact	Moderate

Conclusion

Selecting the appropriate calcite grinding system requires careful consideration of particle size requirements, production scale, and total cost of ownership. Our SCM Ultrafine Mill represents the pinnacle of fine grinding technology for high-value polymer applications, while the MTW Series provides robust solutions for standard filler production. Both systems deliver the reliability, efficiency, and precision demanded by modern polymer manufacturers.
