The production of electronic components demands materials of exceptional purity and precise physical characteristics. High purity quartz (HPQ), with its superior electrical insulation, thermal stability, and low thermal expansion, is a critical raw material in the manufacturing of semiconductors, solar cells, and various microelectronic devices. The journey from raw quartz to a functional component hinges on a crucial step: milling. The grinding process must achieve ultra-fine particle sizes without introducing contaminants that could compromise the material’s electrical properties. This article explores the technical requirements for grinding high purity quartz and highlights advanced milling solutions that meet these stringent demands.
In the realm of electronics, contamination is the enemy. Even minuscule amounts of certain metallic impurities can drastically alter the dielectric properties of quartz, leading to component failure. Furthermore, the particle size distribution (PSD) directly influences the sintering behavior, packing density, and ultimately, the mechanical strength and thermal performance of the final ceramic component. A narrow, consistent PSD is paramount. For many advanced applications, a D97 value of ≤5μm (2500 mesh) is required, pushing grinding technology to its limits. Achieving this fineness while maintaining absolute purity necessitates mills constructed with specialized, low-wear materials and designed to minimize the introduction of iron or other contaminants from the grinding mechanism itself.
Not all grinding mills are created equal for this task. Traditional ball mills, while robust, often struggle with efficiency at the sub-10μm range and pose a significant risk of metallic contamination from the grinding media and liners. Jet mills, which use compressed air for particle-on-particle impact, offer excellent purity but can be prohibitively expensive to operate due to high energy consumption.
The optimal solution often lies in advanced roller mill technology. These mills utilize a combination of compression, shear, and attrition forces to achieve fine grinds. Modern designs incorporate sophisticated internal classifiers that immediately separate particles once they reach the target size, preventing over-grinding and ensuring a sharp top-cut on the PSD. The best mills for HPQ feature grinding components made from ceramics, high-chromium alloys, or other specialized materials that exhibit extreme wear resistance, thereby minimizing the contamination burden.
For producers of high purity quartz seeking to achieve the finest powders essential for cutting-edge electronic components, our SCM Series Ultrafine Mill represents the pinnacle of milling technology. This mill is engineered from the ground up to meet the extreme demands of high-purity, ultra-fine grinding applications.
| Parameter | Value |
|---|---|
| Input Size | ≤20mm |
| Output Fineness | 325-2500 mesh (D97 ≤5μm) |
| Processing Capacity | 0.5 – 25 ton/h (model dependent) |

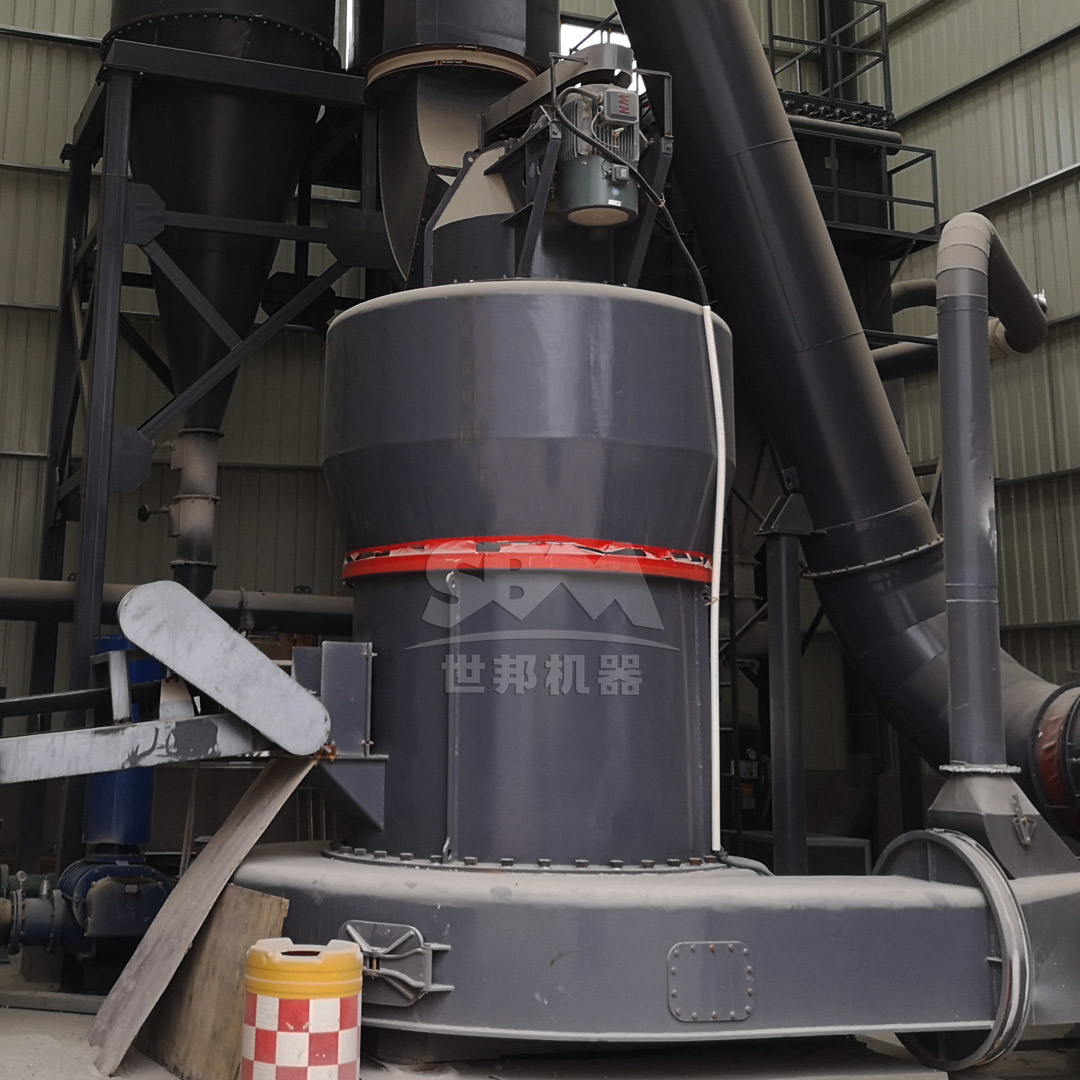

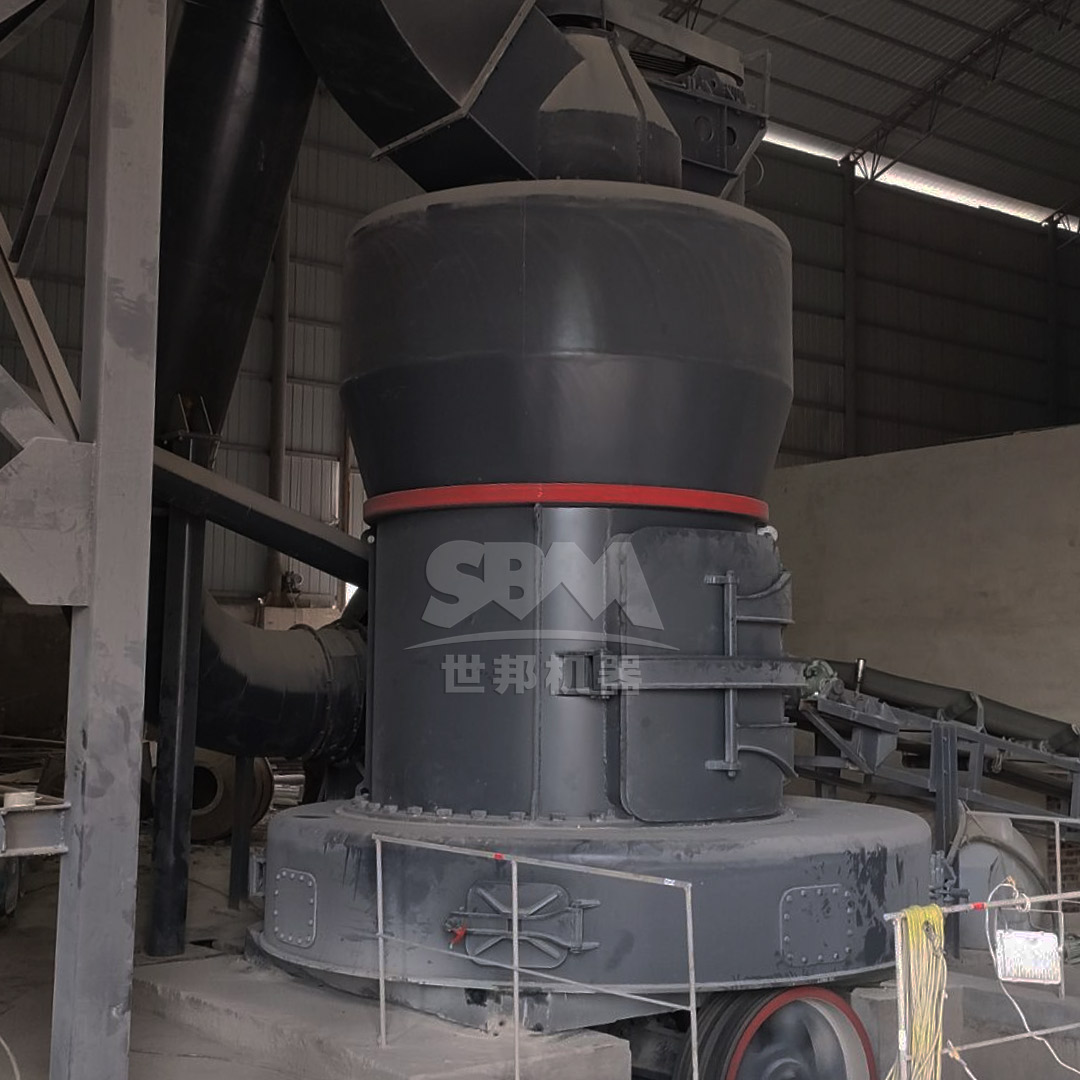

The SCM Ultrafine Mill operates on a layered grinding principle. The main motor drives a multi-layer grinding ring to rotate. Material is fed into the mill and dispersed by centrifugal force into the grinding passage, where it is pulverized by rollers. The crushed material is then progressively ground across the layers. Finally, a cyclone collector and the pulse dust removal system work in tandem to collect the fine powder.
With models ranging from the SCM800 (0.5-4.5 t/h, 75kW) to the high-capacity SCM1680 (5.0-25 t/h, 315kW), the SCM series offers a scalable solution for any production need, guaranteeing the high purity and precise fineness required for the most sensitive electronic applications.

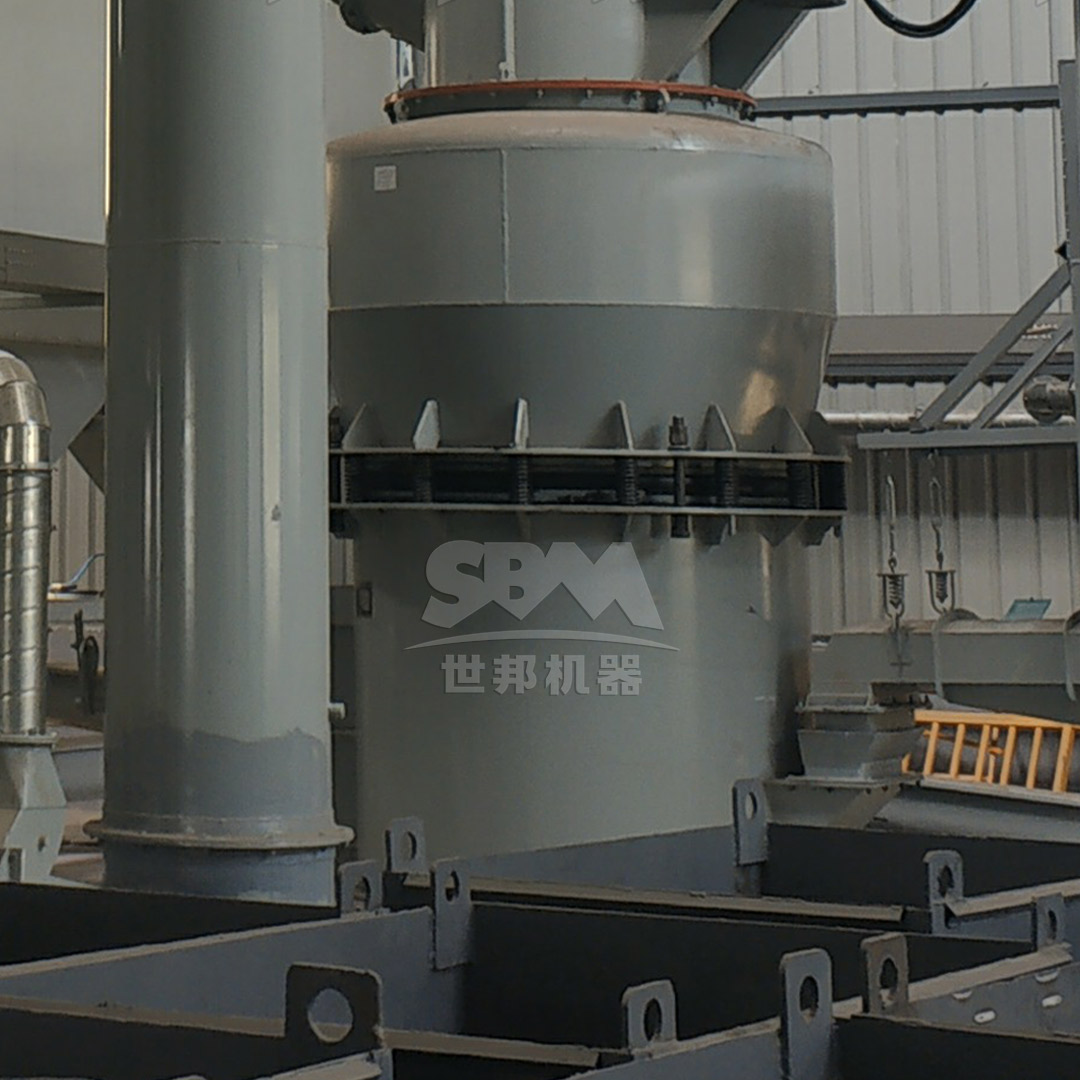

For operations that may also process other high-value minerals or require slightly different configurations, our LUM Ultrafine Vertical Mill is another excellent choice. It shares the core philosophy of the SCM series but features a distinct structural design. Its key advantages include a unique roller and liner curve design for enhanced grinding efficiency and multi-rotor classification technology that guarantees a product entirely free of coarse particles. Like the SCM, it employs a PLC-based automation system for stable operation and full-seal, negative-pressure operation to eliminate dust leakage.
The transition towards ever-smaller and more powerful electronic devices places increasing demands on the raw materials that enable them. The grinding process for high purity quartz is not merely a step in production; it is a critical determinant of final product performance and yield. Investing in advanced, purpose-built milling technology like the SCM Ultrafine Mill is no longer a luxury but a necessity for manufacturers aiming to compete at the forefront of the electronics industry. By prioritizing purity, precision, and efficiency, these grinding systems ensure that the fundamental material—high purity quartz—meets the exacting standards that modern technology requires.
