May 23, 2025

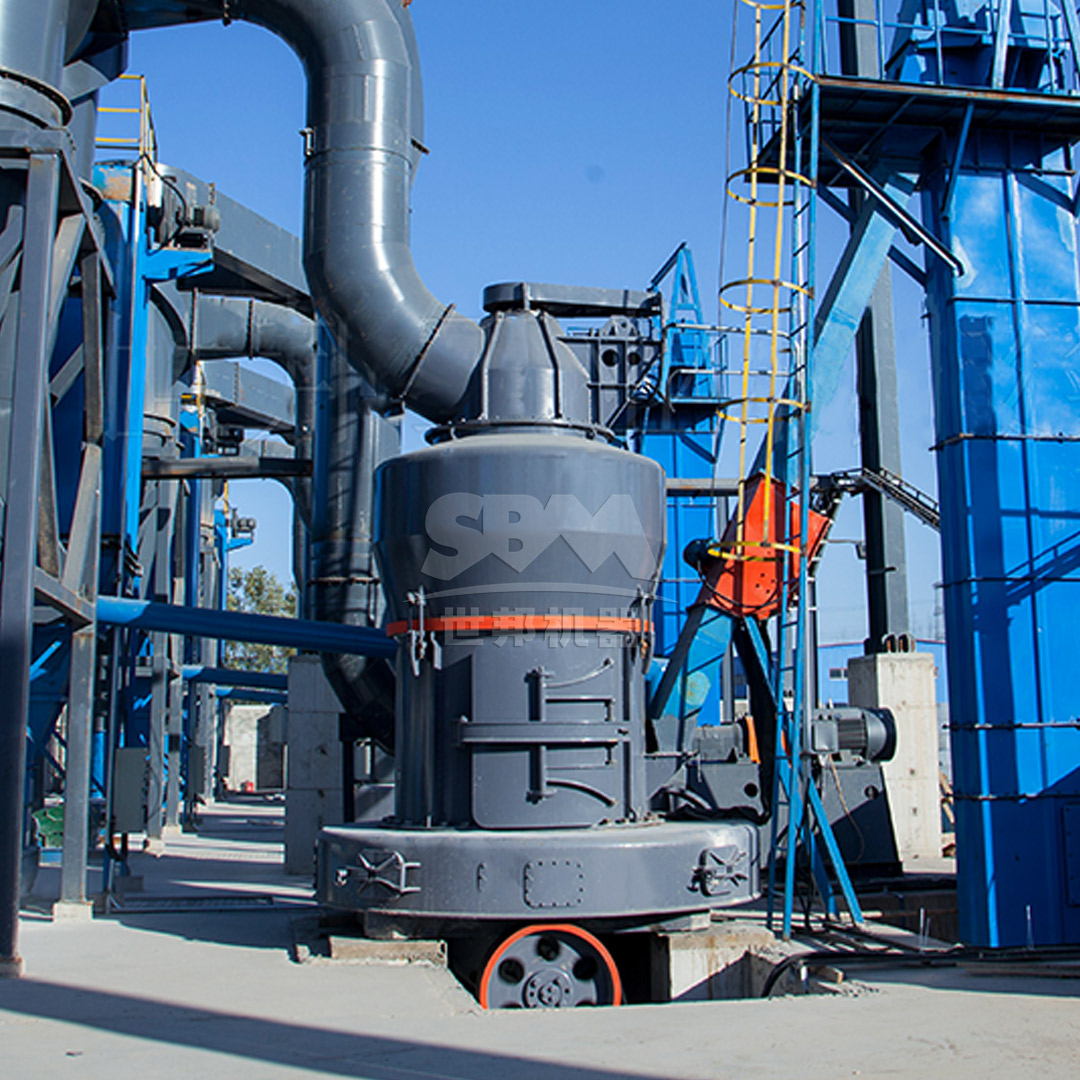

Raymond Mill (also known as Raymond Grinding Mill) is a cornerstone equipment in mineral processing, renowned for its precision in producing fine powders ranging from 30-325 mesh. This guide delves into its operational principles, key components, and performance optimization strategies.
Core Working Mechanism
The Raymond Mill operates through a multi-stage grinding system:
- Feeding Stage: Material enters via a vibratory feeder with ≤35mm particle size (adjustable based on model)
- Grinding Zone: Centrifugal force drives rollers to press against the rotating grinding ring, achieving 3-5 layer compression
- Classification: Built-in turbine classifier separates particles at 99% efficiency, returning oversize material for regrinding
- Collection: Pulse-jet baghouse captures 99.9% of output with ≤20mg/m³ dust emission
Typical Raymond Mill Performance Parameters
| Parameter |
Standard Range |
High-Performance Models |
| Output Fineness |
30-325 mesh |
Up to 600 mesh (special configurations) |
| Capacity |
3-22 TPH |
45 TPH (large-scale models) |
| Power Consumption |
18-22 kWh/ton |
15-18 kWh/ton (energy-optimized) |
Advanced Raymond Mill Solutions
For operations requiring superior fineness beyond traditional Raymond Mill capabilities, we recommend our SCM Ultrafine Mill series achieving 5μm (2500 mesh) with 30% lower energy consumption. Key advantages include:
- Vertical turbine classifier with 0.1μm precision adjustment
- Modular grinding chamber for quick maintenance
- Nozzle-free airflow design preventing material clogging
Critical Components Breakdown
1. Grinding Roller Assembly
The heart of Raymond Mill features:
- Forged alloy steel rollers with HRC62 hardness
- Precision-balanced design (vibration ≤0.05mm)
- Automatic lubrication system with 5000h service interval
2. Classification System
Modern mills employ dynamic classifiers with:
- Variable frequency drive (0-50Hz adjustable)
- Multi-blade rotor (typically 24-48 blades)
- 99.5% separation efficiency at 325 mesh
3. Pulse Dust Collector
Advanced filtration systems feature:
- PTFE membrane filter bags (≤10mg/m³ emission)
- 0.1-0.3MPa pulse pressure (adjustable)
- Automatic cleaning cycles (5-60min intervals)
Optimization Strategies
Feed Material Control
Optimal operation requires:
- Moisture content ≤6% (thermal drying may be required)
- Mohs hardness ≤7 for standard models
- Uniform feeding rate (±5% variation)
Maintenance Protocols
Extend equipment lifespan with:
- Roller/ring replacement at 800-1200h (depending on abrasiveness)
- Classifier blade inspection every 500h
- Bearing lubrication every 300h (high-temperature grease)
Upgraded Solutions
For large-scale production (15-45 TPH), our MTW Series Trapezium Mill delivers superior performance with:
| Feature |
Benefit |
| Conical Gear Transmission |
98% transmission efficiency, 50% noise reduction |
| Curved Air Duct |
15% lower pressure loss vs conventional designs |
| Modular Grinding Roller |
2h replacement time (vs 8h traditional) |
Case Study: Limestone Processing
A 25TPH installation achieved:
- 325 mesh output at 22.5 TPH (90% capacity utilization)
- Energy consumption: 17.8 kWh/ton
- Roller lifespan: 1,050 hours (vs industry average 800h)
Modern Raymond Mills combine mechanical precision with intelligent controls to deliver consistent fine powder production. For operations requiring micron-level fineness, our SCM Ultrafine Mill (45-5μm) and high-capacity MTW Trapezium Mill provide advanced solutions with 30-50% energy savings versus conventional systems.
