Particle size distribution is one of the most critical parameters in powder processing, directly impacting product performance, reactivity, flow characteristics, and end-use applications. Achieving the desired particle size requires precise control over mill settings and a thorough understanding of the grinding mechanism. This comprehensive guide explores the fundamental principles and practical techniques for optimizing mill operations to meet specific particle size requirements while maintaining product quality and operational efficiency.
The relationship between mill settings and final product characteristics is complex, involving multiple variables that must be carefully balanced. Operators must consider not only the target particle size but also the energy consumption, throughput rates, equipment wear, and product consistency. Modern milling systems offer various adjustment mechanisms that, when properly utilized, can significantly enhance process control and product quality.
Understanding the basic mechanisms of size reduction is essential for effective mill adjustment. The three primary mechanisms in comminution are impact, attrition, and compression. Different mill types emphasize different mechanisms, and the dominant mechanism significantly influences the final particle shape, size distribution, and surface characteristics.
Impact-based grinding typically produces more irregular particle shapes with broader size distributions, while attrition-based systems often yield more spherical particles with narrower distributions. Compression grinding, common in roller mills, generates particles with specific shape characteristics that may be desirable for certain applications. The selection of grinding mechanism should align with both the target particle size and the required particle morphology.
Several interconnected factors determine the final particle size in milling operations:
Modern industrial mills offer multiple adjustment points that operators can manipulate to control particle size. Understanding each parameter’s effect is essential for systematic optimization.
The classification system is often the most direct method for controlling top particle size in closed-circuit grinding systems. Increasing classifier speed typically results in finer product by applying greater centrifugal force to reject coarse particles back to the grinding zone. Modern classifiers offer precise speed control through variable frequency drives, allowing real-time adjustment of the cut point.
Beyond speed, classifier configuration—including blade angle, rotor design, and airflow patterns—significantly influences separation efficiency. Proper classifier adjustment ensures that only properly sized particles exit the system, preventing overgrinding of fines and reducing energy waste.
In compression-based mills like roller mills, the grinding pressure between rollers or between rollers and grinding tables directly controls the degree of size reduction. Higher pressures generate greater compressive forces, producing finer particles but increasing wear and energy consumption. Many modern mills feature hydraulic pressure systems that allow precise pressure control and automatic adjustment to compensate for wear.
The grinding gap setting is equally critical, particularly in roller mills where the minimum distance between grinding elements determines the finest possible particle size. Regular monitoring and adjustment of grinding gaps are necessary to maintain consistent product quality as wear occurs.
In many milling systems, particularly those employing air classification, airflow serves multiple purposes: transporting material, controlling residence time, and facilitating classification. Higher airflow rates generally increase transportation capacity but may reduce classification efficiency by carrying coarse particles into the product stream.
The direction and pattern of airflow within the mill also influence particle trajectory and classification behavior. Proper airflow management ensures efficient material transport while maintaining effective size separation. Many advanced mills feature adjustable air vanes or flow straighteners to optimize internal airflow patterns.
Different mill types require specific adjustment approaches based on their unique operating principles and design characteristics.

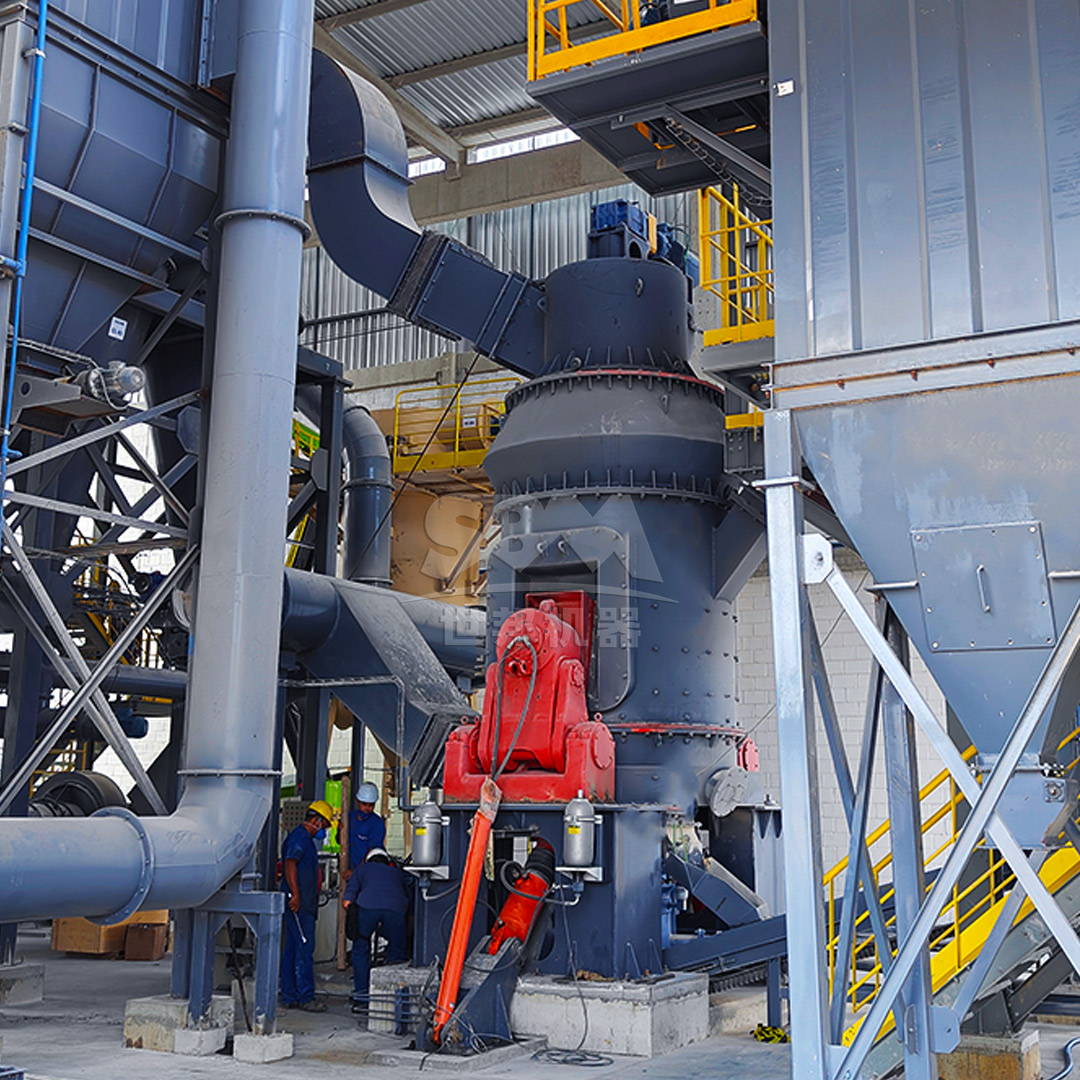

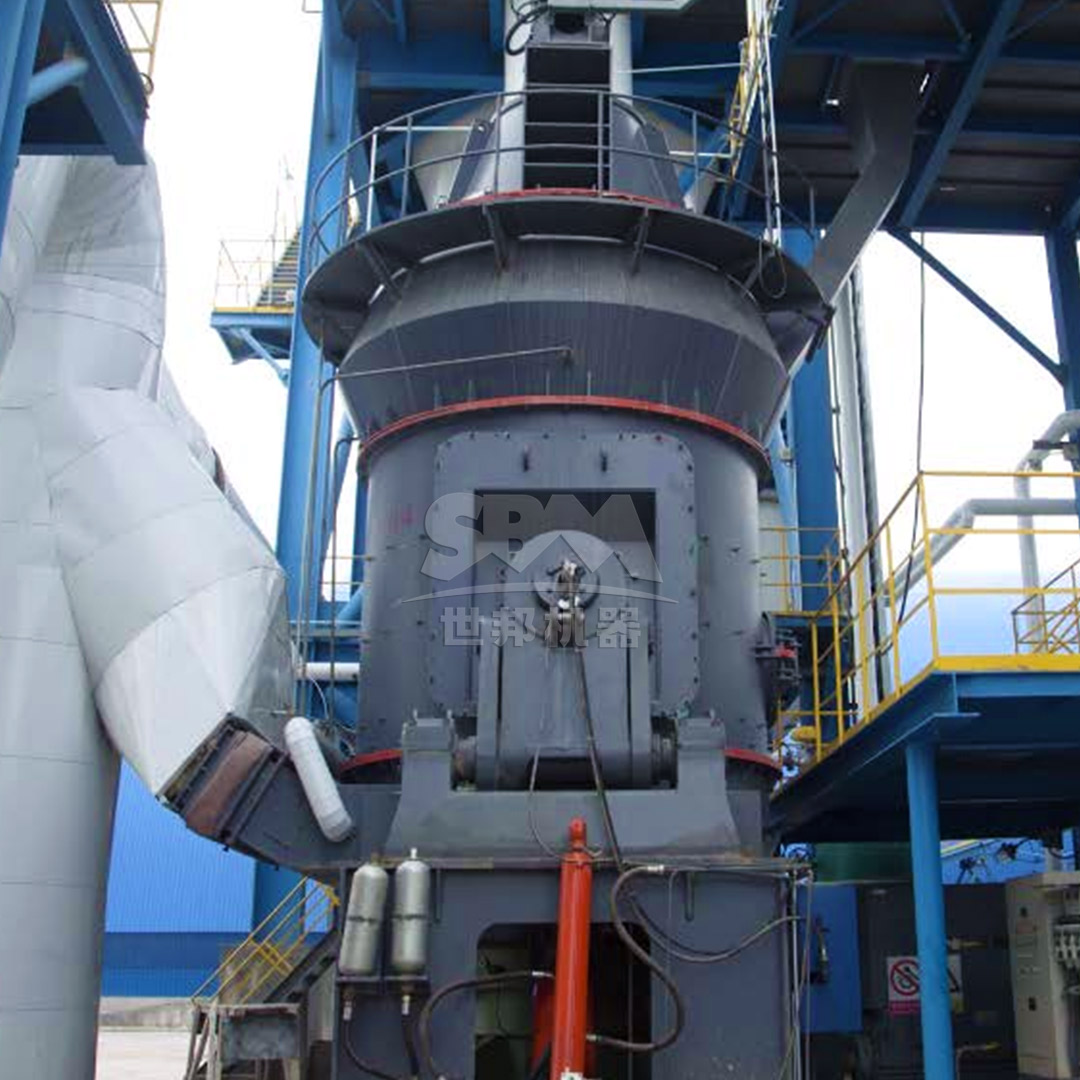

Vertical roller mills utilize a bed compression grinding mechanism where material is ground between a rotating table and rollers. Key adjustment parameters include:
For operations requiring exceptional control over particle size in the range of 30-325 mesh (600-45μm), our LM Series Vertical Roller Mill offers advanced adjustment capabilities. With its intelligent control system and precision grinding elements, this mill provides consistent product quality across various materials. The integrated dynamic classifier allows real-time adjustment of product fineness, while the modular grinding roller system facilitates quick maintenance and configuration changes.
| Adjustment Parameter | Effect on Particle Size | Effect on Energy Consumption | Recommended Range |
|---|---|---|---|
| Grinding Pressure | Higher pressure = finer particles | Increases significantly | 60-120 bar |
| Classifier Speed | Higher speed = finer cut point | Moderate increase | 200-800 rpm |
| Table Speed | Higher speed = coarser product | Slight increase | 25-45 rpm |
| Airflow Rate | Higher flow = coarser carryover | Increases moderately | Optimize for transport |
For applications requiring sub-10 micron particles, ultrafine grinding mills employ specialized mechanisms and precise control systems. These mills typically combine intense grinding action with highly efficient classification to achieve narrow particle size distributions in the fine and ultrafine ranges.
Our SCM Series Ultrafine Mill represents the pinnacle of ultrafine grinding technology, capable of producing particles as fine as 5μm (D97) with remarkable consistency. The mill features a vertical turbine classification system that provides precise cut-point control, ensuring no coarse particles contaminate the final product. With its intelligent control system automatically adjusting operational parameters based on real-time feedback, the SCM Series delivers unparalleled product quality while reducing energy consumption by 30% compared to conventional jet mills.
Traditional tumbling mills rely on impact and attrition between grinding media and material. Key adjustment parameters include:
Optimizing these parameters requires balancing grinding efficiency, media wear, and product contamination concerns. Modern ball mills often incorporate advanced control systems that adjust feed rates and mill speed based on power draw and acoustic measurements.
Modern milling operations increasingly rely on sophisticated control strategies to maintain consistent product quality while optimizing energy efficiency and throughput.
Advanced control systems utilize mathematical models of the milling process to predict the effect of adjustment changes and optimize multiple parameters simultaneously. These systems consider interactions between variables that might be difficult for human operators to manage effectively.
Model predictive control (MPC) systems can maintain particle size within tighter tolerances while responding to disturbances in feed characteristics or operating conditions. Implementation typically requires comprehensive process modeling and validation but can deliver significant improvements in product consistency and operational efficiency.
Direct measurement of particle size during operation provides the feedback necessary for precise control. Modern in-line particle size analyzers using laser diffraction or other technologies offer real-time size distribution data, enabling immediate adjustment response.
When combined with automated control systems, real-time monitoring creates a closed-loop control environment that maintains target particle size despite variations in feed material or environmental conditions. This approach significantly reduces the need for manual sampling and laboratory analysis while improving product consistency.
Even with proper adjustment protocols, milling operations occasionally experience particle size deviations. Rapid identification and correction of these issues are essential for maintaining product quality.
When the proportion of ultrafine particles exceeds specifications, potential causes include:
Corrective actions may involve reducing grinding pressure, adjusting classifier speed, increasing feed rate, or inspecting and replacing worn components.
The appearance of coarse particles in the final product typically indicates:
Addressing oversize issues may require increasing grinding intensity, verifying classifier operation, reducing feed rate, or performing maintenance on classification components.
Fluctuating particle size often results from:
Stabilizing the process typically involves improving feed consistency, reviewing control system parameters, and verifying the mechanical condition of key components.
Beyond specific adjustment techniques, several overarching practices contribute to consistent particle size control and product quality:
Well-trained operators who understand the relationships between adjustment parameters and product outcomes can make more effective decisions and respond more quickly to process deviations. Training should cover both theoretical principles and practical operational experience.
Regular inspection and maintenance of grinding elements, classifiers, and auxiliary equipment prevent unexpected performance degradation. Wear components should be monitored and replaced according to established schedules based on historical performance data.
Maintaining detailed records of operating parameters, adjustment changes, and corresponding product characteristics creates valuable reference data for troubleshooting and optimization. Modern control systems can automate much of this documentation, providing searchable historical data.
Even well-established processes can benefit from ongoing evaluation and refinement. Regular review of operational data, technology advancements, and changing product requirements ensures that milling operations remain optimized for current conditions.
Effective adjustment of mill settings for desired particle size and product quality requires a systematic approach that considers the specific mill type, material characteristics, and product requirements. By understanding the fundamental principles of particle size reduction and the specific adjustment mechanisms available in different mill designs, operators can achieve consistent results while optimizing energy efficiency and equipment longevity.
Modern milling systems, such as our SCM Series Ultrafine Mill and LM Series Vertical Roller Mill, incorporate advanced control technologies that simplify the adjustment process while delivering superior product consistency. These systems represent the culmination of decades of grinding technology development, offering unprecedented control over particle size distribution and product quality.
As particle size requirements continue to evolve toward tighter specifications and narrower distributions, the importance of precise mill adjustment and control will only increase. By implementing the principles and practices outlined in this guide, operations can meet these challenging requirements while maintaining efficiency and profitability.
