Calcium carbonate fillers are essential components in numerous industries, including plastics, paper, paints, coatings, and adhesives. The quality of these fillers directly impacts the final product’s properties, making the selection of appropriate grinding equipment and plant configuration crucial. High-quality calcium carbonate fillers require precise particle size distribution, high brightness, and consistent chemical purity. This comprehensive guide outlines the key considerations for establishing a calcite grinding plant that produces premium calcium carbonate fillers meeting international quality standards.
The foundation of high-quality calcium carbonate production begins with proper raw material selection. Calcite deposits vary significantly in purity, crystal structure, and associated impurities. For filler applications, high-purity calcite (≥98% CaCO₃) with minimal iron, manganese, and other discoloring elements is essential. The raw material preparation phase involves several critical steps:
Selective quarrying techniques ensure consistent mineral quality. Primary crushing reduces large calcite blocks to manageable sizes (typically 100-200mm) using jaw crushers or gyratory crushers. The crushing process should minimize fines generation and contamination from crusher wear parts.
Depending on the deposit characteristics, washing may be necessary to remove clay, silt, and other surface impurities. For lower-grade deposits, flotation or magnetic separation may be employed to improve calcium carbonate content and brightness. The beneficiation process significantly impacts the final product’s whiteness and chemical properties.
Secondary crushing further reduces material size to meet grinding mill feed requirements (typically ≤50mm). Proper drying is essential, as moisture content affects grinding efficiency and final product quality. Rotary dryers or flash dryers are commonly used, with careful temperature control to prevent calcite decomposition.
Selecting the appropriate grinding technology is the most critical decision in plant design. Different grinding systems produce distinct particle characteristics suitable for various filler applications. The choice depends on target fineness, production capacity, energy efficiency requirements, and capital investment constraints.
For applications requiring extremely fine particles (D97 ≤ 5μm), such as high-performance plastics, specialty papers, and advanced coatings, ultra-fine grinding systems are essential. These systems must provide precise particle size control, narrow size distribution, and minimal contamination.

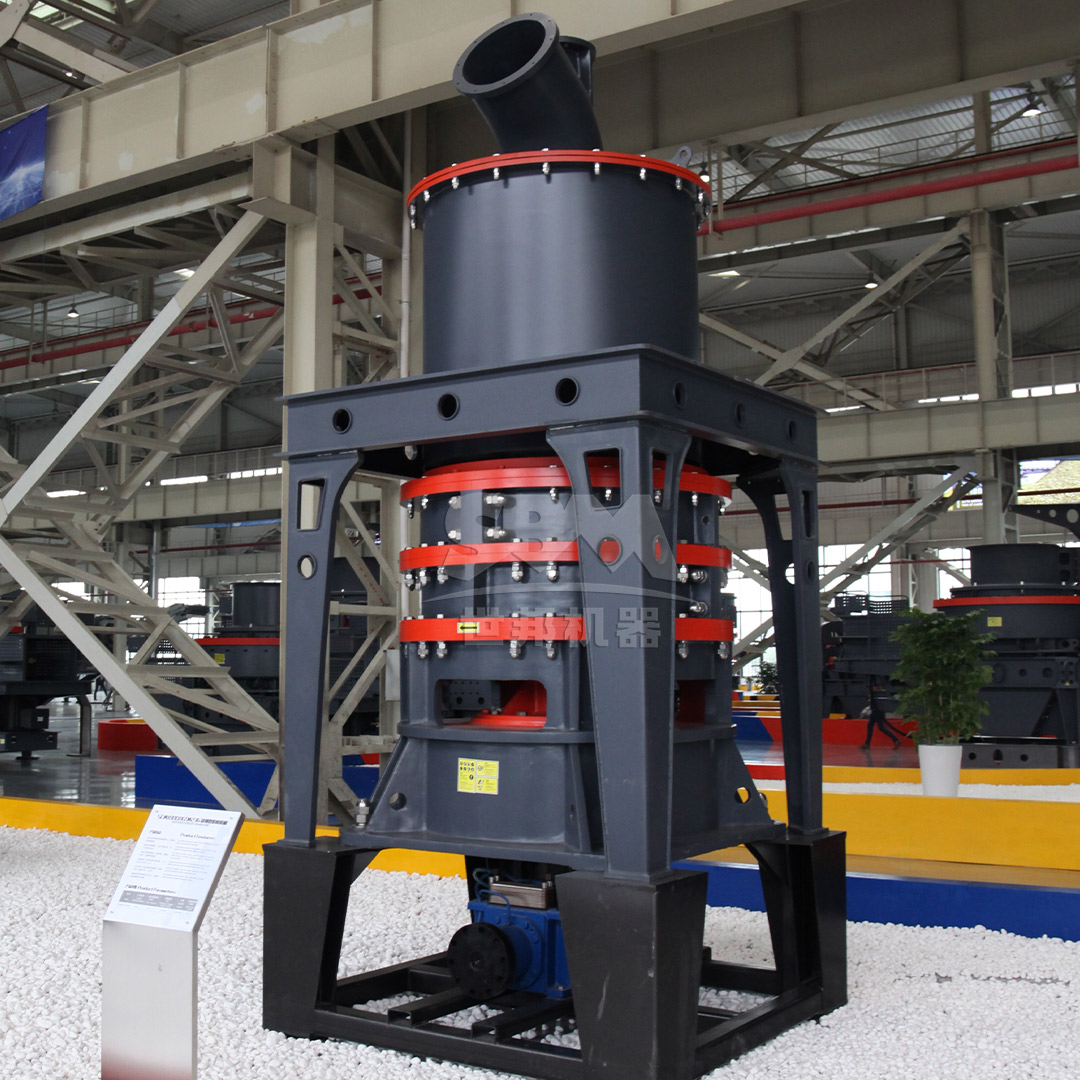

Our SCM Ultrafine Mill represents the pinnacle of ultra-fine grinding technology, specifically engineered for producing premium calcium carbonate fillers. With an output fineness range of 325-2500 mesh (D97 ≤ 5μm) and capacity from 0.5 to 25 tons per hour, this mill delivers exceptional performance for high-value filler applications. The vertical turbine classifier ensures precise particle size cuts without coarse particle contamination, while the intelligent control system automatically maintains consistent product quality. The energy-efficient design reduces power consumption by 30% compared to conventional jet mills, making it both economically and environmentally superior.
For general-purpose fillers in the 30-325 mesh range, trapezium mills offer an optimal balance of performance, efficiency, and operating costs. These systems are suitable for large-volume production of standard fillers for plastics, rubber, and construction materials.

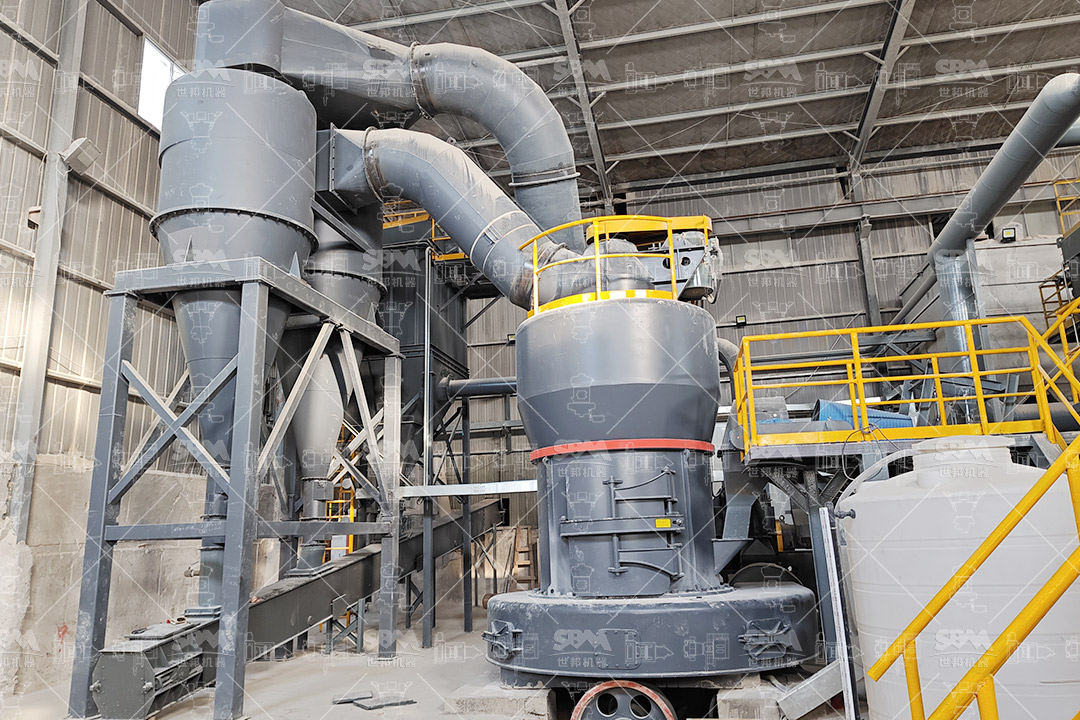

Our MTW Series Trapezium Mill provides outstanding performance for medium-fine calcium carbonate production. With capacity ranging from 3 to 45 tons per hour and output fineness from 30-325 mesh, this European-style mill features innovative curved air channel design that reduces energy loss and improves transmission efficiency. The combined shovel blade design minimizes maintenance costs, while the integral transmission with bevel gears achieves 98% transmission efficiency. For operations requiring high-volume production of standard fillers, the MTW Series offers exceptional reliability and cost-effectiveness.
| Technology | Output Range | Capacity (t/h) | Energy Efficiency | Applications |
|---|---|---|---|---|
| SCM Ultrafine Mill | 325-2500 mesh | 0.5-25 | High | Premium plastics, specialty papers |
| MTW Trapezium Mill | 30-325 mesh | 3-45 | Very High | General plastics, rubber, paints |
| LM Vertical Mill | 30-325 mesh | 3-250 | Excellent | Large-volume standard fillers |
| Ball Mill | 0.074-0.8mm | 0.65-450 | Moderate | Basic fillers, construction |
An efficient calcite grinding plant requires careful integration of multiple subsystems. The layout must facilitate smooth material flow while minimizing cross-contamination and energy consumption.
Design adequate storage capacity for both raw calcite and finished products. Implement covered storage with proper drainage to prevent moisture absorption. Automated conveying systems with weighing and sampling capabilities ensure consistent feed to the grinding circuit.
The grinding circuit typically includes the main mill, classifier, product collection system, and tailings return mechanism. Closed-circuit grinding with efficient classification improves energy utilization and product quality. Consider the specific requirements of calcium carbonate fillers when designing the circuit:
Efficient product collection is essential for maintaining product quality and minimizing losses. Pulse-jet bag filters with automatic cleaning ensure high collection efficiency while maintaining low pressure drop. For ultra-fine products, consider additional safety filtration. Automated packaging systems with precision weighing ensure consistent bag weights and reduce labor costs.
Consistent product quality is paramount for calcium carbonate fillers. Implement comprehensive quality control measures throughout the production process.
Real-time monitoring of critical parameters ensures consistent product quality:
Establish a well-equipped laboratory for comprehensive product characterization:
Continuous improvement through data analysis and process optimization:
Modern calcite grinding plants must address environmental concerns while maintaining economic viability.
Implement comprehensive dust control measures throughout the plant. High-efficiency bag filters with emission levels below 20 mg/m³ should be standard. Enclose transfer points and implement local exhaust ventilation at potential dust generation points. Regular monitoring ensures compliance with environmental regulations.
Grinding operations can generate significant noise. Select equipment with low noise emissions, such as our SCM Ultrafine Mill with noise levels ≤75dB. Implement acoustic enclosures, vibration isolation, and building design features to minimize noise impact on the surrounding environment.
Optimize energy consumption through equipment selection and system design. Our grinding systems incorporate energy-saving features such as the SCM Ultrafine Mill’s 30% reduced energy consumption compared to conventional systems. Consider waste heat recovery from drying operations and implement energy management systems to monitor and optimize power usage.
A successful calcite grinding plant must demonstrate economic viability while producing high-quality products.
The initial investment includes land acquisition, civil works, equipment procurement, installation, and commissioning. Grinding mills typically represent 40-60% of the total equipment cost. Our MTW Series Trapezium Mill offers an excellent balance of performance and investment cost for medium-fine applications, while the SCM Ultrafine Mill provides superior value for high-value ultra-fine products.
Operating costs include raw materials, energy, labor, maintenance, and consumables. Energy typically accounts for 50-70% of the operating cost in grinding operations. Our grinding systems are designed to minimize operating costs through:
Develop a product portfolio that matches market requirements and maximizes plant utilization. Consider producing multiple grades to serve different market segments. The flexibility of our grinding systems allows quick adjustment of product specifications to respond to changing market demands.
Establishing a successful calcite grinding plant for high-quality calcium carbonate fillers requires careful consideration of multiple factors, from raw material selection to final product packaging. The choice of grinding technology fundamentally determines the product quality, production efficiency, and economic viability. Our SCM Ultrafine Mill and MTW Series Trapezium Mill offer cutting-edge solutions for both ultra-fine and medium-fine applications, providing the performance, reliability, and efficiency needed in today’s competitive market. By implementing proper system design, quality control measures, and environmental management, producers can establish operations that consistently deliver premium calcium carbonate fillers meeting the most demanding application requirements.
With the right equipment selection and proper plant design, calcium carbonate producers can achieve superior product quality, operational efficiency, and sustainable growth in the competitive fillers market. The investment in advanced grinding technology pays dividends through consistent product quality, reduced operating costs, and the ability to serve premium market segments.
