Kaolin, also known as china clay, is a naturally occurring white clay mineral primarily composed of kaolinite. It is widely used in various industries due to its unique properties such as whiteness, fine particle size, and chemical inertness. The two major sectors that heavily rely on high-quality kaolin are ceramics and paper production. In ceramics, kaolin provides plasticity, strength, and whiteness to the final product. In the paper industry, it is used as a filler and coating pigment to enhance printability, brightness, and opacity.
The quality of kaolin is critically dependent on its particle size distribution and purity. Efficient grinding is, therefore, a crucial step in kaolin processing to achieve the desired fineness and quality. Traditional ball mills have been the workhorse for kaolin grinding, but advancements in milling technology have led to the development of more efficient and precise grinding solutions.
Ball mills are a type of grinder used to grind and blend materials for use in mineral dressing processes, paints, pyrotechnics, ceramics, and selective laser sintering. They work on the principle of impact and attrition: size reduction is done by impact as the balls drop from near the top of the shell. For kaolin, which requires a fine and consistent particle size, ball mills offer a reliable, albeit sometimes energy-intensive, solution.
A typical kaolin ball mill operation involves feeding the raw clay (with a feed size usually ≤25mm) into a rotating cylinder filled with grinding media, such as steel balls. The rotation of the cylinder causes the balls to lift and then impact the kaolin, breaking it down into finer particles. The product fineness can be controlled by the residence time, the size and type of grinding media, and the rotational speed of the mill.
| Parameter | Typical Range for Kaolin |
|---|---|
| Input Size | ≤25 mm |
| Output Fineness | 0.074 – 0.8 mm (200 – 20 mesh) |
| Grinding Media Load | 30-40% of mill volume |
| Rotational Speed | 65-80% of critical speed |
While effective, traditional ball mills can have limitations, including high energy consumption, significant heat generation (which can affect the kaolin’s properties), and potential for iron contamination from the grinding media. This has driven the industry towards more advanced and efficient milling technologies.
To overcome the limitations of conventional ball mills and meet the ever-increasing demand for high-purity, ultra-fine kaolin powders, newer grinding technologies have been developed. These technologies focus on higher efficiency, better particle size control, lower energy consumption, and reduced contamination.
Two prominent technologies that have revolutionized fine and ultra-fine grinding of minerals like kaolin are Vertical Roller Mills (VRMs) and Ultrafine Grinding Mills. These systems often integrate classification within the mill itself, allowing for immediate separation of fine particles and recirculation of coarse material, leading to a more efficient process with a narrower particle size distribution.
| Technology | Output Fineness (D97) | Energy Efficiency | Contamination Risk | Footprint |
|---|---|---|---|---|
| Traditional Ball Mill | 45-150 µm | Moderate | Medium (Iron) | Large |
| Vertical Roller Mill (VRM) | 45-600 µm | High | Low | Compact |
| Ultrafine Mill | 5-45 µm | Very High | Very Low | Compact |
For producers aiming for the highest quality ceramics and paper coatings, achieving a fineness of 5μm or less is often necessary. This is where ultrafine grinding mills truly excel.

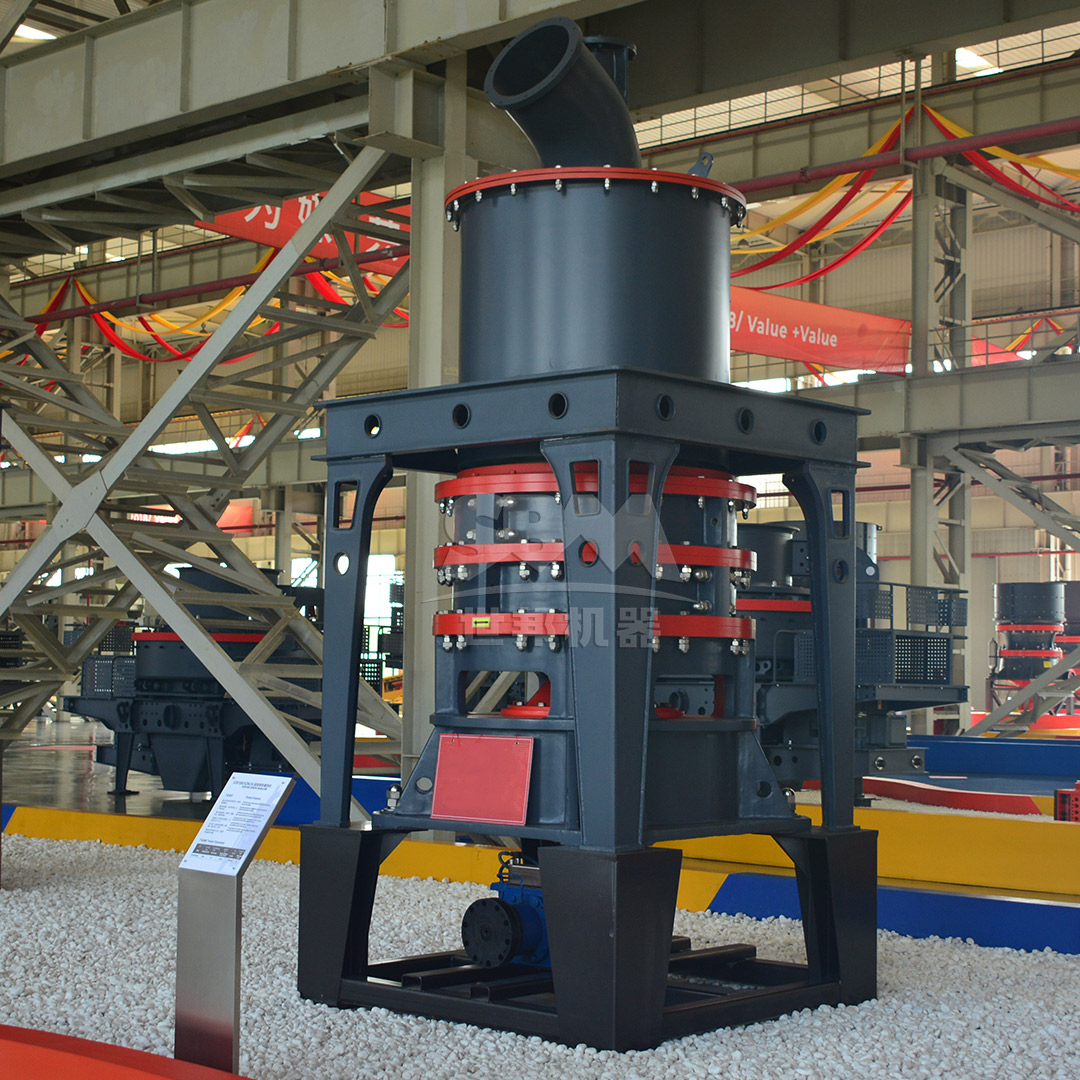

For kaolin processors targeting the high-end ceramics and specialty paper markets, where ultra-fine particle size and high brightness are paramount, the SCM Series Ultrafine Mill is an ideal solution. This mill is engineered to consistently produce powders with a fineness of 325-2500 mesh (D97 ≤ 5μm), meeting the most stringent quality requirements.
The SCM Ultrafine Mill operates on a layered grinding principle. The main motor drives a multi-layer grinding ring to rotate. Material is fed into the mill and dispersed into the grinding chamber by centrifugal force. The material is then compressed and ground between the rollers and the grinding ring. A built-in turbo classifier ensures precise particle size切割 (cutting), allowing only particles that meet the target fineness to pass through to the collection system, which typically consists of a high-efficiency cyclone and a pulse dust collector.
With models like the SCM1680 capable of handling up to 25 tons per hour, this mill can serve both large-scale production lines and facilities requiring precise, batch-based production of high-value kaolin products.
The choice of grinding equipment is critical for any kaolin processing operation. While traditional ball mills remain a viable option for certain applications requiring coarser grinds, the future of the industry lies in adopting more efficient, precise, and environmentally friendly technologies.

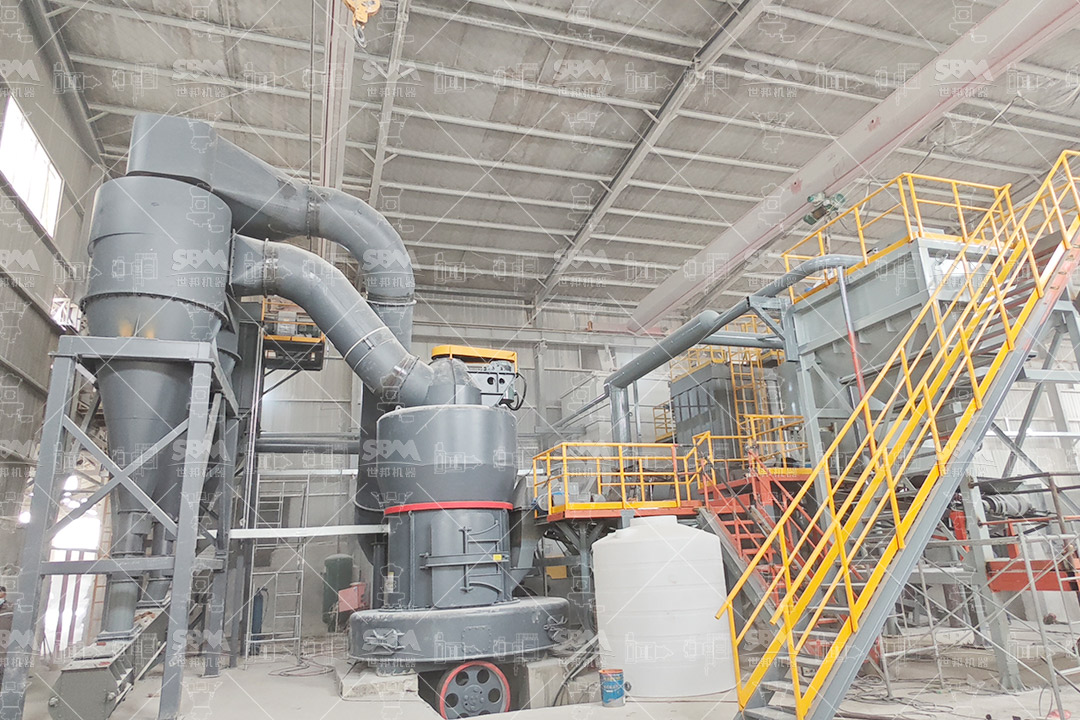

For high-volume production of kaolin used in standard ceramics and fillers, a Vertical Roller Mill (VRM) like our LM Series offers an excellent balance of capacity, efficiency, and particle size control down to 45μm. Its集约化设计 (compact design) and low operating costs make it a popular choice for modern plants.
However, for producers focusing on the premium segment—manufacturing high-quality coatings for paper or exquisite ceramics—investing in an ultrafine grinding solution is non-negotiable. The SCM Ultrafine Mill stands out as a technologically advanced, reliable, and efficient choice to achieve the exceptional fineness and quality consistency demanded by these discerning markets. By leveraging such advanced milling technology, kaolin producers can significantly enhance their product value, reduce operational costs, and strengthen their competitive position globally.
