Barite (BaSO4) is a critical industrial mineral with extensive applications in oil and gas drilling, paint and coatings, plastics, rubber, and chemical industries. The quality of barite powder significantly depends on its particle size distribution, purity, and whiteness. Producing high-quality fine barite powder requires advanced grinding technologies that can achieve precise particle size control while maintaining operational efficiency and cost-effectiveness. This article explores optimized grinding techniques and equipment selection for producing superior barite powder.
Barite possesses a Mohs hardness of 3-3.5 and specific gravity of 4.5, making it relatively soft but dense. The primary challenges in barite grinding include:
Traditional grinding methods often result in inconsistent particle size, high energy consumption, and contamination issues. Modern grinding technologies address these challenges through advanced mechanical designs and intelligent control systems.
For applications requiring extremely fine barite powder (D97 ≤ 5μm), specialized ultra-fine grinding systems offer superior performance. These systems combine mechanical impact, shearing, and compression forces to achieve precise particle size reduction.
Our SCM Ultrafine Mill represents the cutting edge in barite ultra-fine grinding technology. With an output fineness range of 325-2500 mesh (D97 ≤ 5μm) and processing capacity of 0.5-25 tons per hour, this system delivers exceptional performance for high-value barite applications. The vertical turbine classifier ensures precise particle size control, eliminating coarse powder contamination and producing consistently uniform fine powder.
| Technical Feature | Advantage | Impact on Barite Quality |
|---|---|---|
| Vertical Turbine Classifier | Precise particle size control | Uniform D97 distribution |
| Special Material Rollers | Extended service life | Reduced iron contamination |
| Pulse Dust Collection | >99.9% efficiency | Minimal product loss |
| Intelligent Control System | Automatic feedback adjustment | Consistent quality output |
The SCM series achieves 30% lower energy consumption compared to jet mills while doubling the production capacity, making it an economically viable solution for premium barite powder production.

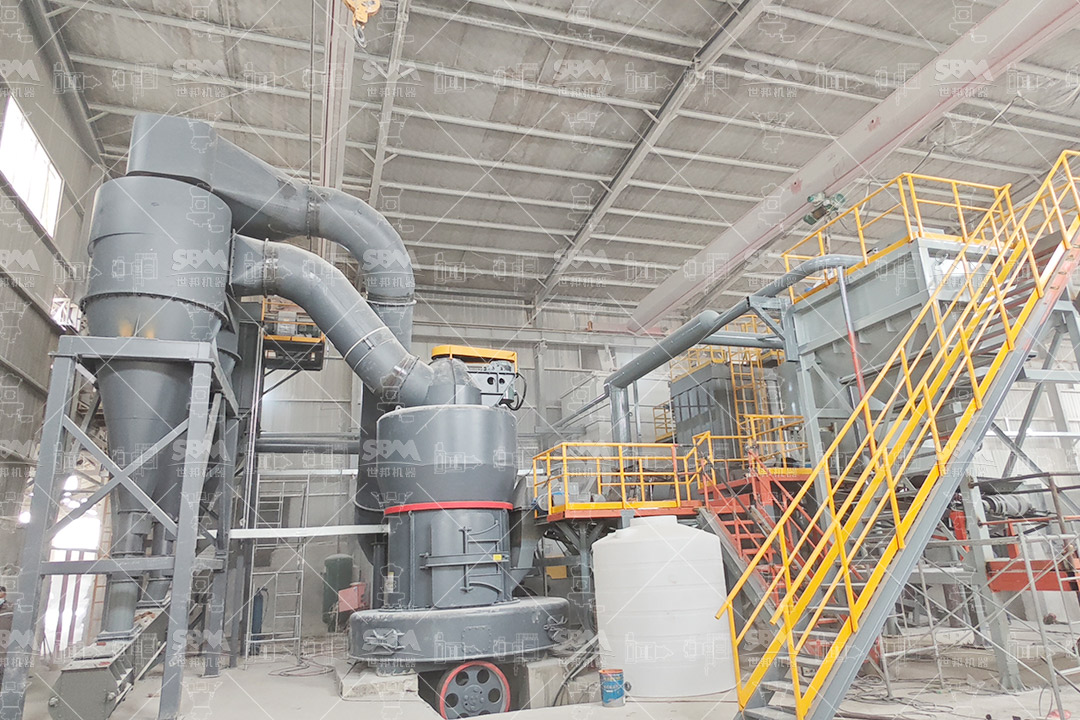

For applications requiring barite powder in the 30-325 mesh range, trapezium mills offer optimal balance between production capacity and energy efficiency. The MTW Series Trapezium Mill provides robust performance with processing capacities ranging from 3-45 tons per hour, making it suitable for large-scale barite processing operations.
Key technological advantages of the MTW series include:
The MTW series employs a unique grinding principle where the main motor drives grinding rollers to revolve around the central axis while rotating themselves, generating centrifugal force. The shovel blades throw materials between the grinding ring and rollers, forming a material layer that undergoes efficient crushing through extrusion forces.
A well-designed process flow is essential for producing high-quality barite powder efficiently. The optimal barite grinding process typically includes:
Each stage must be optimized considering barite’s specific characteristics, including its relatively soft nature and high density.
Selecting the appropriate grinding equipment for barite processing requires careful consideration of multiple factors:
| Selection Factor | Considerations | Recommended Equipment |
|---|---|---|
| Required Fineness | D97 ≤ 5μm vs. 30-325 mesh | SCM Ultrafine Mill vs. MTW Trapezium Mill |
| Production Capacity | Small batch vs. continuous operation | SCM800 to SCM1680 models |
| Energy Efficiency | kWh/ton target | High-efficiency classifiers |
| Contamination Control | Iron content limitations | Ceramic-lined components |
| Space Constraints | Footprint limitations | Vertical mill configurations |
For ultra-fine barite powder production, our SCM Ultrafine Mill series offers multiple models to match specific production requirements:
All models maintain the same output fineness range of 325-2500 mesh (D97 ≤ 5μm), ensuring consistent product quality across different production scales.
Maintaining consistent barite powder quality requires comprehensive quality control measures and performance optimization strategies:
Advanced classification systems in modern grinding equipment enable precise control over particle size distribution. The vertical turbine classifier in the SCM Ultrafine Mill ensures that 97% of particles fall below the target size (D97), with narrow distribution curves that enhance product performance in downstream applications.
Barite purity is critical for many applications, particularly in oil drilling where API specifications must be met. The use of special material grinding components, such as high-chromium alloy rollers and ceramic-lined grinding chambers, minimizes iron contamination during the grinding process.
Modern grinding systems incorporate energy-saving technologies that significantly reduce operating costs. The SCM Ultrafine Mill achieves 30% lower energy consumption compared to conventional jet mills while maintaining superior product quality. Intelligent control systems automatically adjust operating parameters based on feed material characteristics and desired product specifications.
Modern barite grinding facilities must address environmental concerns through comprehensive dust control, noise reduction, and energy efficiency measures:
The SCM Ultrafine Mill incorporates these environmental considerations through its fully enclosed negative pressure operation, preventing dust leakage while maintaining optimal grinding conditions.
Investing in advanced barite grinding technology requires careful economic analysis. Key factors influencing return on investment include:
| Cost Factor | Traditional Technology | Advanced Technology (SCM Series) | Savings |
|---|---|---|---|
| Energy Consumption | High (reference) | 30% reduction | Significant |
| Maintenance Costs | Frequent component replacement | Extended component life | 40-50% reduction |
| Product Yield | Standard efficiency | High-efficiency collection | 3-5% improvement |
| Labor Requirements | Manual monitoring | Automated control | 60% reduction |
The higher initial investment in advanced grinding technology is typically recovered within 12-24 months through operational savings and premium product pricing.
The barite grinding industry continues to evolve with several emerging trends:
Equipment manufacturers are continuously refining their technologies to address these trends while maintaining focus on product quality and operational efficiency.
Producing high-quality fine barite powder requires a comprehensive approach combining advanced grinding technology, optimized process flows, and rigorous quality control. The selection of appropriate grinding equipment, such as the SCM Ultrafine Mill for ultra-fine applications or the MTW Trapezium Mill for medium-fine requirements, is critical to achieving target product specifications while maintaining economic viability.
Modern grinding systems offer significant advantages in energy efficiency, product quality consistency, and environmental performance compared to traditional technologies. As market demands for high-quality barite powder continue to grow, investing in optimized grinding techniques becomes increasingly important for maintaining competitive advantage in the global minerals industry.
For operations requiring the highest quality barite powder with D97 ≤ 5μm, our SCM Ultrafine Mill series provides unmatched performance through its advanced grinding and classification technology, delivering superior product quality while reducing operational costs and environmental impact.
