The cement industry stands at a critical juncture, balancing the ever-growing global demand for construction materials with the urgent need to reduce its environmental footprint. Clinker grinding, the final stage in cement production, represents one of the most energy-intensive processes in manufacturing, typically accounting for approximately 40% of total electrical energy consumption in a cement plant. Traditional ball mills, while reliable, operate with limited efficiency in this domain, converting only about 1-2% of the input energy into actual size reduction. This inefficiency not only drives up operational costs but also contributes significantly to the industry’s carbon emissions.
In response to these challenges, ultrafine grinding technology has emerged as a transformative solution. By leveraging advanced mechanical principles and precision engineering, modern ultrafine mills achieve unprecedented levels of efficiency in particle size reduction. These technologies enable cement producers to meet increasingly stringent quality specifications while simultaneously reducing energy consumption, operational costs, and environmental impact. This article explores the technical evolution of clinker grinding, with particular focus on how ultrafine milling technologies are reshaping sustainable cement production practices.
The journey of clinker grinding technology began with the conventional ball mill, a workhorse of the industry for decades. These rotating cylinders filled with steel grinding media operate on the principle of impact and attrition, where the tumbling action of balls fractures clinker particles through repeated collisions. While effective for producing standard cement grades, ball mills suffer from inherent limitations: high specific energy consumption (typically 35-40 kWh/t for ordinary Portland cement), limited particle size control, and significant heat generation that can negatively affect cement quality.
The introduction of vertical roller mills in the late 20th century marked a significant advancement. By utilizing multiple grinding rollers that press against a rotating table, these systems employed the more efficient bed-compression grinding principle, reducing energy consumption by 15-20% compared to ball mills. The subsequent development of high-pressure grinding rolls (HPGR) further improved efficiency by applying extreme pressure to material beds, creating micro-cracks in clinker particles that facilitated downstream grinding.
The latest evolution comes in the form of specialized ultrafine mills, which combine multiple grinding mechanisms with advanced classification systems to achieve superior efficiency and product quality. These systems represent the current state-of-the-art in clinker comminution, offering unprecedented control over particle size distribution while minimizing energy input.
The performance characteristics of cement are intrinsically linked to its particle size distribution (PSD). While the traditional focus has been on Blaine fineness as a quality parameter, modern cement science recognizes that PSD provides a more comprehensive understanding of product behavior. Optimal cement performance requires a balanced distribution where:
Ultrafine grinding technologies excel in producing tailored PSD curves that maximize the proportion of reactive particles while minimizing energy-intensive overgrinding. The ability to precisely control the grinding and classification process allows producers to optimize the PSD for specific applications, whether prioritizing early strength, ultimate strength, or workability.
Modern ultrafine mills employ sophisticated mechanical systems that differ significantly from traditional grinding approaches. The most advanced systems utilize multiple grinding principles in sequence or combination to maximize efficiency:
Impact grinding occurs when particles fracture due to high-velocity collisions with grinding elements or other particles. This mechanism predominates in the initial size reduction phase and is particularly effective for brittle materials like clinker.
Compression grinding applies slow, sustained pressure to particle beds, causing fracture along natural cleavage planes. This mechanism generates fewer ultra-fines than impact grinding and is more energy-efficient for intermediate size reduction.
Attrition grinding involves the wearing away of material through the relative motion of grinding media in close proximity. This shearing action becomes increasingly important as particle size decreases and dominates the final stages of ultrafine grinding.
The most efficient systems sequentially apply these mechanisms, utilizing impact for initial coarse reduction, compression for intermediate sizing, and attrition for final finishing. This staged approach minimizes energy waste by applying the most appropriate breakage mechanism for each size class.
Integration of high-efficiency classifiers represents a critical advancement in ultrafine milling technology. Modern classifiers utilize aerodynamic principles to separate particles based on size, shape, and density, ensuring that only properly sized material exits the grinding circuit. The latest generation of turbo classifiers features:
These systems prevent overgrinding by quickly removing product-sized particles from the grinding zone, significantly reducing specific energy consumption while improving product quality consistency.

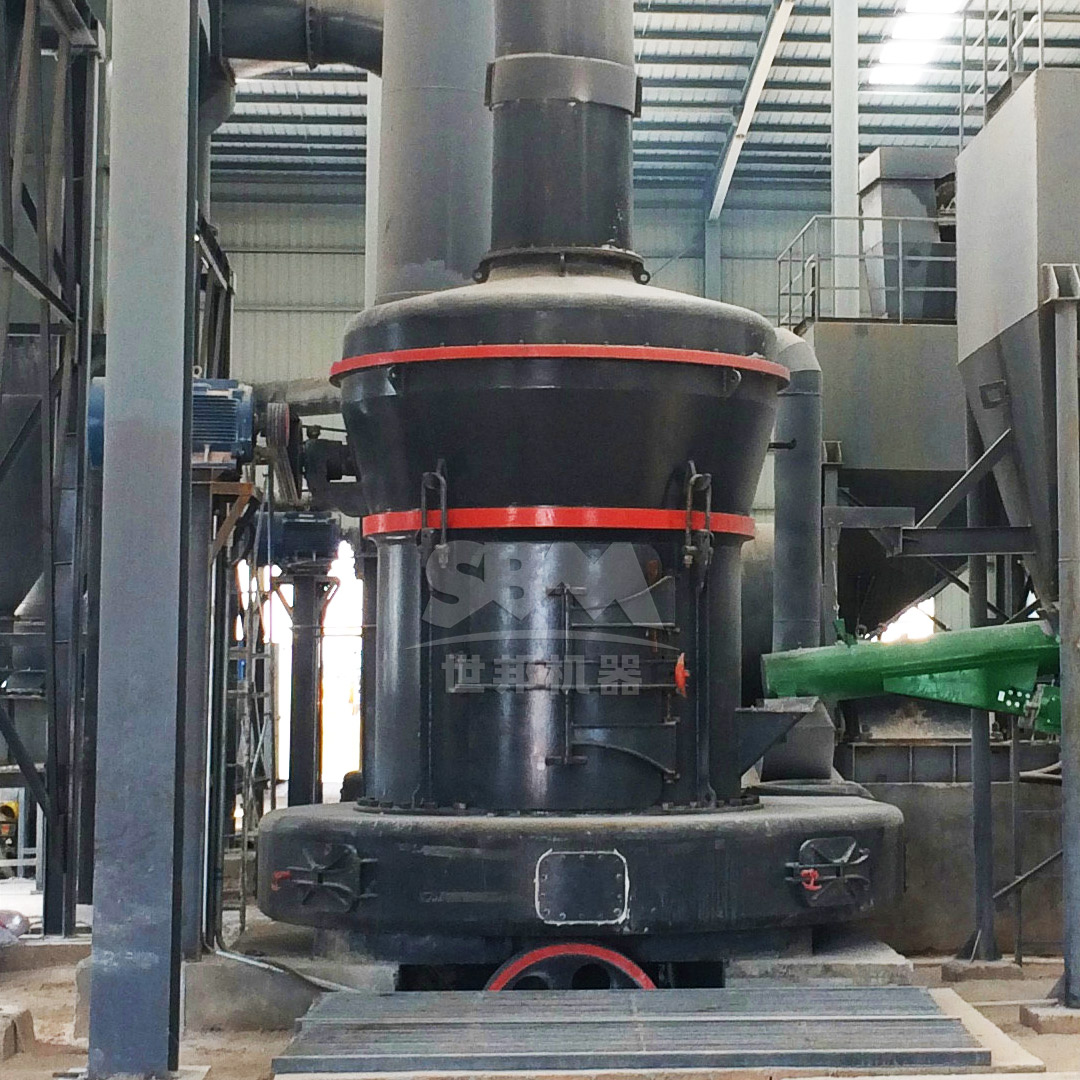

Among the advanced solutions transforming cement production, our SCM Series Ultrafine Mill stands out for its exceptional performance in clinker grinding applications. Engineered specifically for the demanding requirements of modern cement production, this system represents the culmination of decades of grinding technology innovation.
The SCM Ultrafine Mill delivers outstanding operational efficiency, achieving production rates up to double that of conventional jet mills while reducing energy consumption by 30%. This remarkable performance stems from several innovative design features:
The integrated intelligent control system continuously monitors and adjusts operating parameters in real-time, maintaining optimal grinding conditions despite variations in feed material characteristics. By automatically responding to changes in clinker hardness, moisture content, and feed rate, the system ensures consistent product quality while maximizing energy efficiency.
The proprietary vertical turbine classifier provides unparalleled precision in particle size control, enabling production of cement with fineness ranging from 325 to 2500 mesh (D97 ≤5μm). This precise classification eliminates coarse particle contamination, ensuring a uniform product that meets the most stringent quality specifications for specialty cements.
| Model | Capacity (ton/h) | Main Motor Power (kW) | Feed Size (mm) | Output Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | 0-20 | 325-2500 |
| SCM900 | 0.8-6.5 | 90 | 0-20 | 325-2500 |
| SCM1000 | 1.0-8.5 | 132 | 0-20 | 325-2500 |
| SCM1250 | 2.5-14 | 185 | 0-20 | 325-2500 |
| SCM1680 | 5.0-25 | 315 | 0-20 | 325-2500 |
The SCM series incorporates exceptional durability features specifically designed for the abrasive environment of clinker grinding. Special alloy materials for grinding rollers and rings provide service life several times longer than conventional components, significantly reducing maintenance requirements and downtime. The innovative bearingless screw grinding chamber design ensures stable operation even under varying load conditions, contributing to consistently high product quality.
Environmental performance exceeds international standards, with pulse dust collection efficiency reaching 99.9% and operational noise levels maintained below 75dB. These characteristics make the SCM Ultrafine Mill an ideal solution for cement plants operating in proximity to urban areas or in regions with strict environmental regulations.
For large-scale cement production facilities requiring high throughput with precise particle size control, our LM Series Vertical Roller Mill offers an optimal solution. This sophisticated grinding system combines high capacity with exceptional energy efficiency, making it particularly suitable for integrated cement plants producing multiple cement types.
The LM Vertical Roller Mill features a compact, integrated design that incorporates crushing, grinding, and classification functions within a single unit. This integrated approach reduces footprint requirements by 50% compared to traditional grinding circuits and can be configured for outdoor installation, cutting civil construction costs by up to 40%.
Operating on the efficient bed-compression principle, the system achieves specific energy consumption 30-40% lower than ball mill systems. The non-contact design between grinding rollers and the table, combined with specially developed wear materials, extends component service life up to three times that of conventional systems, dramatically reducing operating costs.
| Model | Grinding Disc Diameter (mm) | Capacity (t/h) | Output Fineness | Main Motor Power (kW) |
|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40μm (80-400 mesh) | 200 |
| LM150K | 1500 | 13-38 | 170-40μm (80-400 mesh) | 280 |
| LM170K | 1700 | 18-48 | 170-40μm (80-400 mesh) | 400 |
| LM190K | 1900 | 23-68 | 170-40μm (80-400 mesh) | 500 |
| LM220K | 2200 | 36-105 | 170-45μm (80-325 mesh) | 800 |
| LM280K | 2800 | 50-170 | 170-45μm (80-325 mesh) | 1250 |
An expert-level automatic control system enables fully automated operation with remote monitoring capabilities. The system continuously tracks critical operating parameters including grinding pressure, material bed thickness, classifier speed, and motor load, automatically adjusting settings to maintain optimal performance. This reduces operator intervention while ensuring consistent product quality despite variations in raw material characteristics.
The LM series maintains excellent environmental performance, operating under full negative pressure sealing to limit dust emissions to less than 20mg/m³ while keeping noise levels below 80dB(A). These features make it compatible with the most stringent environmental standards while supporting high-volume production requirements.
The transition to advanced ultrafine grinding technologies delivers substantial sustainability benefits, primarily through dramatic reductions in energy consumption. When comparing specific energy requirements across different grinding technologies, the advantages become clear:
Traditional ball mills typically consume 35-40 kWh per ton of ordinary Portland cement produced. Early vertical roller mills reduced this to 28-32 kWh/t, while modern ultrafine systems like the SCM series achieve remarkable efficiencies of 22-26 kWh/t for similar products. This represents a cumulative energy reduction of 30-40%, directly translating to lower operating costs and reduced carbon emissions.
Considering that cement production accounts for approximately 8% of global CO2 emissions, and grinding represents about 40% of electrical energy use in cement plants, widespread adoption of efficient grinding technology could reduce the industry’s carbon footprint by 3-4% globally. When combined with other decarbonization strategies, these technologies play a crucial role in the cement industry’s pathway to carbon neutrality.
Advanced grinding systems facilitate greater utilization of supplementary cementitious materials (SCMs), further enhancing sustainability. The ability to efficiently grind industrial by-products such as blast furnace slag, fly ash, and natural pozzolans enables higher substitution rates without compromising product performance.
Ultrafine grinding of SCMs not only improves their reactivity but also allows for more precise optimization of blended cement formulations. This capability supports the circular economy by converting industrial wastes into valuable construction materials while reducing clinker factors—the single most significant lever for reducing cement’s carbon footprint.
Selecting the appropriate grinding technology requires careful consideration of multiple factors beyond initial capital investment. A comprehensive evaluation should include:
Operational parameters including plant capacity requirements, product portfolio diversity, available space, and utility infrastructure. High-volume plants producing standard cement types may prioritize the high capacity of LM vertical mills, while facilities focusing on specialty cements might benefit from the precision of SCM ultrafine mills.
Economic factors encompassing not only equipment costs but also installation expenses, energy consumption, maintenance requirements, and component lifetime. While advanced grinding systems typically command higher initial investment, their superior efficiency often delivers payback periods of 2-3 years through reduced energy and maintenance costs.
Strategic considerations such as regulatory compliance, environmental performance, and compatibility with future production plans. Systems with lower noise and dust emissions provide greater flexibility for plants operating in regulated environments or near residential areas.
Modern grinding systems offer flexible integration options suitable for both greenfield projects and retrofitting existing facilities. For plants considering technology upgrades, key integration aspects include:
Feed system compatibility with existing clinker handling equipment, potentially requiring modifications to crushers, conveyors, and storage systems. The smaller feed size requirements of advanced mills (typically ≤20mm compared to ≤50mm for traditional systems) may necessitate additional pre-crushing capacity.
Product handling and storage considerations, as ultrafine cements may exhibit different flow characteristics than conventional products. Modifications to conveying, storage, and packing systems may be required to handle these materials efficiently.
Control system integration with existing plant automation infrastructure, ensuring seamless data exchange and coordinated operation across production units. Most modern grinding systems support standard communication protocols for straightforward integration.
The evolution of cement grinding technology continues, with several promising developments emerging from research laboratories and pilot installations. These advancements focus on further improving efficiency, reducing environmental impact, and enhancing product performance:
Advanced material science is yielding new wear-resistant alloys and ceramics that extend component lifetime in the abrasive grinding environment. Nano-structured coatings and composite materials promise to further reduce maintenance requirements and improve grinding efficiency.
Digitalization and Industry 4.0 technologies are being integrated into grinding systems, enabling predictive maintenance, real-time optimization, and remote operation. Artificial intelligence algorithms can continuously adjust operating parameters based on feed material characteristics and product requirements, maximizing efficiency across varying conditions.
Novel grinding aids and performance enhancers are under development, targeting specific chemical interactions that reduce energy consumption while improving product quality. These specialized additives work at the molecular level to facilitate particle breakage and prevent agglomeration.
Hybrid grinding systems that combine multiple technologies in optimized configurations offer another promising direction. These systems may integrate high-pressure grinding rolls for pre-processing followed by ultrafine mills for finishing, achieving superior overall efficiency by applying the most appropriate technology for each stage of size reduction.
The adoption of advanced ultrafine grinding technology represents a pivotal opportunity for the cement industry to enhance both economic and environmental performance. Systems like the SCM Ultrafine Mill and LM Vertical Roller Mill demonstrate that significant improvements in energy efficiency, product quality, and operational reliability are achievable with current technology.
As the industry confronts the dual challenges of growing demand and increasing sustainability requirements, innovative grinding solutions will play an essential role in balancing these competing priorities. The continued evolution of these technologies promises further advances, supporting the cement industry’s transition toward more sustainable production practices while maintaining the material performance required for modern construction.
For cement producers evaluating grinding technology options, a thorough assessment of operational requirements, economic factors, and strategic objectives will identify the optimal solution for their specific context. With proper selection and implementation, advanced grinding systems can deliver substantial benefits across the entire production value chain, positioning forward-thinking companies for success in an increasingly competitive and regulated marketplace.
