1. Introduction to Ceramic Grinding Standards

Ceramic raw material processing demands precise control over particle size distribution to achieve optimal sintering behavior and final product properties. International standards (ISO 14703, ASTM C322) define strict fineness requirements for ceramic powders, typically ranging from 45μm to sub-micron levels depending on application.

1.1 Key Fineness Parameters
Material Type D50 (μm) D97 (μm) Specific Surface Area (m²/g)
Traditional Ceramics 15-25 ≤45 0.8-1.2
Advanced Ceramics 0.5-2 ≤5 5-15
2. Ball Mill Grinding Technology

Conventional ball mills remain fundamental equipment for ceramic powder preparation, though modern alternatives now offer superior efficiency.

2.1 Technical Limitations
  • Energy efficiency: 3-5% energy utilization rate
  • Minimum achievable D97: ~10μm without classification
  • Overgrinding risks causing particle agglomeration
3. Advanced Grinding Solutions

For operations requiring finer powders or higher efficiency, we recommend considering our SCM Ultrafine Mill series which delivers superior performance for ceramic applications:

3.1 SCM Ultrafine Mill Technical Highlights
Model Capacity (t/h) Power (kW) D97 Range
SCM800 0.5-4.5 75 325-2500 mesh
SCM1250 2.5-14 185 325-2500 mesh
3.2 Comparative Advantages
  • Precision classification: Vertical turbine classifier achieves sharp particle size cuts (no coarse tailing)
  • Energy savings: 30% lower power consumption vs. conventional ball mills
  • Compact footprint: 50% space reduction compared to equivalent ball mill systems
4. Process Optimization Guidelines

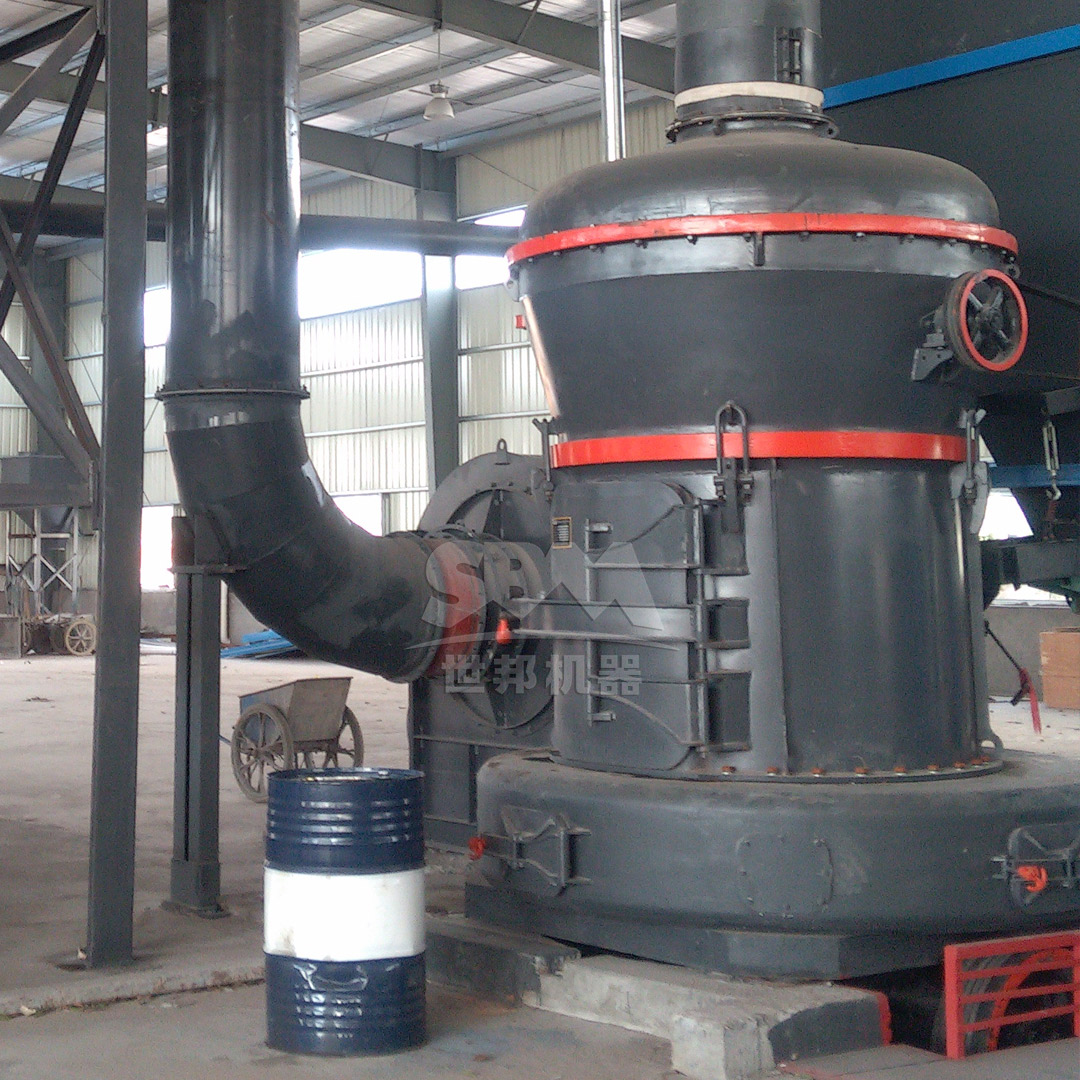

For operations still utilizing ball mills, consider our MTW Series Trapezium Mill as secondary grinding equipment to improve overall system efficiency:

4.1 MTW175G Key Features
  • Conical gear transmission (98% efficiency)
  • Curved air duct design reduces energy loss
  • 9.5-25t/h capacity for ceramic raw materials
4.2 Hybrid System Configuration
Process Stage Recommended Equipment Fineness Target
Primary Crushing Jaw Crusher ≤20mm
Intermediate Grinding Ball Mill D97≤100μm
Fine Grinding SCM Ultrafine Mill D97≤5μm
5. Quality Control Measures

Modern grinding systems should integrate real-time particle size monitoring with our recommended equipment:

5.1 Process Validation Protocol
  1. Laser diffraction analysis every 2 hours
  2. BET surface area verification daily
  3. Compaction density testing for batch consistency

For operations requiring technical consultation about transitioning from ball mills to more advanced systems, our engineering team can provide customized solutions based on your specific ceramic formulations and production requirements.
