Talc, a hydrated magnesium silicate mineral, is widely used in various industries including plastics, paints, cosmetics, pharmaceuticals, and paper due to its unique properties such as softness, chemical inertness, and plate-like structure. The value and performance of talc in these applications are heavily dependent on its particle size distribution and fineness. Ultrafine grinding is crucial for achieving the desired properties, particularly in high-value applications where superior brightness, opacity, and reinforcement are required. This article provides a comprehensive analysis of the best equipment for ultrafine talc grinding, focusing on technological principles, performance metrics, and operational efficiency.
Talc is one of the softest minerals on the Mohs scale, with a hardness of 1. This characteristic makes it both easy and challenging to grind. While low energy is required for size reduction, the platy nature of talc particles makes them prone to agglomeration and requires precise control over the grinding process to avoid over-grinding or particle damage. The target fineness for high-grade talc products typically ranges from 325 mesh (45 μm) to 2500 mesh (5 μm) D97. Achieving this narrow particle size distribution consistently is the primary challenge in talc processing.
Conventional grinding systems like ball mills and Raymond mills often struggle to achieve the required fineness with energy efficiency. They may also generate excessive heat, which can degrade the crystal structure of talc, affecting its brightness and reinforcing properties. Therefore, selecting the right grinding technology is paramount for producing high-quality talc powder.
When evaluating equipment for ultrafine talc grinding, several critical factors must be considered:
Various grinding technologies are available, each with its own advantages and limitations for talc processing.
Traditional ball mills operate on the principle of impact and attrition from grinding media (balls). While they are versatile and can handle a wide range of materials, they are generally not ideal for ultrafine grinding of talc. Their energy efficiency drops significantly as the target fineness increases below 45μm. Furthermore, the prolonged grinding time can lead to iron contamination from the grinding media and mill liners, which is detrimental to the whiteness of talc. The particle size distribution can also be broad and difficult to control precisely.
Jet mills use high-speed jets of compressed air or steam to particle-on-particle impact. They are capable of producing very fine powders without moving parts contacting the material, thus minimizing contamination. However, they are notoriously energy-intensive, with high operating costs due to compressed air consumption. They also have relatively low capacity compared to mechanical mills and may not be the most economical choice for high-volume talc production.
Vertical roller mills, such as the LM series, use a bed compression grinding principle where material is ground between a rotating table and rollers. They are known for their high energy efficiency and large capacity. For talc, certain VRM models can achieve a fineness of up to 600 mesh. They offer integrated drying and grinding, which can be beneficial if the raw talc has moisture. However, achieving the very finest end of the ultrafine spectrum (e.g., 2500 mesh) can be challenging with standard VRM designs, and wear on rollers and the table can be a concern, though modern designs use durable materials to mitigate this.
This category includes mills specifically engineered for the ultrafine range. They typically combine an efficient mechanical grinding mechanism with an integrated, high-efficiency air classifier. This allows for internal recirculation of coarse particles and precise cut-point control. The grinding action is often a combination of compression, shear, and attrition, which is well-suited for soft minerals like talc. These mills represent the state-of-the-art for producing high-value ultrafine talc powders with excellent control over particle shape and size distribution.

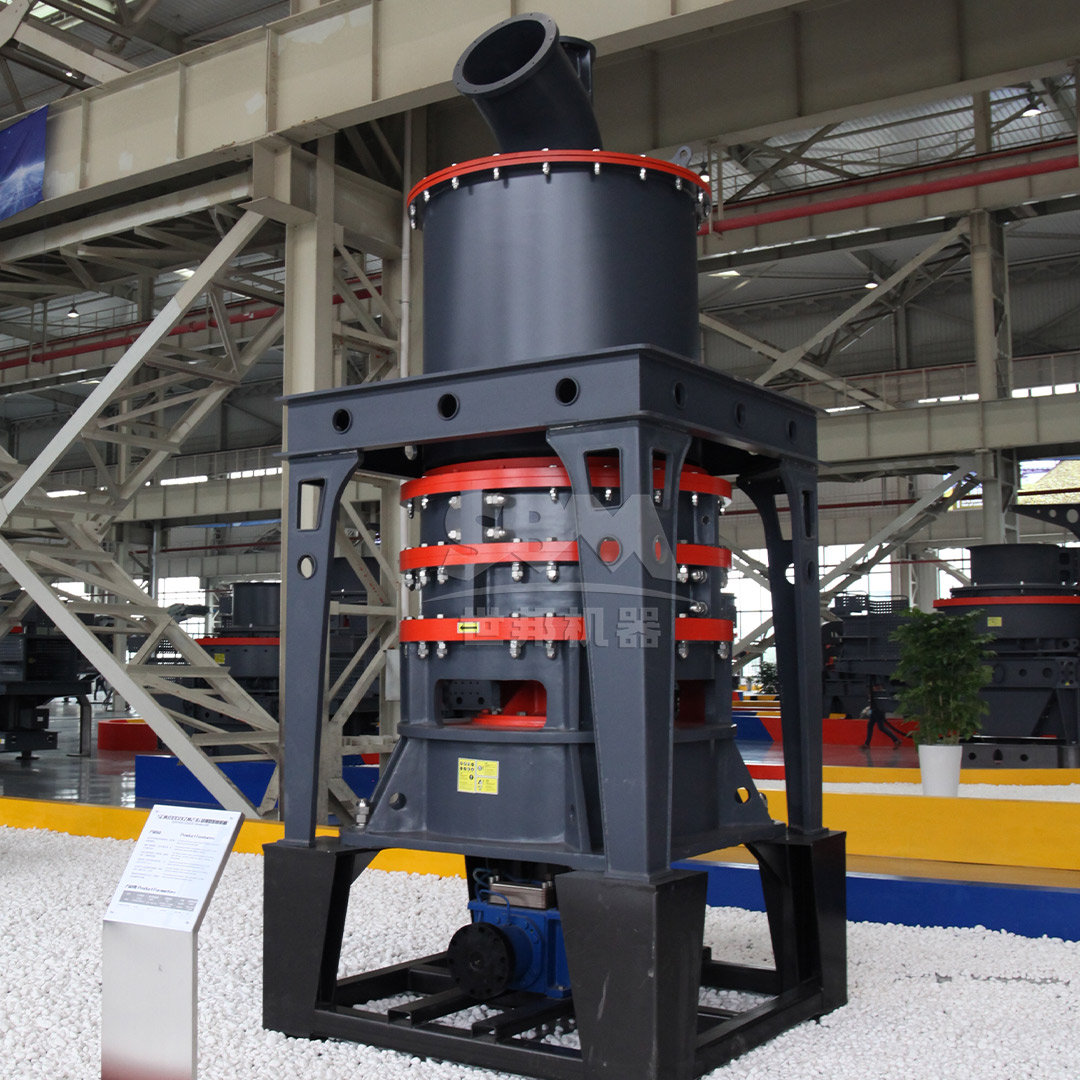

After a thorough evaluation of the available technologies, the SCM Ultrafine Mill emerges as the premier choice for the ultrafine grinding of talc. It is specifically designed to overcome the limitations of traditional mills and efficiently produce powders in the 325 to 2500 mesh range.
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Input Size (mm) | Output Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5 – 4.5 | 75 | ≤20 | 325-2500 |
| SCM900 | 0.8 – 6.5 | 90 | ≤20 | 325-2500 |
| SCM1000 | 1.0 – 8.5 | 132 | ≤20 | 325-2500 |
| SCM1250 | 2.5 – 14 | 185 | ≤20 | 325-2500 |
| SCM1680 | 5.0 – 25 | 315 | ≤20 | 325-2500 |

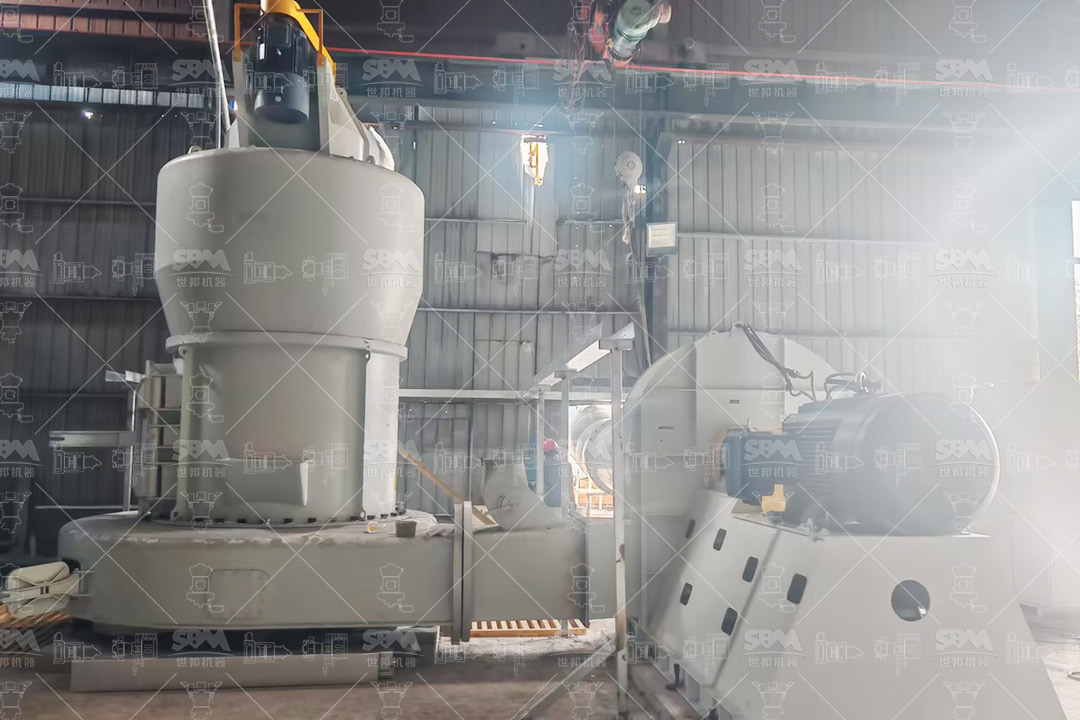

For applications where the target fineness is in the range of 30 to 325 mesh (600-45μm), the MTW Series Trapezium Mill presents an excellent and highly efficient alternative. It is a robust and reliable workhorse for medium-fine grinding of talc.
Key advantages of the MTW Series for talc grinding include its curved air duct design for reduced energy loss, a conical gear overall transmission system with 98% efficiency, and specially designed wear-resistant parts that lower maintenance costs. It is a perfect solution for producing talc fillers for plastics, paints, and ceramics where the ultra-fine fraction is not critical.
The successful operation of an ultrafine grinding system for talc involves more than just the mill itself. A typical setup includes a jaw crusher for primary size reduction, a bucket elevator or screw conveyor, a storage silo with a feeder, the SCM Ultrafine Mill, and a comprehensive collection system comprising a cyclone and a pulse bag filter.
Best practices include:
The pursuit of the best equipment for ultrafine talc grinding leads to technologies that offer precision, efficiency, and product integrity. While several options exist, the SCM Ultrafine Mill stands out for its ability to consistently produce talc powder in the 5-45μm range with superior energy efficiency, minimal contamination, and excellent environmental performance. For producers aiming to compete in the high-value talc market, investing in advanced grinding technology like the SCM series is not just an option but a strategic necessity to ensure product quality, reduce operational costs, and meet stringent industry standards.
