Molybdenum ore, as a critical strategic mineral resource, is widely used in the steel industry, aerospace, and chemical sectors. In the deep processing of molybdenum ore, grinding it to a 300-mesh powder is a crucial step that directly impacts the recovery rate in subsequent flotation or leaching processes. Achieving efficient and stable grinding while controlling costs has become a core concern for mineral processing companies. This article provides a professional guide on the equipment selection and production process for a 300 mesh molybdenum ore powder grinding mill, helping you choose the best solution for your production line.
Before selecting equipment, it is essential to understand the physical properties of molybdenum ore. Molybdenum ore typically has a Mohs hardness of 1.0 to 1.5, is relatively brittle, and has a specific gravity of about 4.7 to 5.0. Its grindability index is moderate, but due to the presence of gangue minerals such as quartz and pyrite, the wear on grinding equipment is significant. The target output fineness of 300 mesh (approximately 48 microns) requires the grinding mill to have both high grinding efficiency and precise classification capabilities to ensure that the product fineness is uniform and free of coarse particles.
When selecting a 300 mesh molybdenum ore powder grinding mill, the following factors must be considered: material feed size, capacity requirements, energy consumption, equipment wear resistance, and environmental standards. Based on the material characteristics and production demands, we recommend the following two high-efficiency models.
The SCM series is an ideal choice for grinding 300-mesh molybdenum ore powder. Its output fineness can be adjusted from 325 to 2500 mesh (45-5μm), easily meeting the 300 mesh requirement. The key technical advantage is its capacity being 2 times that of jet mills, with energy consumption reduced by 30%. Its vertical turbine classifier achieves precise particle size cutting, ensuring no coarse powder mixing in the 300 mesh product. Additionally, special material rollers and rings extend the service life several times, significantly reducing the frequency of replacing wear parts when processing molybdenum ore containing hard gangue minerals.
| Model | Capacity (t/h) | Main Power (kW) | Feed Size (mm) | Fineness (mesh) |
| SCM800 | 0.5-4.5 | 75 | 0-20 | 325-2500 |
| SCM1000 | 1.0-8.5 | 132 | 0-20 | 325-2500 |
| SCM1250 | 2.5-14 | 185 | 0-20 | 325-2500 |
The SCM series is highly suitable for medium to small capacity production lines, especially when high product fineness and uniform particle size distribution are required.

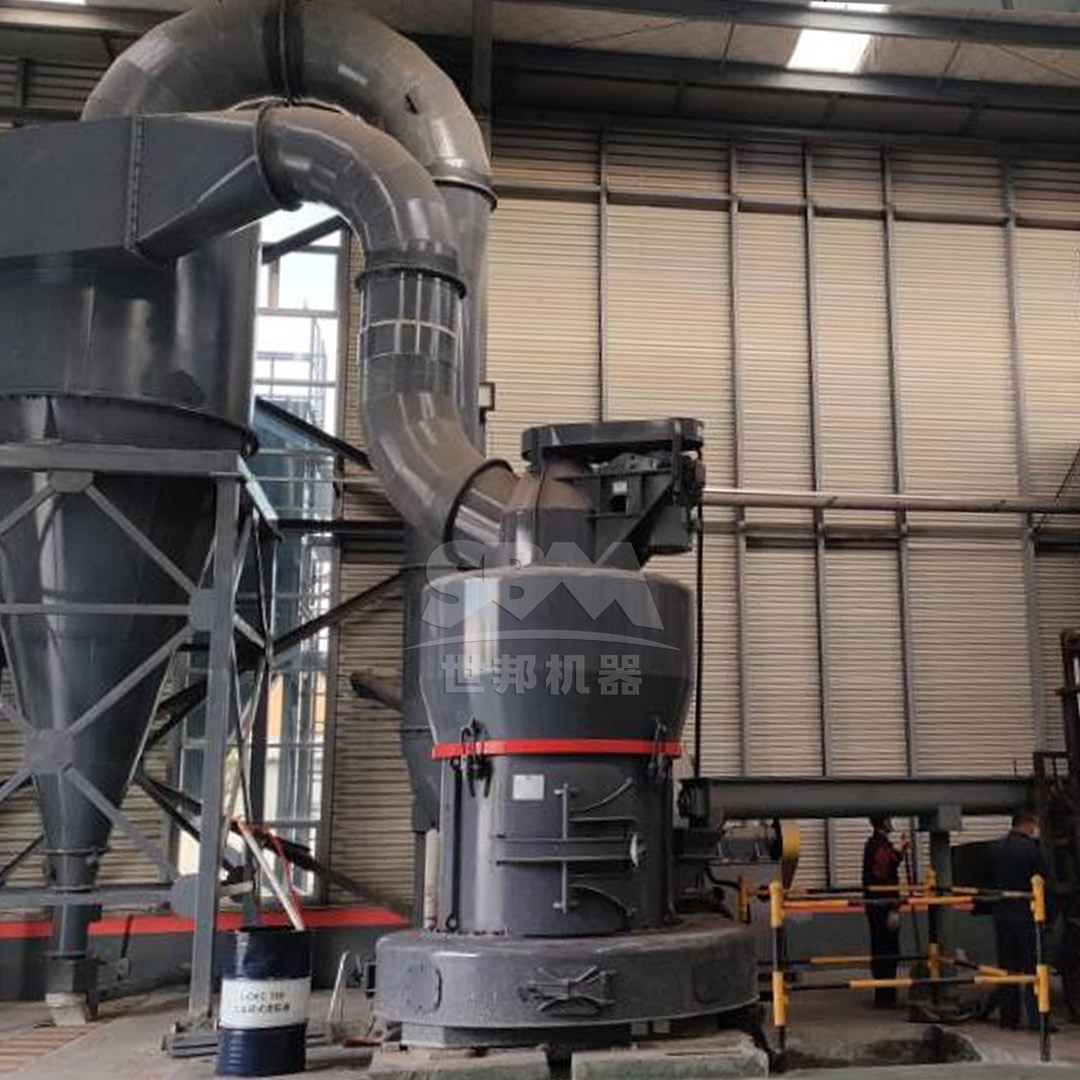

For large-scale molybdenum ore processing production lines, the MTW series is the better choice. Its output fineness ranges from 30 to 325 mesh (600-45μm), and the maximum capacity can reach 45 tons per hour. The unique anti-wear combined shovel blade design and integral bevel gear drive (with 98% transmission efficiency) make the equipment exceptionally stable when running under high loads. Its optimized arc air duct reduces airflow energy loss, effectively lowering energy consumption per ton of molybdenum ore powder. The wear-resistant volute structure further reduces maintenance costs by 30%, providing strong support for continuous large-scale operations.
| Model | Capacity (t/h) | Main Power (kW) | Feed Size (mm) | Fineness (mesh) |
| MTW138Z | 6-17 | 90 | <35 | 10-325 |
| MTW175G | 9.5-25 | 160 | <40 | 10-325 |
| MTW215G | 15-45 | 280 | <50 | 10-325 |
The MTW series is the top choice for large mining enterprises, as its powerful output capacity and mature technology significantly reduce the per-unit investment cost.
An efficient 300 mesh molybdenum ore powder grinding mill production line is not just about the mill itself; the configuration of the entire process is equally important.
Before the mill, a jaw crusher or hammer crusher is required to crush the raw molybdenum ore. The feed size for SCM and MTW series equipment is generally required to not exceed 20-50mm. A vibration feeder is used to ensure uniform and continuous feeding, preventing mill blockage. The MRN pendulum mill model can also be considered at this stage for its thin oil lubrication and high-capacity feeding characteristics.
This is the core stage. Taking the SCM series as an example, the main motor drives three layers of grinding rings to rotate. Material is dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. The vertical turbine classifier precisely separates the qualified 300 mesh powder, while coarse particles are returned for re-grinding. For the MTW series, the integral bevel gear drive ensures high efficiency, and the classification system precisely controls the finished product size. During operation, intelligent control systems can automatically adjust parameters based on real-time feedback of material fineness, ensuring smooth production.
Molybdenum ore grinding produces fine dust, making environmental protection equipment essential. Both the SCM and MTW series are equipped with advanced pulse dust removal systems, achieving collection efficiency exceeding international standards. The fully sealed negative pressure operation and soundproof room design ensure noise levels comply with environmental regulations, making green production a reality.
For small to medium production lines (0.5-14 t/h) requiring extremely fine powder (below 300 mesh), it is recommended to prioritize the SCM series due to its efficient ultrafine grinding capability and wear-resistant design. For large-scale production (6-45 t/h), the MTW series is more economical, offering higher capacity and lower operating costs. If the grinding system needs to integrate functions like pre-grinding or sand making, the LM-Y vertical pre-grinding roller mill series is also a strong candidate, as its bed grinding principle can reduce energy consumption by 30-50%.
Choosing the right 300 mesh molybdenum ore powder grinding mill requires balancing investment, operating costs, and product quality. The SCM and MTW series grinding mills from our company, with their leading technology, high efficiency, and environmental performance, are the preferred solutions for the molybdenum ore deep processing industry. We invite you to contact us for a customized production line design and equipment quotation.
