Quartz powder with a fineness of 400 mesh (approximately 38 microns) is a critical raw material in industries ranging from electronics and ceramics to glass manufacturing and construction. Achieving this specific particle size consistently and efficiently requires specialized grinding equipment. As a leading manufacturer of industrial milling solutions, we offer a comprehensive range of machines designed to meet the rigorous demands of ultra-fine quartz processing. This article explores the key machinery for producing 400 mesh quartz powder, highlighting the technical advantages that ensure high throughput, energy efficiency, and product uniformity.
Quartz, with a Mohs hardness of 7, is notoriously abrasive and brittle. Traditional grinding methods often lead to high wear rates, excessive energy consumption, and inconsistent particle size distribution. To produce 400 mesh quartz powder economically, manufacturers must rely on equipment designed for high-precision classification and durable wear protection. Two principal types of mills are ideal for this task: ultra-fine grinding mills for sub-400 mesh production and pendulum or trapezium mills for coarser feeds.

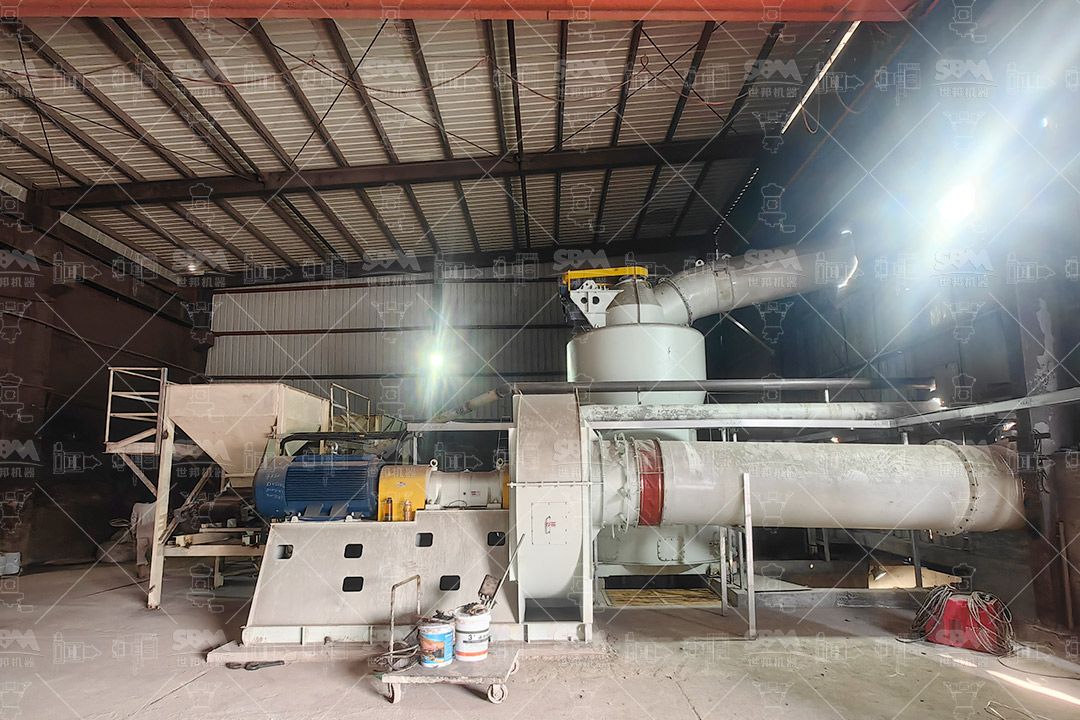

For applications requiring a fineness of 325 to 2500 mesh, ultra-fine mills are the preferred solution. The SCM Series Ultrafine Mill is engineered specifically for this range. With an input size of up to 20mm, it can produce a final fineness from 325 mesh down to 5 microns (2500 mesh). Its capacity ranges from 0.5 to 25 tons per hour, making it suitable for both medium and large-scale operations.
The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. The vertical turbine classifier ensures precise particle size cutting, preventing coarse powder mixing. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system, ensuring a clean working environment.
We recommend the SCM1000 Ultrafine Mill for mid-scale 400 mesh quartz powder production. With a main power of 132kW and a capacity of 1.0-8.5t/h, it provides the perfect balance of throughput and precision for most industrial quartz powder plants. Its ability to consistently produce 400 mesh (38 micron) powder with minimal oversize particles makes it a top choice for high-value applications.
For operations that require higher throughput rates for 400 mesh production, pendulum mills like the MTW Series European Trapezium Mill are excellent alternatives. This mill can handle feed sizes up to 50mm and produce fineness from 30 to 325 mesh. While its primary range is coarser than the SCM series, it excels at producing 325-400 mesh quartz with remarkable energy efficiency and lower operating costs due to its anti-wear shovel design and integral bevel gear drive (transmission efficiency up to 98%).
For large-scale 400 mesh quartz powder production exceeding 10 tons per hour, we recommend the MTW215G European Trapezium Mill. This model offers a capacity of 15-45 t/h with a main power of 280kW. Its robust design and high-capacity classification system make it ideal as a primary grinder for quartz, capable of handling larger feed sizes while maintaining the required 400 mesh output.

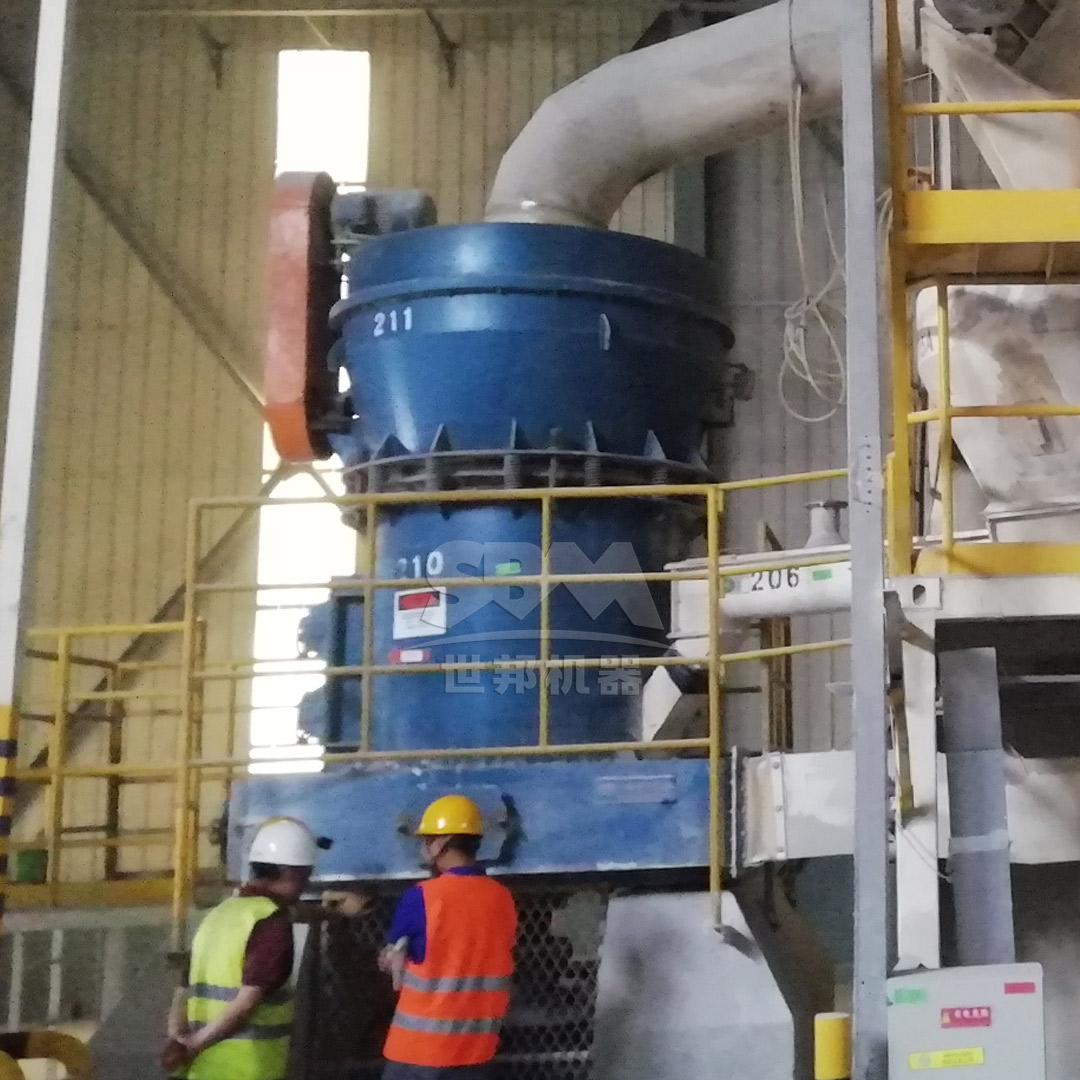

A complete 400 mesh quartz powder plant involves more than just the grinding mill. Key auxiliary machines include:
The choice between an ultrafine mill and a trapezium or pendulum mill for 400 mesh quartz production depends on three factors:
| Factor | SCM Ultrafine Mill (Recommended for 400 Mesh) | MTW Trapezium Mill (Recommended for 400 Mesh) |
|---|---|---|
| Target Fineness Precision | Excellent (No coarse mixing, uniform D50) | Very Good (Precise classifier) |
| Feed Size Tolerance | ≤20mm | ≤50mm |
| Best Capacity Range (400 Mesh) | 1 – 25 t/h | 10 – 45 t/h |
| Wear Part Life (on Quartz) | Extended (Special alloy rollers) | Good (Anti-wear shovel & volute) |
| Energy Consumption | Low (30% less vs Jet Mill) | Very Low (Integral drive) |
| Parameter | Value |
|---|---|
| Model | SCM1000 |
| Input Size | ≤20 mm |
| Output Fineness | 325-2500 mesh (Ideal at 400 mesh) |
| Capacity | 1.0 – 8.5 t/h |
| Main Power | 132 kW |
| Application | Ultra-fine quartz powder |
Producing high-quality 400 mesh quartz powder requires a strategic approach to equipment selection. The SCM1000 Ultrafine Mill stands out for its precision and energy efficiency in ultra-fine applications, while the MTW215G Trapezium Mill offers unmatched capacity for larger operations. By integrating these key machines with robust pre-crushing and dust collection systems, manufacturers can achieve the highest standards of product quality and operational efficiency. Our team specializes in configuring complete quartz grinding solutions tailored to your specific capacity and fineness requirements.
