The pursuit of excellence in specialty ceramics manufacturing is intrinsically linked to the quality of its primary raw material: kaolin. This hydrous aluminum silicate clay, renowned for its plasticity, whiteness, and fine particle size, forms the backbone of high-performance applications ranging from electronic substrates and dental prosthetics to advanced refractories and catalytic converters. The transition from raw clay to a high-purity, precisely engineered ceramic powder is a metamorphosis dictated by advanced comminution technology. The ultimate properties of the final sintered product—including mechanical strength, thermal stability, dielectric constant, and surface finish—are profoundly influenced by the particle size distribution (PSD), purity, and morphological characteristics of the milled kaolin powder. Consequently, selecting the optimal milling technology is not merely an operational decision but a strategic one that defines product performance and market competitiveness.
Processing kaolin to meet the exacting standards of the specialty ceramics industry presents a unique set of challenges that not all milling systems are equipped to handle. Kaolin’s inherent hardness, though moderate, requires a milling force that minimizes the introduction of iron contamination from wear parts, a critical factor for maintaining whiteness and electrical properties. Furthermore, the platy, lamellar structure of kaolin particles is essential for imparting strength and plasticity; an overly aggressive milling action can destroy this structure, negatively impacting the rheology of ceramic slips and the green strength of formed bodies. The goal is to achieve delamination and size reduction through a combination of shear and compression rather than impact shattering.
Energy consumption represents another significant hurdle. Traditional ball mills, while capable of fine grinding, are notoriously energy-inefficient, with a large portion of input energy being lost as heat and noise. Modern operations demand solutions that offer a superior grind at a fraction of the power draw. Finally, the system must be designed for consistent product quality. Narrow particle size distributions are mandatory for achieving uniform sintering behavior and predictable shrinkage. Any process that allows for coarse particle tailing or inconsistent grading will yield a ceramic component with compromised integrity and performance.
The evolution of grinding technology has moved beyond simple crushing to sophisticated systems that integrate milling, classification, and collection into a single, automated process. The key for kaolin is moving to mills that utilize a bed-compression grinding principle, such as vertical roller mills and advanced ring-roller mills. These systems excel by applying a rolling or centrifugal force to press the feed material against a stationary grinding ring or table, effectively nipping and shearing the kaolin particles apart. This method is inherently more efficient and generates less heat than impact-based pulverization.
Integral to these modern systems is highly precise air classification. After initial grinding, the powder is pneumatically conveyed to an internal dynamic classifier. High-speed rotating turbines generate a centrifugal field that separates particles by mass and size. Finer, lighter particles pass through the classifier blades for collection, while coarser, heavier particles are rejected and returned to the grinding zone for further processing. This closed-loop system ensures that only product meeting the specified fineness (e.g., D97 ≤ 5µm) exits the mill, guaranteeing batch-to-batch consistency. This level of control is unattainable with open-circuit systems like traditional ball mills.
For producers targeting the most demanding high-performance ceramic markets, where fineness requirements often extend into the 2500 mesh (5µm) range, the SCM Ultrafine Mill represents an ideal technological solution. This mill is engineered from the ground up for producing ultra-fine powders with unparalleled precision and efficiency.
The SCM series operates on a layered grinding principle driven by a powerful main motor. Material is fed into the mill and centrifugally dispersed to the grinding track, where multiple grinding rollers rotate to apply progressive compressive force. The vertical turbo-classification system is the heart of its precision, ensuring sharp particle size cuts and a finished product completely free of coarse grit. This is critical for ceramics, where even a few oversized particles can act as failure points under thermal or mechanical stress.
Beyond performance, the SCM mill is built for durability and sustainability. Its grinding rollers and rings are manufactured from special wear-resistant alloys, drastically extending service life and minimizing iron contamination—a paramount concern for high-whiteness kaolin. The fully sealed grinding chamber and pulse dust removal system achieve a collection efficiency exceeding 99.9%, ensuring a clean operating environment and eliminating product loss. Furthermore, its intelligent control system automatically adjusts operational parameters in real-time based on feedback for finished product size, optimizing energy use and delivering 30% lower energy consumption compared to jet mills of similar capacity.
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Feed Size (mm) | Final Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | ≤20 | 325-2500 |
| SCM900 | 0.8-6.5 | 90 | ≤20 | |
| SCM1000 | 1.0-8.5 | 132 | ≤20 | |
| SCM1250 | 2.5-14 | 185 | ≤20 | |
| SCM1680 | 5.0-25 | 315 | ≤20 |

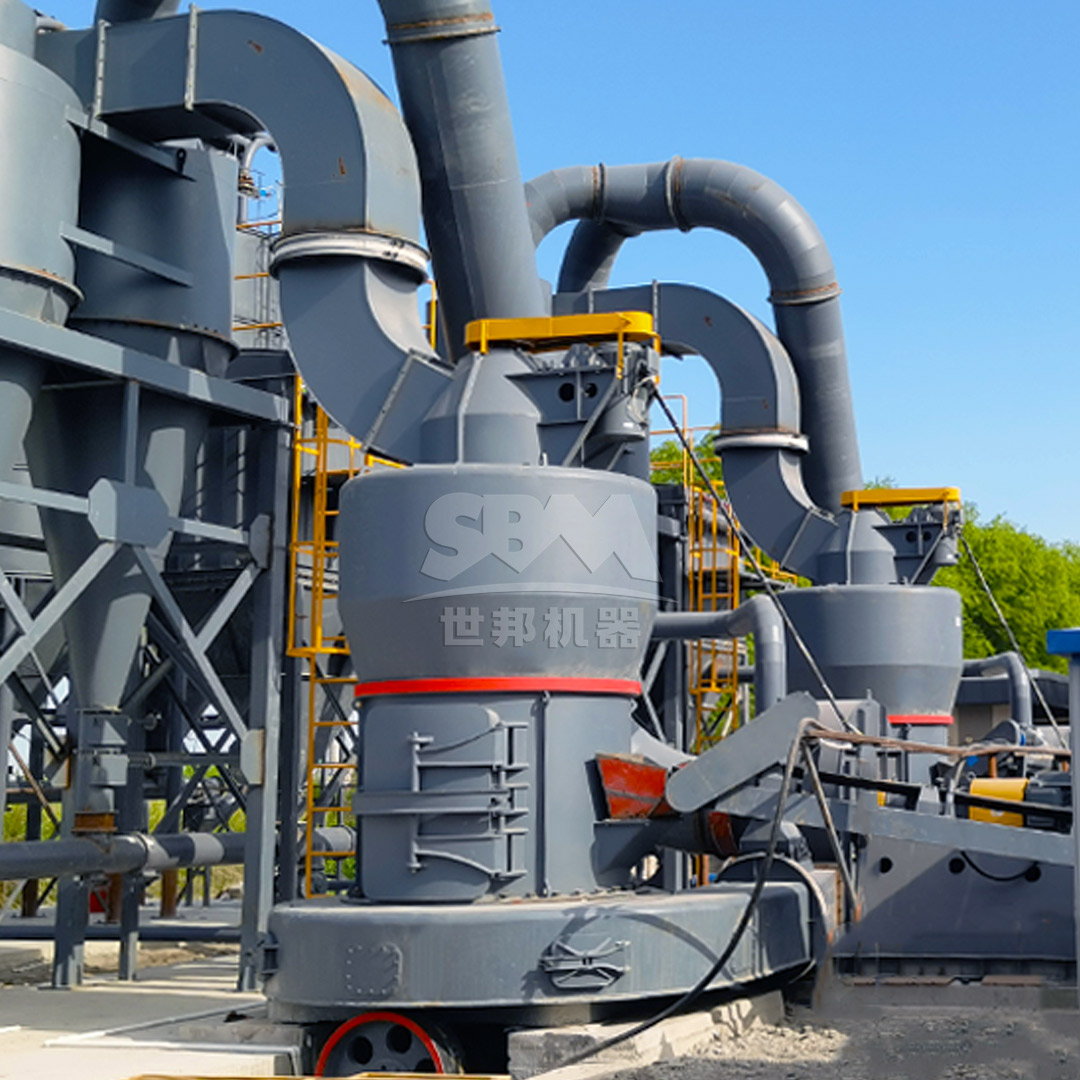

For operations requiring high-capacity processing of kaolin to fine and medium-fine grades (30-325 mesh), the MTW Series Trapezium Mill offers a robust and economical solution. This mill is designed for reliability and low operating costs, making it perfect for large-scale production of ceramic body slips, glazes, and filler materials.
The MTW mill features several innovative designs that enhance its suitability for kaolin. Its curved air duct minimizes airflow resistance and energy loss, improving overall transmission efficiency. The wear-resistant shovel blades are designed with a combined structure, making them easy to replace and significantly reducing maintenance downtime and costs. The core of its durability lies in the integral conical gear transmission, which delivers power with 98% efficiency in a compact, space-saving design that is far more reliable than traditional gearbox and belt drive systems.
This mill excels in producing consistent, well-classified kaolin powder with excellent throughput. Its sturdy construction and intelligent design choices, such as the abrasion-resistant volute structure, make it a workhorse for ceramic plants focused on productivity and long-term operational economy without compromising on product quality.
The pathway to manufacturing superior specialty ceramics is paved with precisely processed kaolin. In an increasingly competitive market, the limitations of outdated milling technology—high energy costs, product inconsistency, and excessive contamination—are no longer acceptable. Investing in advanced, integrated milling systems like the SCM Ultrafine Mill and the MTW Trapezium Mill is a strategic imperative.
These technologies provide the necessary control over particle size and morphology, ensure product purity, and dramatically improve process efficiency. They transform kaolin processing from a simple cost center into a value-adding operation that directly enhances the performance, reliability, and marketability of the final ceramic product. By adopting these ultra-fine mill solutions, producers can not only optimize their current operations but also position themselves at the forefront of innovation in the high-performance ceramics industry.
