Quartz Powder Grinding Mill: Essential Equipment for High-Purity Fiber Optic Glass Production

Quartz Powder Grinding Mill: Essential Equipment for High-Purity Fiber Optic Glass Production

Introduction: The Critical Role of Quartz Powder in Fiber Optic Manufacturing

The production of high-purity fiber optic glass demands exceptionally stringent material specifications, with quartz powder being the fundamental raw material. The quality of this powder directly determines the optical transmission efficiency, signal loss, and overall performance of the final optical fibers. Achieving the required chemical purity and precise particle size distribution is impossible without advanced grinding technology. This article explores the technical requirements for quartz powder in fiber optic applications and examines how modern grinding mills, particularly ultrafine models, meet these challenges.

1. Material Specifications for Fiber Optic Quartz Powder

Fiber optic grade quartz powder must adhere to extreme standards far beyond those of conventional industrial minerals. The primary requirements include:

• Chemical Purity: Silica (SiO₂) content must exceed 99.995%, with strict limits on metallic impurities like Iron (Fe), Copper (Cu), and Potassium (K), each typically restricted to below 1 part per million (ppm). These contaminants can cause significant signal attenuation by absorbing light.
• Particle Size Distribution (PSD): A narrow, controlled PSD is crucial. The target fineness often falls within the range of 325 to 2500 mesh (approximately 45 to 5 micrometers). A consistent D97 value ensures uniform melting and reaction kinetics during the glass synthesis process, preventing defects like bubbles or inclusions.
• Morphology: The shape of the powder particles influences the packing density and flow characteristics. While some angularity is acceptable, excessive sharp edges can lead to handling issues and inconsistent melting.

Any deviation from these specifications can introduce light-scattering centers, absorption sites, or structural weaknesses into the drawn fiber, compromising its data transmission capabilities.

2. The Grinding Challenge: Achieving Purity and Fineness

Grinding high-purity quartz to the sub-10-micron level presents a dual challenge: achieving the target fineness while preventing contamination from the grinding media and mill components. Traditional ball mills, while capable of fine grinding, often introduce significant metallic wear debris from the grinding balls and liners, rendering the powder unsuitable for high-end optical applications. Furthermore, inefficient classification systems can lead to broad particle size distributions, causing processing inconsistencies.

Therefore, the ideal grinding mill for this application must feature:

• Minimal Contamination: Use of specialized, wear-resistant materials in grinding components that come into contact with the quartz.
• High-Precision Classification: An integrated, efficient air classifier capable of making sharp cuts to ensure a tight particle size distribution.
• Energy Efficiency: A grinding mechanism that minimizes energy consumption per ton of product, as fine grinding is inherently energy-intensive.
• Closed, Cleanable System: A fully enclosed system that operates under negative pressure to prevent dust escape and allow for thorough cleaning between batches to avoid cross-contamination.

3. Recommended Solution: SCM Ultrafine Mill for High-Purity Applications

For producers of fiber optic quartz powder, the SCM Series Ultrafine Mill represents an optimal technological solution. Its design philosophy and technical features are specifically aligned with the demands of high-purity, fine powder production.

The SCM Mill’s core parameters make it exceptionally suitable for this task:

The technical advantages of the SCM Ultrafine Mill are particularly relevant:

• Efficient and Energy-Saving: With a capacity twice that of jet mills and 30% lower energy consumption, it significantly reduces operational costs. Its intelligent control system automatically monitors and adjusts for consistent product fineness.
• High-Precision Classification: The vertical turbine classifier is the heart of the system, ensuring accurate size cuts and preventing coarse particles from contaminating the final product, resulting in superior uniformity.
• Durable, Low-Contamination Design: The grinding rollers and ring are made from special wear-resistant materials, extending service life and, critically, minimizing the introduction of metallic impurities. The innovative bearingless screw grinding chamber enhances operational stability.
• Environmental and Low Noise: The pulse dust collector exceeds international standards, ensuring a clean working environment. The soundproof chamber design keeps noise levels below 75dB.

The working principle involves a main motor driving multiple layers of grinding rings. Quartz feedstock is centrifugally dispersed into the grinding raceway, where it is pulverized by roller pressure in a multi-stage process. The final powder is efficiently collected by a cyclone collector and pulse dust removal system.

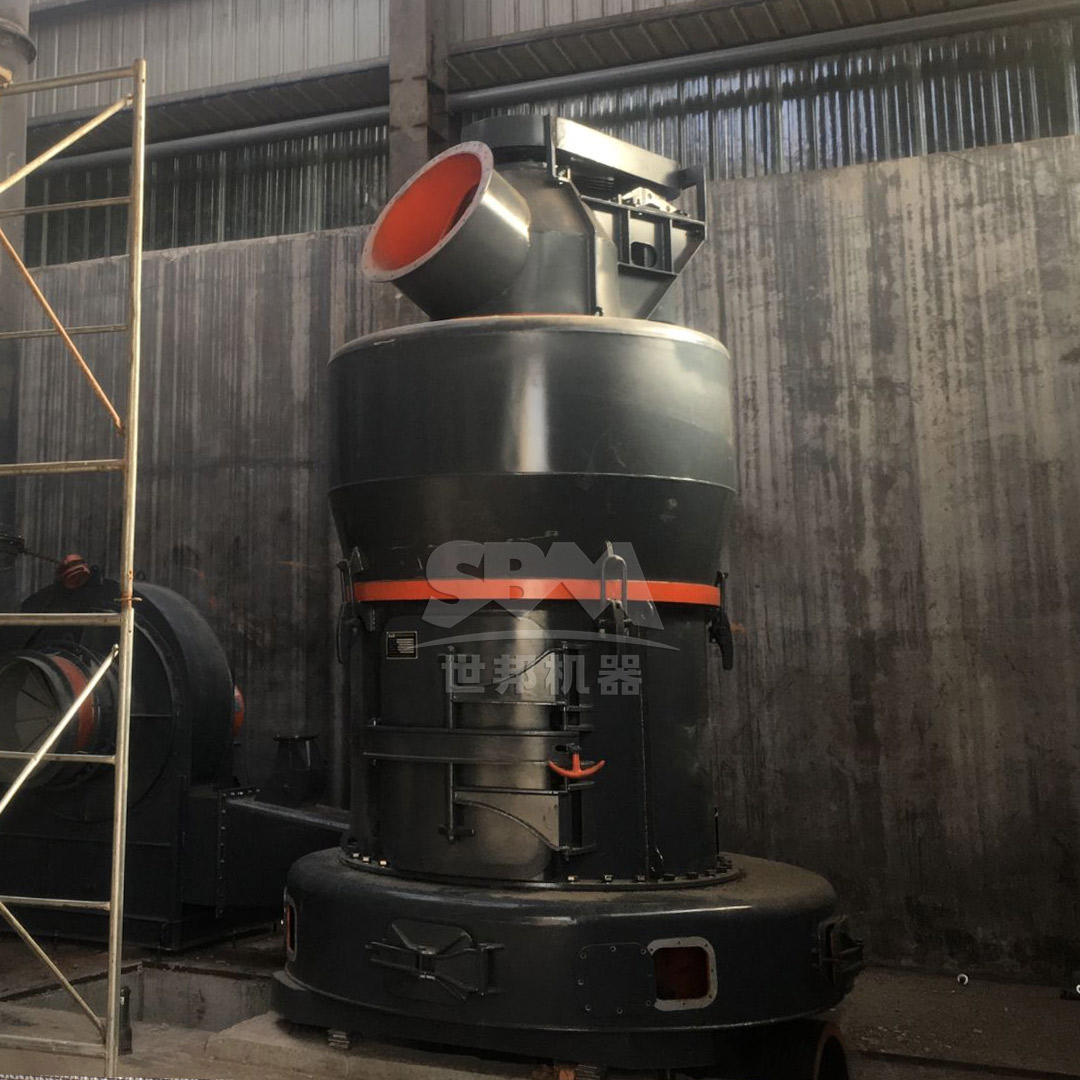

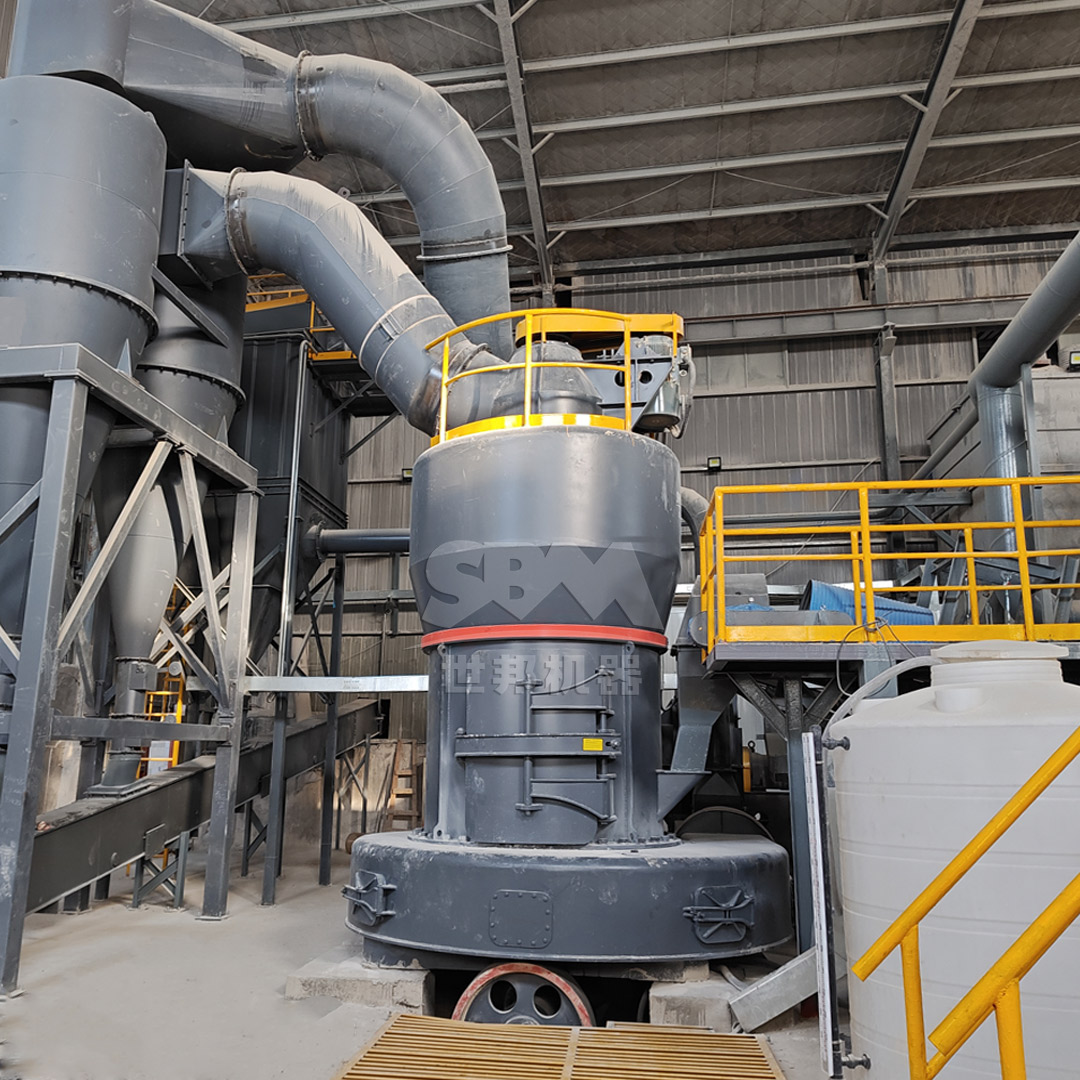

4. Alternative for Coarser Requirements: MTW Series Trapezium Mill

For applications requiring slightly coarser quartz powder or for the initial size reduction stages, the MTW Series Trapezium Mill is a robust and efficient choice. It is engineered for high capacity and reliability with features that benefit mineral processing.

Key advantages include its wear-resistant shovel design, optimized curved air channel for reduced energy loss, and high-efficiency bevel gear transmission. Its working principle involves grinding rollers revolving around a central axis while rotating themselves, creating a rolling and crushing effect on the material bed formed between the rollers and the grinding ring.

5. Mill Selection and Operational Considerations

Selecting the right mill involves a careful analysis of production goals. For dedicated, high-volume production of ultrafine fiber optic powder, the SCM series is the definitive choice. Its ability to consistently produce 5-micron powder with low contamination is unmatched. For integrated plants that may process a range of materials, the versatility of the MTW series might be advantageous.

Operational best practices are vital for maintaining product quality:

• Feedstock Control: Ensure the input quartz is properly beneficiated and pre-crushed to the mill’s specified feed size.
• Wear Part Monitoring: Regularly inspect and replace grinding rollers and rings according to the manufacturer’s schedule to maintain efficiency and purity.
• System Cleaning: Implement strict cleaning protocols between batches, especially when switching material grades, to prevent cross-contamination.

Conclusion

The relentless pursuit of higher bandwidth and lower signal loss in global communications infrastructure hinges on the quality of fiber optic glass. This quality is fundamentally rooted in the purity and physical characteristics of the quartz powder from which it is made. Advanced grinding mills are not merely auxiliary equipment but are essential, core technologies enabling this industry. The SCM Ultrafine Mill, with its precision grinding and classification capabilities, stands out as a critical tool for manufacturers aiming to compete in the high-stakes market of high-purity optical materials. By investing in the right grinding technology, producers can ensure consistent product quality, optimize production efficiency, and contribute to the advancement of global telecommunications.
