Titanium alloy powders are critical raw materials for additive manufacturing (3D printing), aerospace components, medical implants, and high-performance automotive parts. The production of high-quality titanium alloy powder requires specialized grinding and classification equipment capable of achieving precise particle size distribution, high purity, and consistent morphology. As the industry moves toward finer powders (often below 45 microns) with tight tolerances, the choice of milling technology becomes paramount. This article explores the key machines used in titanium alloy powder production lines, highlighting their technical advantages, working principles, and how they contribute to superior end-product quality.
Before fine grinding can occur, raw titanium alloy ingots, turnings, or sponge must be reduced to a manageable size. Hammer mills and jaw crushers are typically used in the first stage. For example, our PC Series Hammer Mill (models PC4008-75 to PC4015-132) can reduce feed material from 0-40mm down to 0-3mm with high efficiency. This initial size reduction ensures that downstream mills operate at optimal capacity and prevents oversized particles from damaging precision grinding equipment.

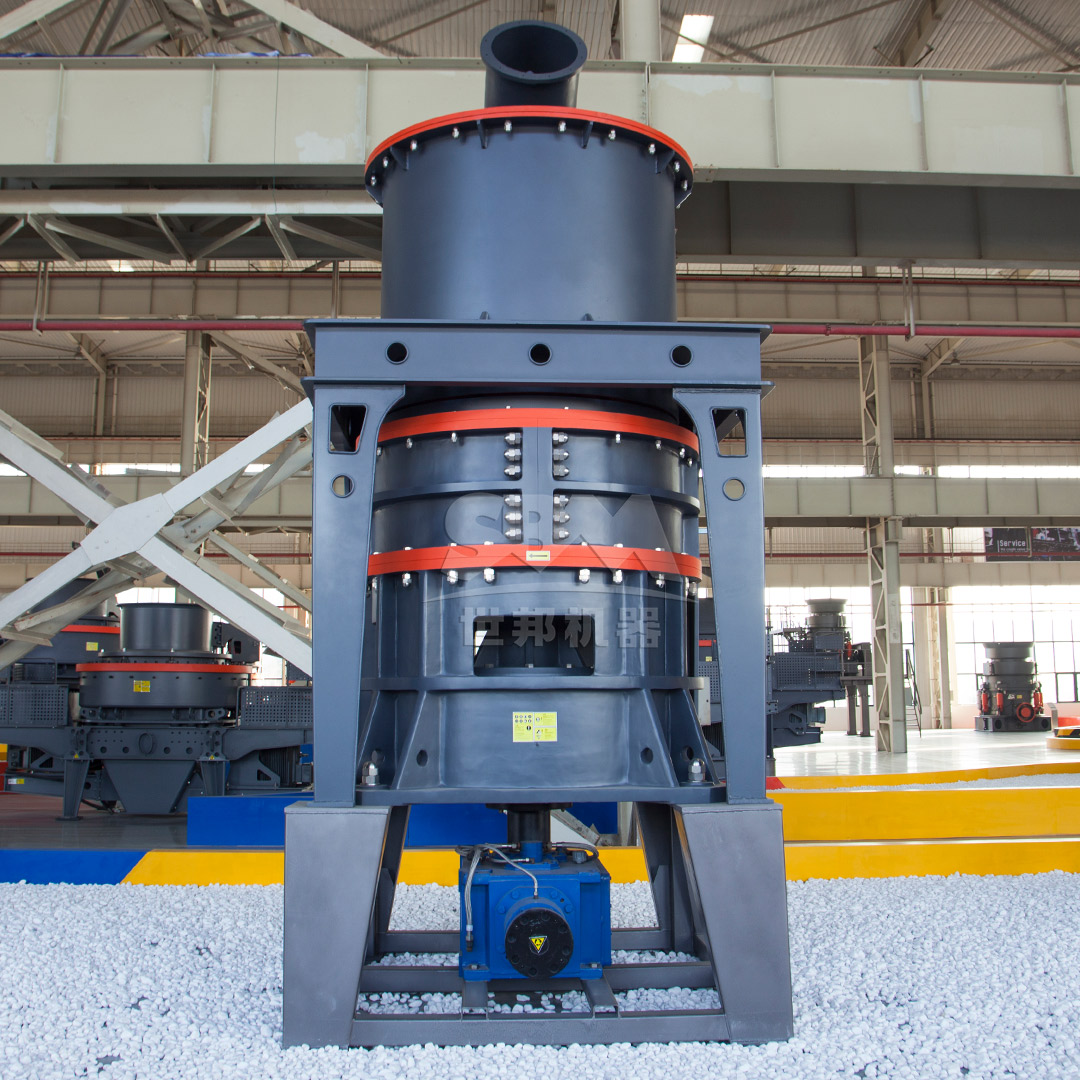

The SCM Series Ultrafine Mill is specifically designed for producing ultrafine titanium alloy powders in the 325-2500 mesh range (45-5 microns). This machine is the core workhorse for high-value metal powder applications. With a feed size of ≤20mm and capacity ranging from 0.5 to 25 ton/h, the SCM mill offers several advantages critical for titanium powder production:
Working Principle: The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Powder collection is completed by a cyclone collector and pulse dust removal system.
| Model | Capacity (t/h) | Main Power (kW) | Feed Size (mm) | Fineness (mesh) |
|---|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | 0-20 | 325-2500 |
| SCM900 | 0.8-6.5 | 90 | 0-20 | 325-2500 |
| SCM1000 | 1.0-8.5 | 132 | 0-20 | 325-2500 |
| SCM1250 | 2.5-14 | 185 | 0-20 | 325-2500 |
| SCM1680 | 5.0-25 | 315 | 0-20 | 325-2500 |
For titanium alloy powder producers seeking even finer particles (down to 5 microns) with higher throughput, the LUM Ultrafine Vertical Roller Mill is an excellent choice. This mill uses unique roller and liner curves to improve grinding efficiency, combined with multi-rotor classification technology that eliminates coarse particle contamination. With a feed size of 0-20mm and fineness ranging from 325-2500 mesh, the LUM series is ideal for demanding applications like medical-grade titanium powders.
| Model | Power (kW) | Capacity (t/h) | Fineness (μm) |
|---|---|---|---|
| LUM1525 | 220-250 | 1.6-11.5 | 5-30 |
| LUM1632 | 280-315 | 2-13.5 | 5-30 |
| LUM1836 | 355-400 | 2.3-15 | 5-30 |
For titanium powder production where the target fineness is between 30 and 325 mesh (600-45 microns), the MTW Series European Trapezium Mill offers robust performance. Key features include anti-wear shovel design with combined blades that reduce maintenance costs, optimized arc air duct reducing airflow energy loss, and integral bevel gear drive achieving 98% transmission efficiency. With capacities from 3 to 45 ton/h and feed sizes up to 50mm, this mill handles larger titanium particles efficiently while maintaining precise classification.
The MTM Series provides another reliable option for medium-fine titanium grinding (45-325 mesh). Its intelligent spring pressure system automatically compensates for roller wear, extending roller and ring life by 30%. The innovative roller assembly with horizontal pull-rod connection protects main shaft bearings when processing large or tough titanium particles.
When production volumes demand high throughput (up to 250 ton/h), the LM Series Vertical Roller Mill is the equipment of choice. Its integrated design combines crushing, grinding, and selection in one system, reducing floor space by 50% and infrastructure costs by 40%. For titanium alloy powder, the LM series offers non-contact roller-table design that extends wear part life by 3x, with energy consumption 30-40% lower than ball mill systems. The expert-level auto-control system supports remote monitoring, ensuring consistent powder quality around the clock.
| Model | Table Diameter (mm) | Capacity (t/h) | Fineness (μm) | Feed (mm) | Power (kW) |
|---|---|---|---|---|---|
| LM130K | 1300 | 10-28 | 170-40 | ≤38 | 200 |
| LM170K | 1700 | 18-48 | 170-40 | ≤42 | 400 |
| LM220K | 2200 | 36-105 | 170-45 | ≤50 | 800 |
| LM280K | 2800 | 50-170 | 170-45 | ≤50 | 1250 |
Based on extensive field testing and customer feedback in the titanium alloy powder sector, we highly recommend the SCM1250 Ultrafine Mill for manufacturers targeting the high-value 325-2500 mesh range. With a capacity of 2.5-14 t/h and main power of 185kW, this model offers the ideal balance between throughput and fineness control. Its vertical turbine classifier ensures that 100% of the product passes the target mesh without coarse particle contamination—a critical requirement for aerospace-grade Ti-6Al-4V powders. The intelligent control system automatically adjusts grinding parameters based on real-time fineness feedback, reducing operator intervention and ensuring batch-to-batch consistency.
For customers requiring even higher throughput, the SCM1680 (5-25 t/h, 315kW) is available for large-scale industrial production lines. Both models feature the eco-friendly pulse dust collection system and soundproof design that meet stringent environmental regulations.

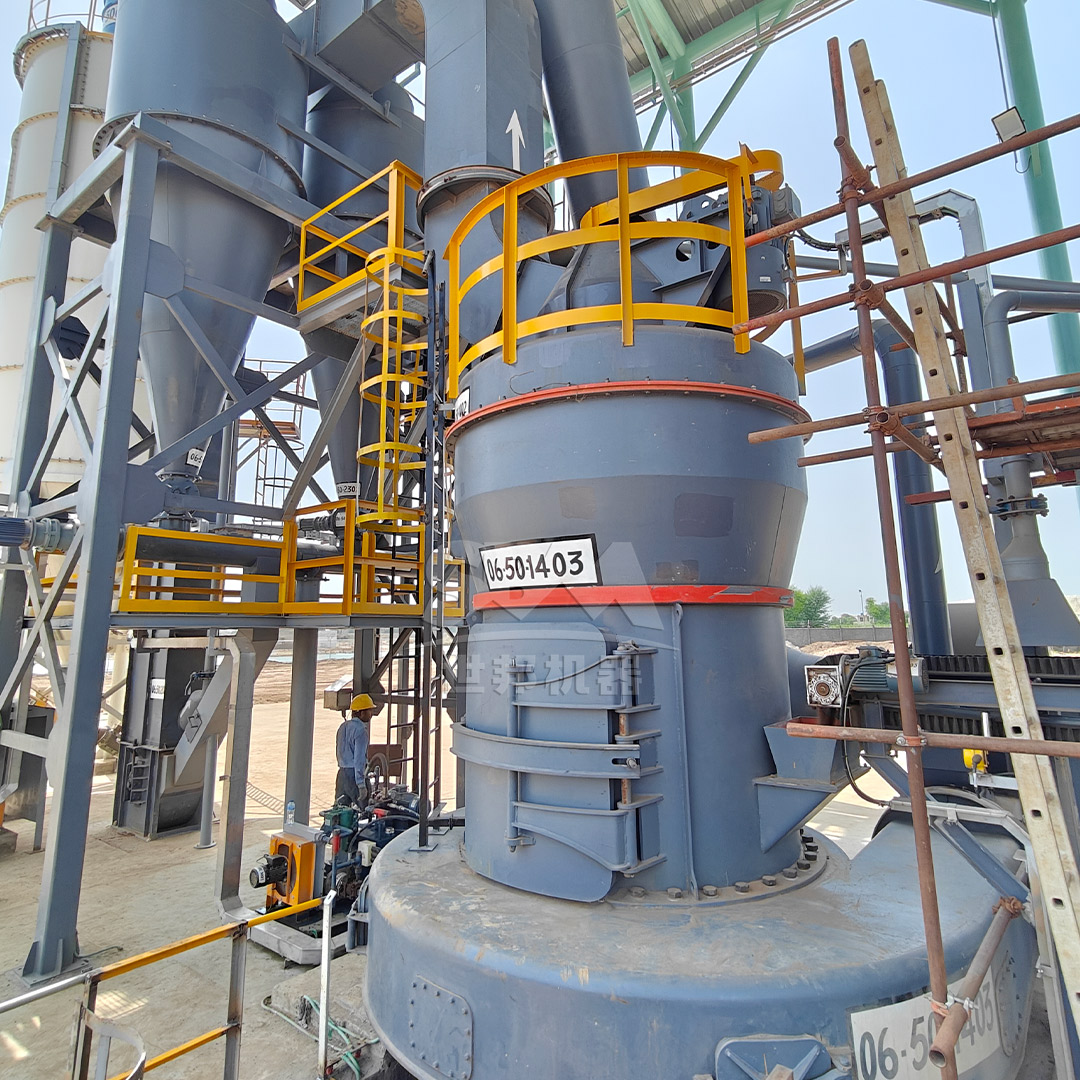

High-quality titanium powder production is not only about grinding—classification and handling are equally important. The MRN Pendulum Mill series offers thin oil lubrication systems for maintenance-free operation, combined with efficient square-pipe collectors that reduce airflow resistance. Its pulse dust collector ensures automatic, eco-friendly powder recovery. The MB5X98 model (2.7-6.5 t/h) is particularly suitable for smaller titanium powder operations, while the MB5X298 (48-83 t/h) serves large-scale facilities.
For operators looking to maximize plant efficiency, the LM-Y Vertical Pre-grinding Roller Mill can be integrated upstream of final grinding stages. This machine uses bed grinding principles to achieve 30-50% power savings compared to traditional ball mills. The LM150Y (280kW, 6-10 t/h) is ideal for pre-processing titanium sponge or coarse turnings before final ultrafine grinding, reducing the load on main mills and increasing overall line capacity.
Producing high-quality titanium alloy powders requires careful selection of grinding and classification equipment that balances fineness, capacity, energy efficiency, and product consistency. From the robust SCM Ultrafine Mill for premium fine powders to the high-capacity LM Vertical Roller Mill for large-scale operations, our comprehensive range of mills covers every stage of the production process. By integrating intelligent control systems, durable wear components, and eco-friendly designs, these machines enable titanium powder manufacturers to meet the most demanding specifications for additive manufacturing, aerospace, and medical applications. Contact our engineering team today to discuss your specific titanium alloy powder requirements and discover the optimal equipment configuration for your facility.
