In modern industrial applications, particularly in the metallurgy, energy, and chemical sectors, the production of high-quality coal powder is a critical prerequisite for efficient powder injection equipment. The performance of downstream processes such as blast furnace injection (BFI) and rotary kiln injection is directly dependent on the fineness, moisture content, and uniformity of the pulverized coal. Selecting the right grinding equipment is not merely a matter of capacity; it involves a comprehensive analysis of feed characteristics, target fineness, energy efficiency, and operational reliability. This article provides a professional guide to the key machines used in coal powder production lines, offering insights into their selection criteria and highlighting advanced solutions that meet the rigorous demands of modern powder injection systems.
Coal powder used for injection must meet strict quality standards. For blast furnace injection, the typical fineness is in the range of 200 mesh (74 μm), with a specific surface area that ensures rapid combustion in the tuyere zone. The moisture content is generally kept below 1-2% to prevent clogging and ensure stable pneumatic transport. The grinding system must therefore be capable of fine grinding, drying, and classifying in a single, continuous process. The selection of equipment is heavily influenced by the initial feed size and the required throughput.

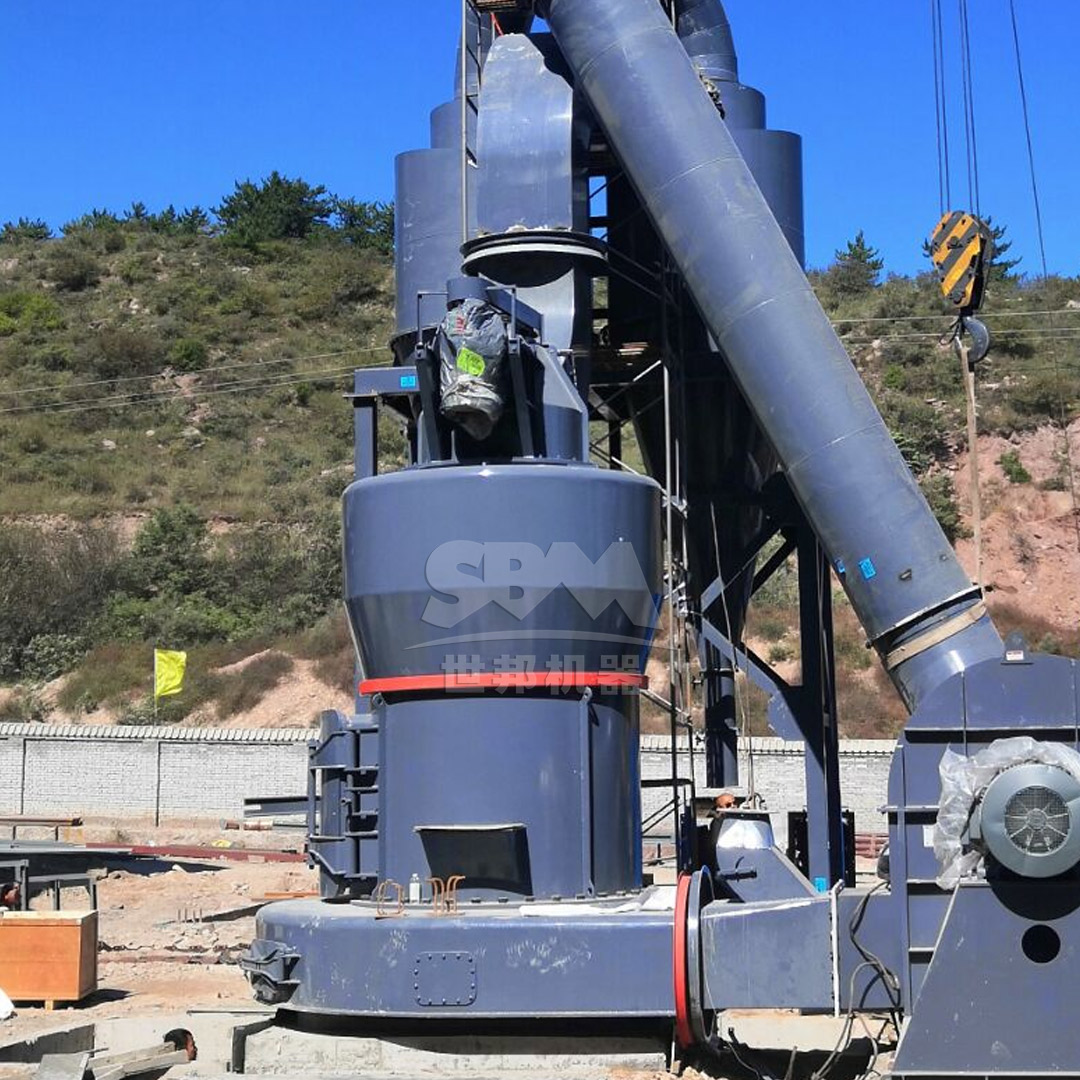

A typical coal powder production line consists of a crushing stage, a grinding stage, a drying stage, and a classifying stage, often integrated within the same machine. The primary piece of equipment that determines the quality and efficiency of the entire line is the grinding mill. Among the various technologies available, vertical roller mills and high-efficiency trapezium mills have become the industry standard due to their superior energy efficiency and drying capacity.
For large-scale coal injection projects requiring capacities from 10 to 250 tons per hour, the Vertical Roller Mill (VRM) is the most suitable choice. Its integrated design combines grinding, drying, and classification, which significantly reduces the system footprint and infrastructure costs. The LM Series Vertical Roller Mill is a prime example of this technology, featuring an intelligent control system and a non-contact design between rollers and table that minimizes wear and extends the service life of wear parts. The LM80M to LM280M Vertical Coal Mill Series are specifically engineered for pulverized coal applications. With capacities ranging from 3 to 90 t/h and a fineness adjustment range (R0.08), these mills utilize hot air circulation to dry high-moisture coals directly inside the grinding chamber, achieving an energy consumption saving of 30-40% compared to traditional ball mill systems. This makes them an ideal choice for large steel plants and thermal power stations.
For applications requiring an exceptionally fine product, such as ultra-fine coal powder for advanced injection techniques, the mill must deliver fineness down to 325-2500 mesh. In these cases, the SCM Series Ultrafine Mill stands out. This machine uses a three-layer grinding ring and a vertical turbine classifier to achieve precise particle size cutting without coarse powder mixing. For instance, the SCM1250 model can process coal powder at a capacity of 2.5 to 14 t/h with a fineness ranging from 325 to 2500 mesh, making it perfect for specialized industrial applications that require high specific surface area.
For medium-scale operations where the initial investment cost is a primary concern but high reliability is still non-negotiable, the European Trapezium Mill offers a compelling balance. The MTW Series is designed with an integral bevel gear drive that boasts a transmission efficiency of up to 98%, significantly reducing energy loss. Its anti-wear shovel design and optimized arc air duct further reduce maintenance costs and improve airflow efficiency. The top model, MTW215G, can handle a feed size of up to 50mm and produce a finished fineness of 10-325 mesh with a capacity of 15-45 t/h. This series is particularly well-suited for pulverized coal preparation for cement kilns and industrial boilers.
Choosing the correct machine involves matching the available raw coal characteristics with the target coal powder specifications. The following table provides a comparative analysis of the key technologies discussed, guiding engineers in their selection process.
| Machine Series | Optimal Feed Size (mm) | Fineness Range (Mesh) | Typical Capacity (t/h) | Best Application Scenario |
|---|---|---|---|---|
| LM Vertical Coal Mill | ≤50 | 30-325 (R0.08 5-20%) | 3 – 90 | Large-scale BFI, high moisture coal |
| SCM Ultrafine Mill | ≤20 | 325-2500 (5-45μm) | 0.5 – 25 | Ultra-fine coal for specialized injection |
| MTW Trapezium Mill | ≤50 | 10-325 (600-45μm) | 3 – 45 | Medium-scale industrial boilers and kilns |
| Ball Mill | ≤25 | 20-200 (800-74μm) | 0.65 – 450 | Coarse grinding, wet/dry dual purpose |
| MTM Trapezium Mill | ≤35 | 45-325 (350-45μm) | 3 – 22 | Small-medium scale, simple operation |
When evaluating a mill for coal injection, three parameters are paramount:
For clients requiring premium quality coal powder with ultra-high specific surface area for advanced injection processes, we highly recommend the SCM1250 Ultrafine Mill. Its ability to produce a consistent output of 2.5 to 14 tons per hour at a fineness of 325-2500 mesh (45-5 microns) is unmatched. The intelligent control system provides automatic finished product granularity feedback, ensuring continuous compliance with strict quality standards. The durable roller and ring design, made from special materials, extends the service life several times over, ensuring a high return on investment. Furthermore, its eco-friendly design, featuring a pulse dust collection efficiency that exceeds international standards, makes it a responsible choice for modern factories.
The selection of coal powder production equipment for powder injection is a strategic decision. Whether the goal is massive throughput for a steel mill or ultra-fine grinding for a specialized chemical process, the technology must align with the specific operational demands. The LM Series Vertical Coal Mills offer unmatched capacity and energy savings for large projects, while the MTW Series provides a robust, efficient solution for medium-scale needs. However, for applications demanding the highest quality ultra-fine powders, the SCM Series Ultrafine Mill, specifically the SCM1250, represents the pinnacle of grinding technology, ensuring that your powder injection equipment operates at peak efficiency with the best possible fuel quality.
